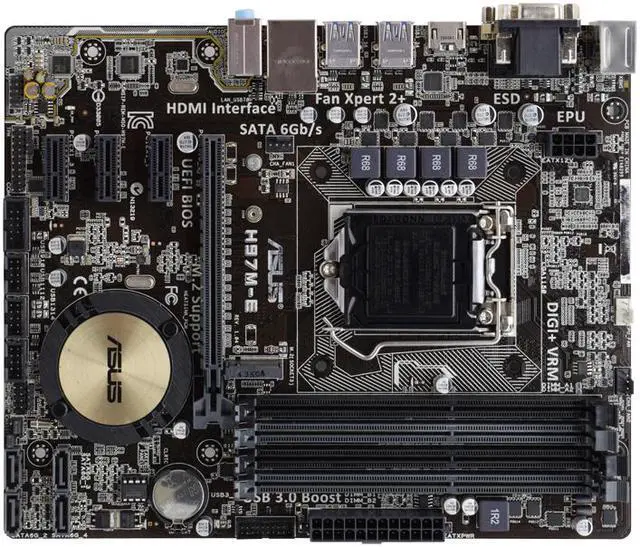

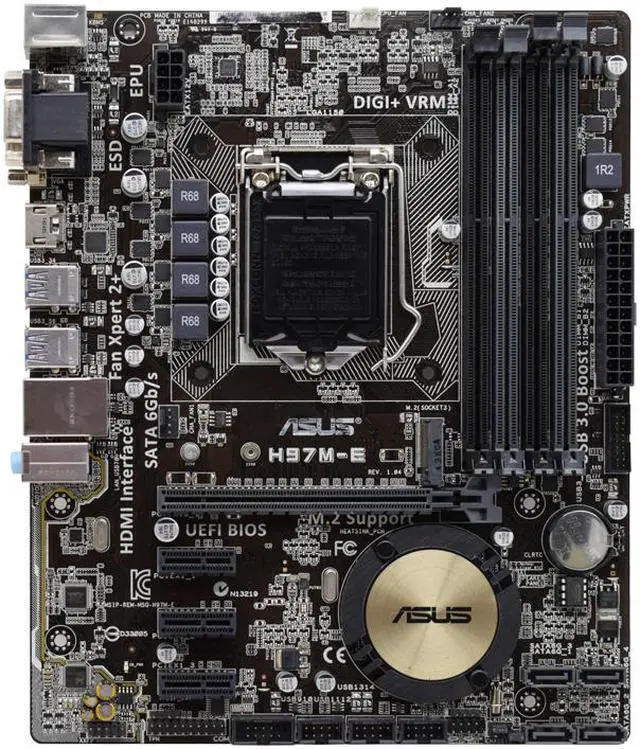

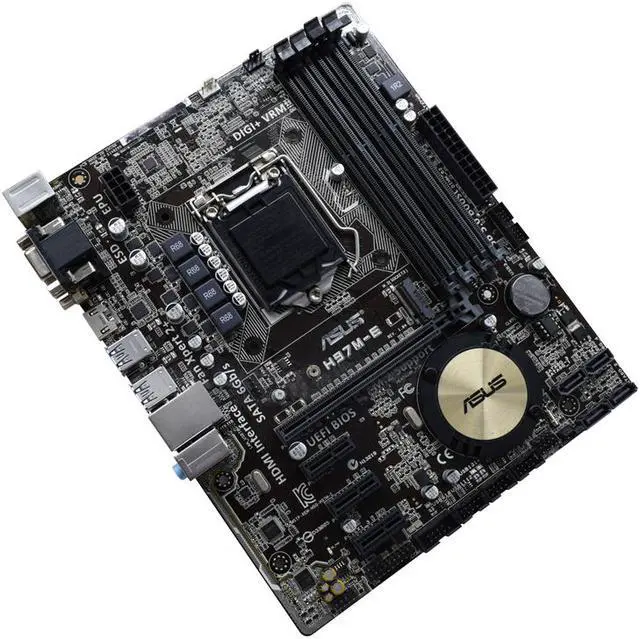

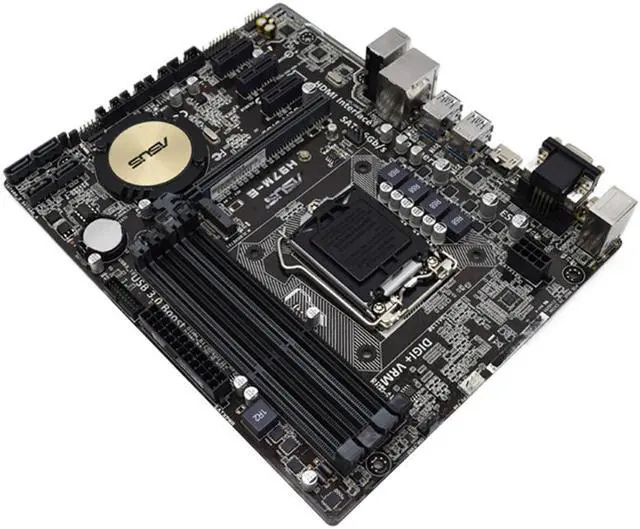

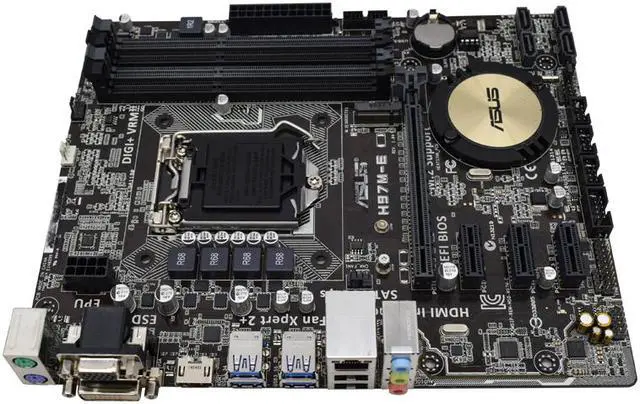

ASUS H97M-E LGA 1150 Core i7/i5/i3/Pentium/Celeron Intel H97M DDR3 HDMI SATA 6Gb/s USB 3.0 M.2 Micro ATX Intel Motherboard

Motherboard chip
Integratedchip: sound card / network card
Mainchipset: Intel h97
ChipsetDescription: Intel h97 chipset is adopted
Displaychip: CPU built-in display chip (needs CPU support)
Audiochip: integrated with Realtek alc887 8-channel audio chip
NICchip: on board Intel i218v Gigabit NIC Processor specifications
CPUtype: 4th Gen Core i7 / i5 / I3 / Pentium / Celeron
CPUslot: LGA 1150 Memory specification
Memorytype: 4 ×
DDR3DIMMMaximummemorycapacity: 16GB
MemoryDescription: support dual channel DDR3 1600 / 1333mhz memory Storage expansion
PCI-Estandard: PCI-E 3.0
PCI-Eslot: 1 × PCI-E x16 graphics card slot
PCIslot: 3 × PCI slot
Storageinterface: 1 × m. 2 interface, 6 × SATA III interface I / O interface
USBinterface: 8 × USB 2.0 interface (4 built-in + 6 backplane), 6 × USB 3.0 interface (2 built-in + 2 backplane)
Videointerface: 1 × VGA interface, 1 × DVI interface, 1 × HDMI interface
Powerinterface: one 8-pin, one 24 pin power interface

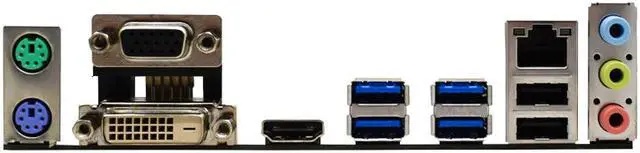

Otherinterfaces: 1 × RJ45 network interface, audio interface, 1 × PS / 2 keyboard and mouse universal interface Plate type
Motherboardtype: Micro
ATXOveralldimension: 24.4 × 19.8 cm Software management
BIOSperformance: 64 MB flash ROM, UEFI AMI BIOS, PNP, dmi 2.7, wfm 2.0, SM BIOS 2.8, ACPI 5.0, multi language BIOS, ASUS EZ flash 2, ASUS crashfree BIOS 3, favorites, quick notes, history, F12 screen capture, F3 shortcut key, memory SPD information Other parameters
Powersupplymode: four phase
Overclockingfunction: support
Raidfunction: support RAID 0, 1, 5, 10
Otherfeatures: support Windows 8.1 /8/7
