ASUS K8N-DL Extended ATX Server Motherboard Dual 940 NVIDIA nForce4 Professional

(71) Write a Review

Dual 940
NVIDIA nForce4 Professional
6 x 184Pin

Overview

Specs

Reviews (71)

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	K8N-DL

Supported CPU
CPU Socket Type	Dual 940
CPU Type	Dual AMD Opteron

Chipsets
North Bridge	NVIDIA nForce4 Professional

Memory
Number of DDR Slots	6 x 184Pin
DDR Standard	DDR 400 (PC 3200)
Maximum Memory Supported	24GB
Channel Supported	Dual Channel
ECC Supported	Yes
Registered	Yes

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

Storage Devices
SATA	4 x SATA 3.0Gb/s
SATA RAID	NV RAID 0/1/0+1 JBOD
Additional RAID Controller	Sil 3114

Onboard Audio
Audio Chipset	Realtek ALC850
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Broadcom BCM5751
LAN Speed	10/100/1000Mbps
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	2
COM	1
LPT	1
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Onboard Ports
Onboard USB	3 x USB 2.0
Onboard 1394	1 x 1394a

Features
Features	Onboard: 6 x fans; 1 x SMbus; 1 x Chassis Instruction Environment: Operation temperature:10? ~ 35?; No operation humidity:20% ~ 90% (No condensing)

Dimensions
Form Factor	Extended ATX
Dimensions (W x L)	12.0" x 10.5"

Packaging

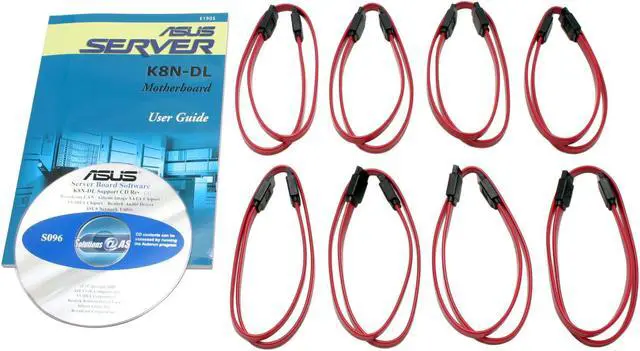

Package Contents	K8N-DL User Manual Driver Disk Rear I/O Panel Shield 2 x IDE Cable 8 x SATA Cable 4 x Power Cable FDD Cable LPT and Game/MIDI Bracket

Additional Information
First Listed on Newegg	April 22, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-739-3777
Support Website
