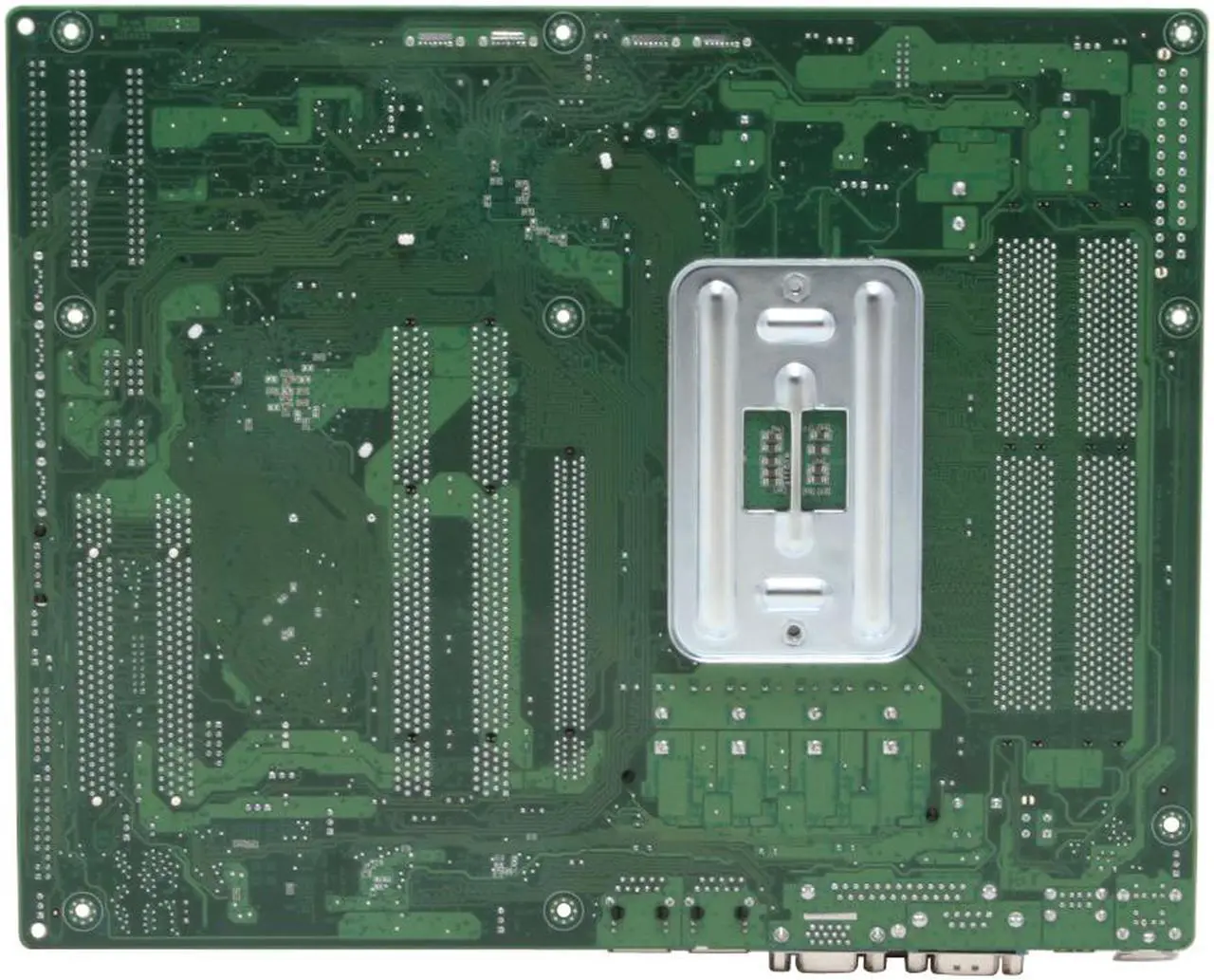

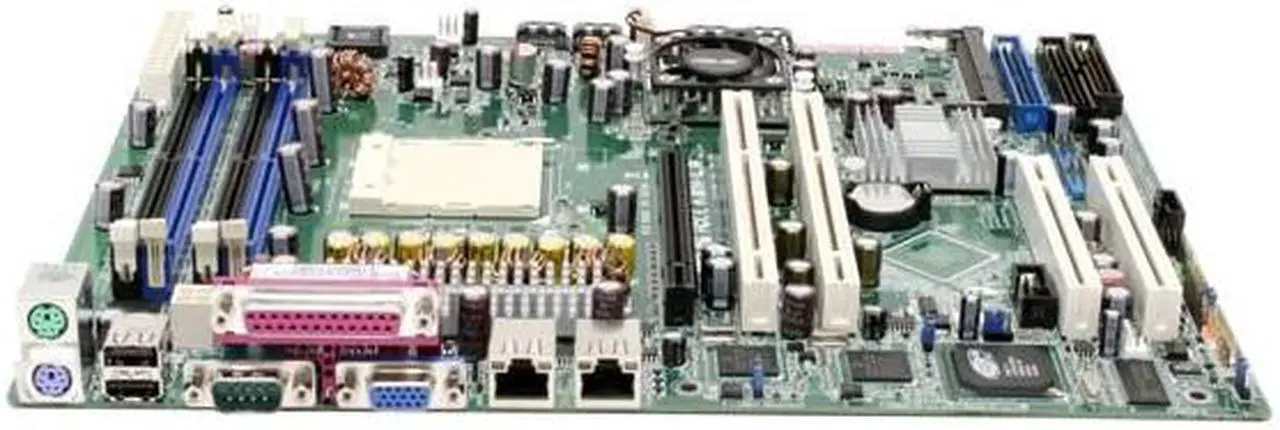

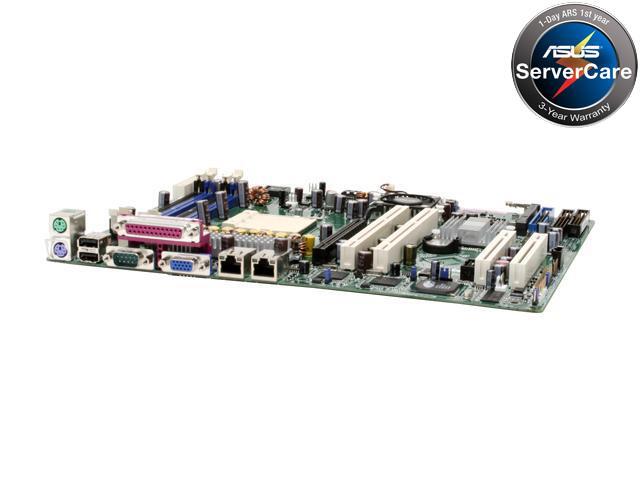

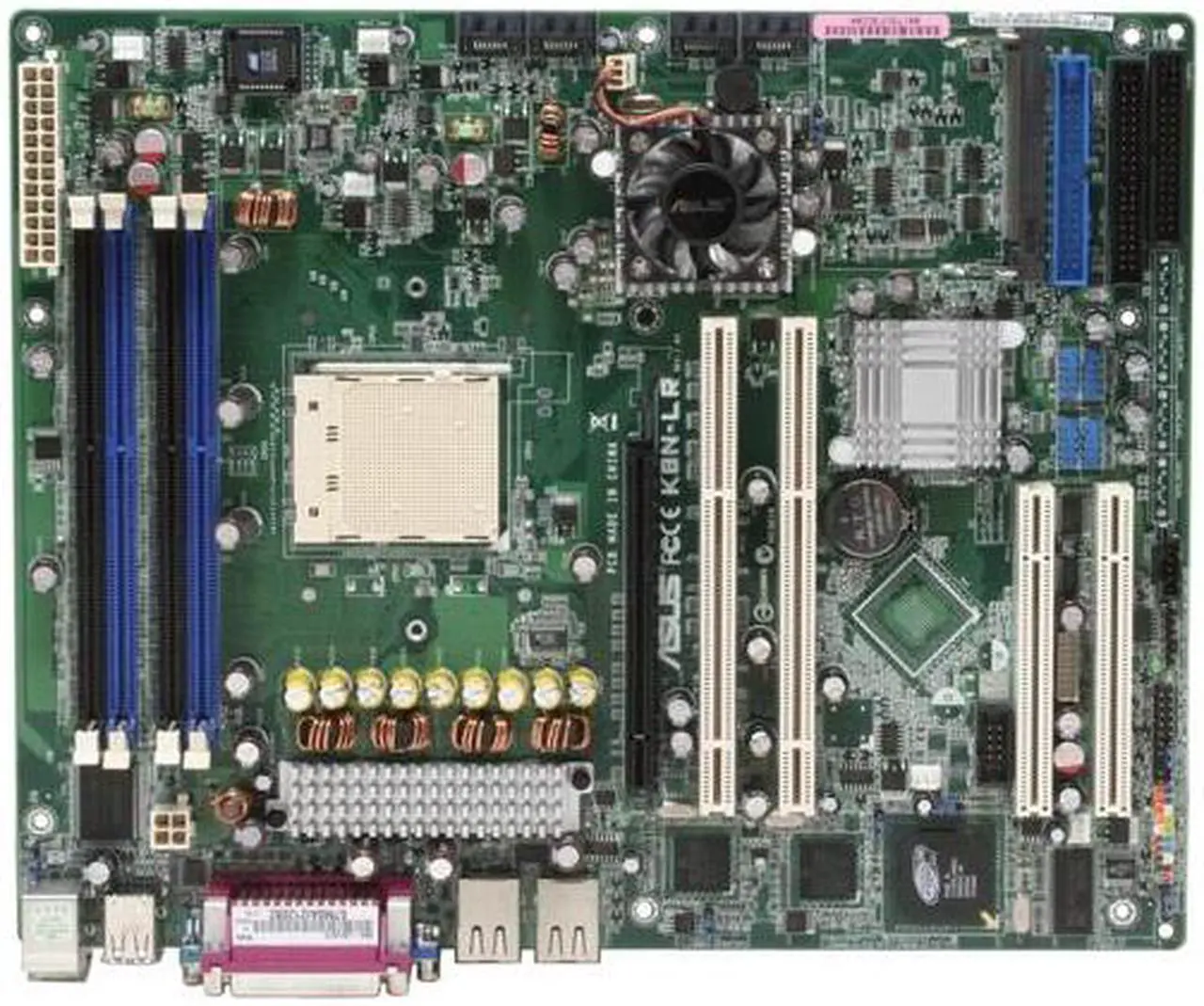

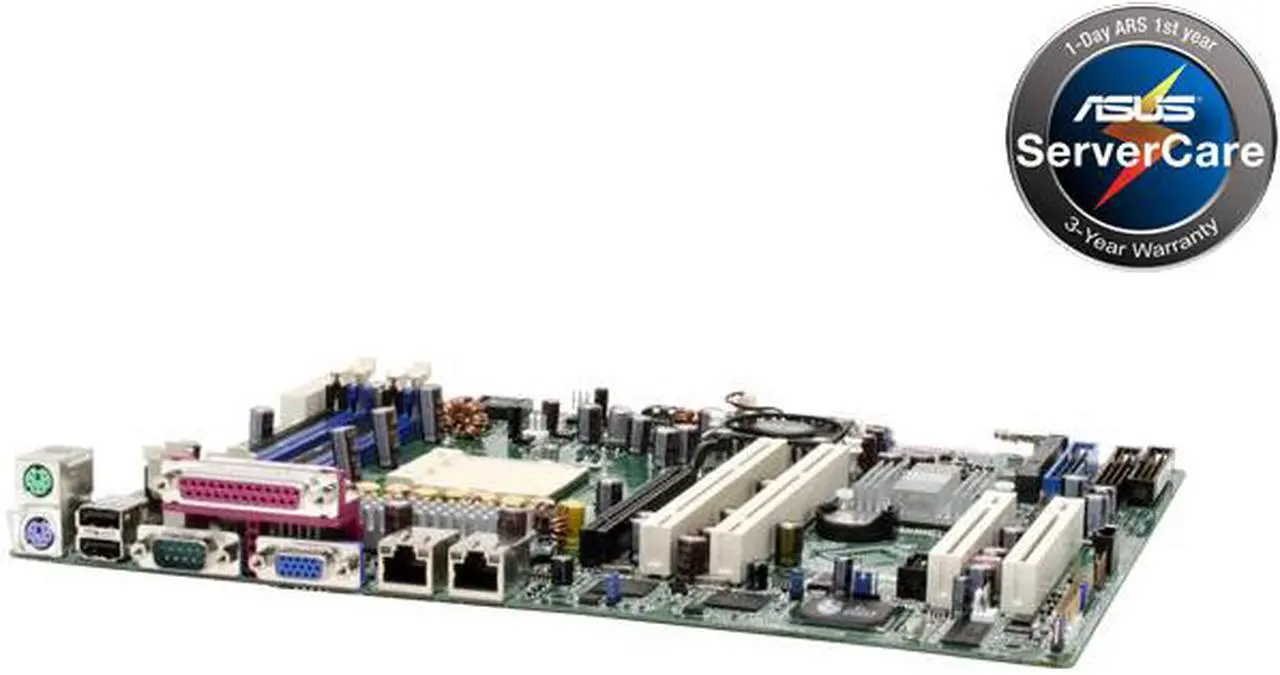

ASUS K8N-LR ATX Server Motherboard 939 NVIDIA nForce4 SLI
- 939
- NVIDIA nForce4 SLI
- 4 x 184Pin
Specs
Reviews (19)
Learn more about the ASUS K8N-LR
| Brand | ASUS |
|---|---|
| Model | K8N-LR |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | AMD Opteron |
| North Bridge | NVIDIA nForce4 SLI |
|---|
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 400 (PC 3200) |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI-E x 16 (x8 link) |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x Mini PCI socket for ASMB2 card |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Broadcom BCM5721 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5721 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

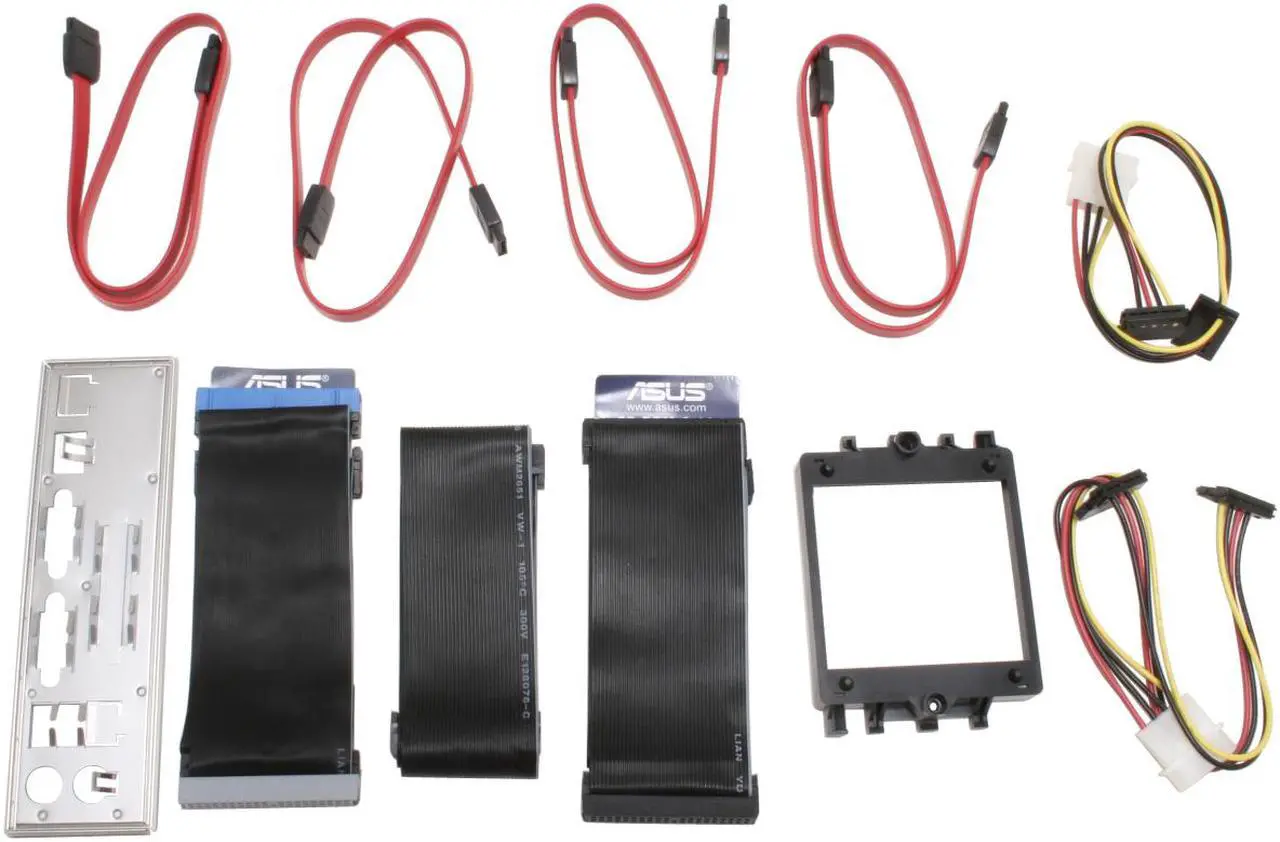

| Package Contents | K8N-LR Rear I/O Panel Shield User Manual Driver Disk 2 x IDE/PATA Cable FDD Cable 4 x SATA Cable CPU Clip |
|---|
| Date First Available | February 08, 2007 |
|---|
