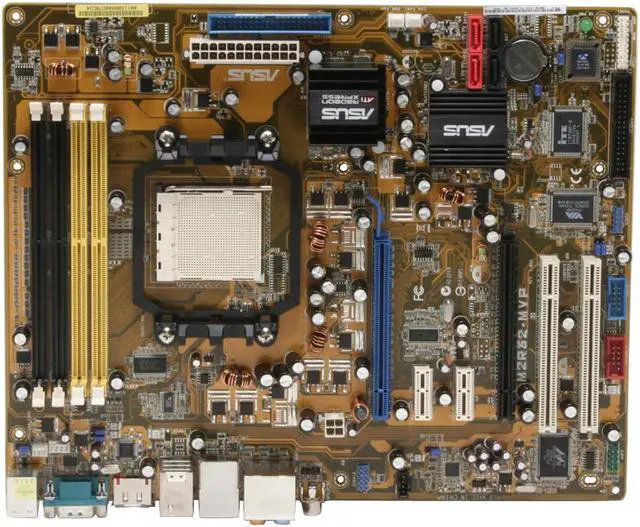

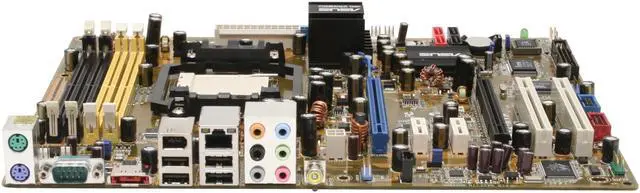

ASUS M2R32-MVP AM2+/AM2 AMD 580X CrossFire ATX AMD Motherboard

OPEN BOX Product Type
  • AMD 580X CrossFire
  • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Please note that this product is non-returnable and non-refundable.
Specs

Learn more about the ASUS M2R32-MVP

Model
Brand ASUS
Model M2R32-MVP
Supported CPU
CPU Socket Type AM2+/AM2
CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
FSB 1000 MHz
Chipsets
Chipset AMD 580X CrossFire
South Bridge ATI SB600
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/0+1
Additional RAID Controller JMicron 360 SATA controller
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset ADI 1988A
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8001
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connectors support 6 ports
Onboard 1394 1 x 1394a connector supports 1 port
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
First Listed on Newegg August 05, 2008
