    ASUS M3A AM2+/AM2 AMD 770 ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD 770
    • Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
    • DDR2 1066
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASUS M3A

    Model
    Brand ASUS
    Model M3A
    Supported CPU
    CPU Socket Type AM2+/AM2
    CPU Type Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2
    FSB 2600 MHz
    Chipsets
    Chipset AMD 770
    South Bridge ATI SB600
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1066
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express x16 1 x PCI Express x16
    PCI Express x1 2 x PCI Express x1
    PCI Slots 3 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    SATA RAID 0/1/0+1
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset Realtek ALC883
    Audio Channels 8 Channels
    Onboard LAN
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x COM (Serial Port) / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
    PS/2 2
    COM 1
    USB 1.1/2.0 4 x USB 2.0
    S/PDIF Out 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 6 x USB 2.0
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12" x 8.6"
    Power Pin 24 Pin
    Packaging

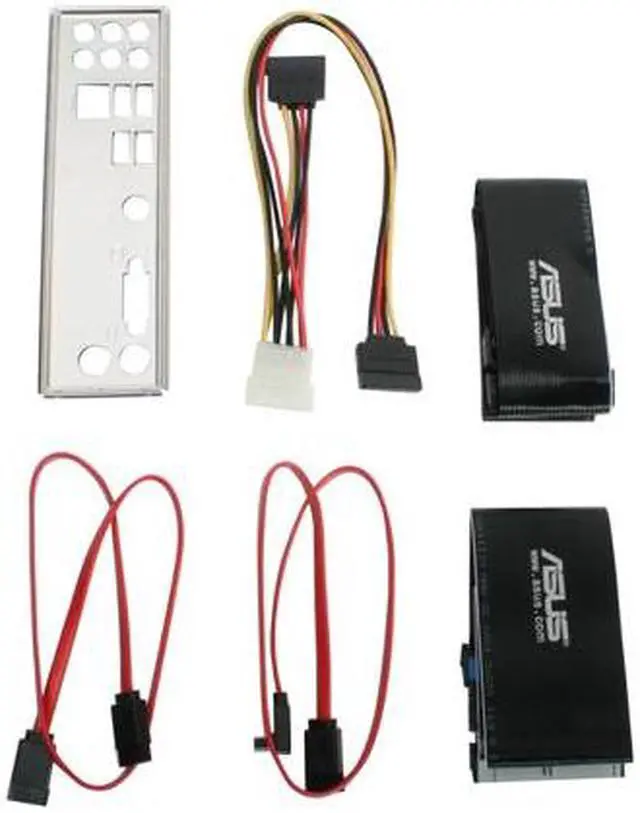

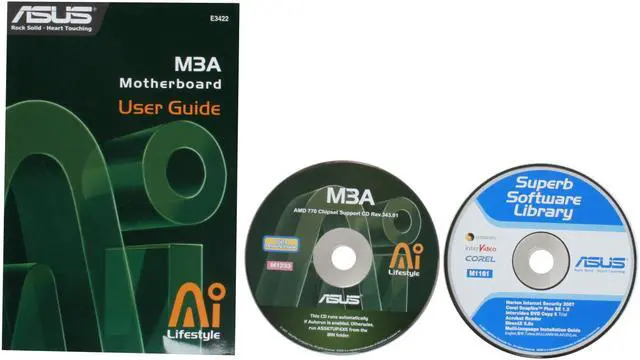

    Package Contents M3A
    Driver Disk
    User Manual
    Software Disk
    Rear I/O Panel Shield
    IDE/PATA Cable
    FDD Cable
    SATA Cable
    4-pin to SATA Power Cable
    Physical Spec
    Windows Vista Certified for Windows Vista
    Additional Information
    First Listed on Newegg July 17, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
    • CONTACT

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: 30 days
    • This item is covered by ProTek Return Policy
