    ASUS M3A32-MVP Deluxe AM2+/AM2 AMD 790FX ATX AMD Motherboard

    Used - Very Good Product Type
    Comes with motherboard and IO shield only, no additional accessories.
    • AMD 790FX
    • Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
    • DDR2 1066/800 * DDR2 1066 is supported by AM2+ CPU only
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASUS M3A32-MVP Deluxe

    Model
    Brand ASUS
    Model M3A32-MVP Deluxe
    Supported CPU
    CPU Socket Type AM2+/AM2
    CPU Type Athlon 64 FX / Athlon 64 X2 / Phenom / Phenom FX
    FSB 2600 MHz
    Chipsets
    Chipset AMD 790FX
    South Bridge AMD SB600
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1066/800
    * DDR2 1066 is supported by AM2+ CPU only
    Maximum Memory Supported 8GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 4 x PCIe x16 with ATI CrossFireX support, @ dual x16; tripple x16 / x8 / x8; or quad x8 modes
    Support PCIe 2.0 / 1.0 Architecture
    PCI Slots 2 x PCI Slots
    Storage Devices
    PATA 1 x ATA100 2 Dev. Max
    SATA RAID 0/1
    Additional RAID Controller Marvell 6121 and 6111
    Onboard Video
    Onboard Video Chipset None
    Onboard Audio
    Audio Chipset ADI AD1988
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Marvel PCIe Gigabit LAN controller featuring AI NET 2
    Max LAN Speed 1Gbps
    Rear Panel Ports
    Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 6 x Audio Jacks / 6 x USB 2.0/1.1
    PS/2 1
    USB 1.1/2.0 6 x USB 2.0
    IEEE 1394 1 x IEEE 1394a
    eSATA 1 x eSATA 3Gb/s
    S/PDIF Out 1 x Optical, 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 2 x USB connectors support additional 4 USB ports
    Onboard 1394 1 x 1394a
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Packaging

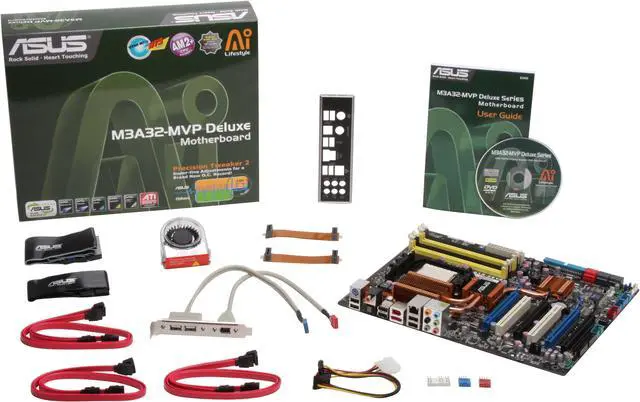

    Package Contents M3A32-MVP Deluxe
    ASUS CrossFire Bridge Cable
    UltraDMA 133/100/66 cable
    FDD cable
    SATA cables
    SATA power cables
    Q-Shield
    User's manual
    1 x Multi-function module (IEEE 1394 + USB2.0)
    3 in 1 Q-connector
    Optional Fan for Water-Cooling or Passive-Cooling only
    Additional Information
    Date First Available March 01, 2019
