AMD 890GX
Phenom II / Athlon II / Sempron 100 Series AMD 140W CPU Support
Any questions? Our AI beta will help you find out quickly.
Try me now

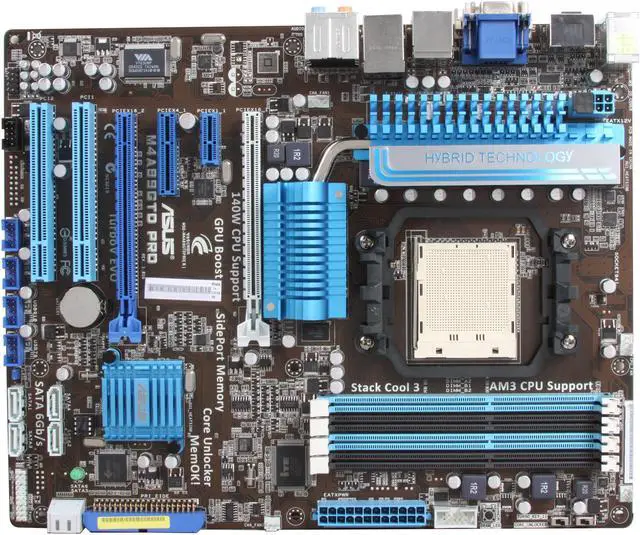

Learn more about the ASUS M4A89GTD PRO
Model
Brand
ASUS
Model
M4A89GTD PRO
Supported CPU
CPU Socket Type
AM3
CPU Type
Phenom II / Athlon II / Sempron 100 Series AMD 140W CPU Support
Chipsets
Chipset
AMD 890GX
South Bridge
AMD SB850
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 2000(O.C.)/1333/1066
Maximum Memory Supported
16GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 x PCI Express 2.0 x16 support ATI CrossFireX technology(@dual x8 speed)
PCI Express x4
1 x PCI Express x4
PCI Express x1
1 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
SATA RAID
0/1/5/10
Onboard Video
Onboard Video Chipset
ATI Radeon HD 4290
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111E
Max LAN Speed
1Gbps

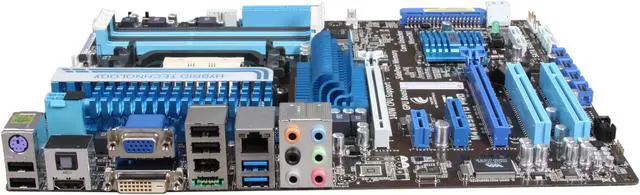

Rear Panel Ports
Back I/O Ports
1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 6 x Audio Jacks / 6 x USB 2.0/1.1
PS/2
1
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
4 x USB connectors support additional 8 USB ports
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Core Unlocker Turbo Key II ASUS GPU Boost TurboV EVO MemOK! CrossFireX Support Integrated ATI Radeon HD 4290 GPU 128MB DDR3 1333 sideport memory support
Additional Information
First Listed on Newegg
April 01, 2010
