Since there is one pci slot, will the 1070 fit or do i need another motherboard?

The 1070 is like any other GPU it only requires 1 PCI-E slot

Will a 1070 fit on this motherboard?

Why wouldn't it? As long as your form factor is OK with the card length

Does this mobo support 1866 DDR3 ram chips without the need of overclocking the CPU?

It shows that you will have to overclock it for 1600, 1800, 1866 and 2000

can i use an fx-6300 out of the box ? or do i have to update bios?

I used it right out of the box with no problem.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

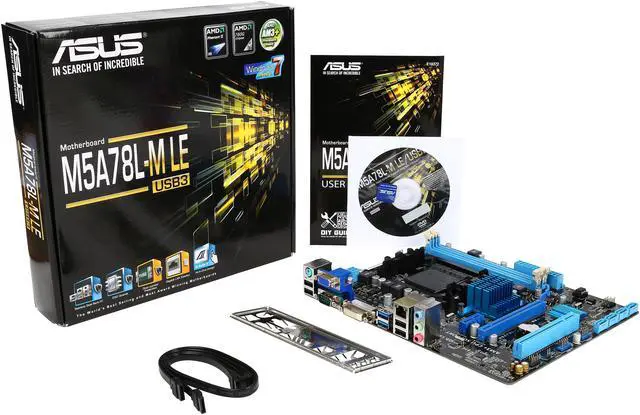

Main image of ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

100%

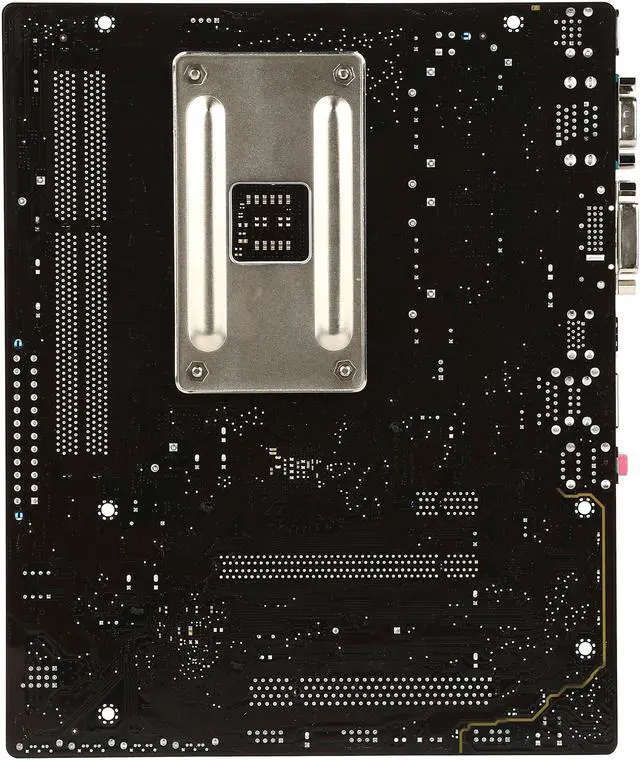

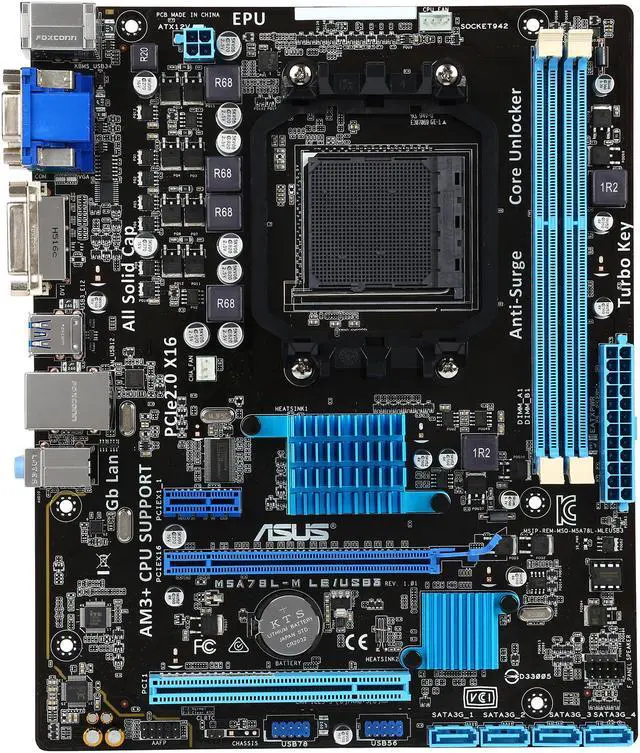

Alt view image 2 of 5 - ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

Alt view image 3 of 5 - ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

Alt view image 4 of 5 - ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

Alt view image 5 of 5 - ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

360^°

Shop All ASUS Products

ASUS M5A78L-M LE/USB3 AM3+ AMD 760G (780L)/SB710 USB 3.0 Micro ATX AMD Motherboard

(6) Write a Review

AMD 760G (780L)/SB710
Athlon Series / FX Series / Phenom II / Sempron
DDR3 1866/ 1600/ 1333/ 1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (6)

See all Q & A

Model
Brand	ASUS
Model	M5A78L-M LE/USB3

Supported CPU
CPU Socket Type	AM3+
CPU Type	Athlon Series / FX Series / Phenom II / Sempron

Chipsets
Chipset	AMD 760G (780L)/SB710

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866/ 1600/ 1333/ 1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCIe 2.0 x1
PCI Slots	1 x PCI Slot

Storage Devices
SATA RAID	0/1/10/JBOD

Onboard Video
Onboard Video Chipset	Integrated ATI Radeon HD 3000 GPU - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 2560 x 1440 @ 75 Hz Maximum shared memory of 1024 MB Hybrid CrossFireX Support 1 Supports DirectX 10 1: For Windows Vista or later versions.

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek 8111G
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
COM	1 x COM port(s)
Video Ports	1 x DVI 1 x D-Sub
RJ45	1 x LAN (RJ45) port(s)
USB 3.0	2 x USB 3.0 (blue)
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 x Audio jack(s)

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 7.8"
Power Pin	24 Pin

Features
Features	Entry-level Motherboard for 760G platform with USB3.0 solution AM3+ CPU Support Ready Core Unlocker - Unlock true Core performance intelligently Anti-Surge - Full-time Power Guardian-Make System Free From Risk ASUS EPU - System Level Energy Saving Low EMI - protect you - 50% less radiation Special Features ASUS Power Design: - ASUS EPU ASUS Exclusive Features: - Anti-Surge - Low EMI Solution ASUS Quiet Thermal Solution: - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 100% All High-quality Conductive Polymer Capacitors BIOS: 16 Mb Flash ROM, AMI BIOS , PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V3.0a Support Disc: Drivers ASUS PC Probe II ASUS Update Anti-virus software (OEM version)

Packaging
Package Contents	Accessories: User's manual I/O Shield 2 x SATA 3Gb/s cable(s)

Additional Information
First Listed on Newegg	October 23, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-739-3777
