Question 1

Will this product support a 125W Cpu (fx-8350)?

Accepted Answer

No the ASUS M5A78L-M LX3 does not support any 125W FX processor including the AMD FX 8350. Consider the Gigabyte GIGABYTE GA-78LMT-USB3 or ASRock 880GM-LE. The Gigabyte board requires some manual entry of the memory clocks and timings in the BIOS to run the RAM at its advertised specs, but when this is done it is the better of the two. I have and use both boards.

If you build an FX 8350 into a Micro ATX case, you will also need to mount a CPU heatsink/cooler onto it that is better than the one that it comes with.

Question 2

Does this motherboard work with http://www.newegg.com/Product/Product.aspx?Item=N82E16820313398 please answer fast

Accepted Answer

This motherboard will work with the following memory:
2 x DIMM, Max. 16GB, DDR3 1866(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory.

The memory you've specified is DDR3 2400.  Most of the time, faster memory such this will work but will be derated to a slower clock speed by the motherboard.  In other words, you're probably just spending more money than you need to.

Question 3

will this board support the FX 8320 125 watt CPU?

Accepted Answer

No it only goes up to 95w does support it but you would rather use Asus M5a99x evo or sabertooth. which i use with the fx 8320 8 core it is 125w...

Question 4

is it work with AMD 6 CORE processor?

Accepted Answer

It will, the caveat is a 95watt CPU.  I had mistakenly bought the 125w 8-core fx8300.  I ended up buying the fx-6300 6-core to install and that appears to work.

Asus's site does show it's cpu support list if you go there search for the model and go to the support page for the model.

Question 5

size of the board?

Accepted Answer

9.6 by 7.4 inches - Micro ATX form factor

Question 6

What is the best graphics card that i can get for about 200 dollars ?

Accepted Answer

The radeon 7870 is one that is usually marked around that price. It is better than the current gen consoles (One and PS4). You can take your pick between the brands, I prefer HIS because their cards tend not to have issues overheating in my experience. http://www.newegg.com/Product/Product.aspx?Item=N82E16814161411

Question 7

Will this mb support 4 tb hard drive?

Accepted Answer

Yes it can easy for SATA but for SSD make sure it's on the Approved Products List on ASUS website:  ASUS dot com

Question 8

Is the CPU power connection a P4 connector?

Accepted Answer

Yes, there's a 4-pin P4 connector top-left of the CPU.

CPU Socket Type	AM3+
CPU Type	FX/Phenom II/Athlon II/Sempron 100 (Support up to 95W)
FSB	5.20 GT/s

Number of Memory Slots	2x240pin
Memory Standard	DDR3 1866/1600/1333/1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

LAN Chipset	Qualcomm Atheros 8161/8171
Max LAN Speed	1Gbps

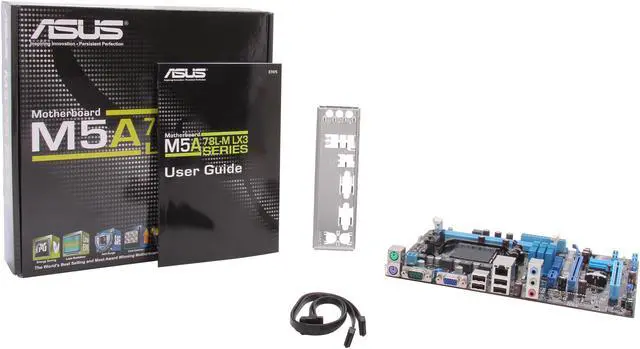

Asus M5A78L-M LX3 Desktop Motherboard - AMD 760G Chipset - Socket AM3+

Learn more about the ASUS M5A78L-M LX3

Customer Reviews of the ASUS M5A78L-M LX3

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Back I/O Ports	1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/2	2
COM	1
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Onboard USB	4 x USB 2.0
Other Connectors	1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 7.4"
Power Pin	24 Pin
