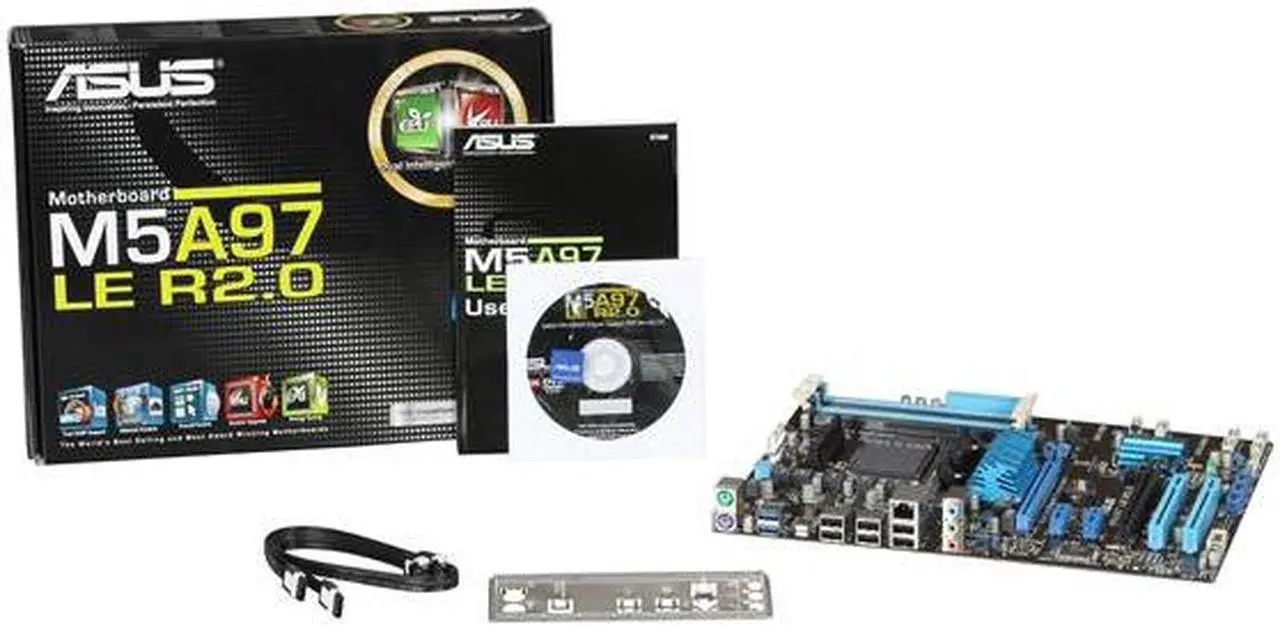

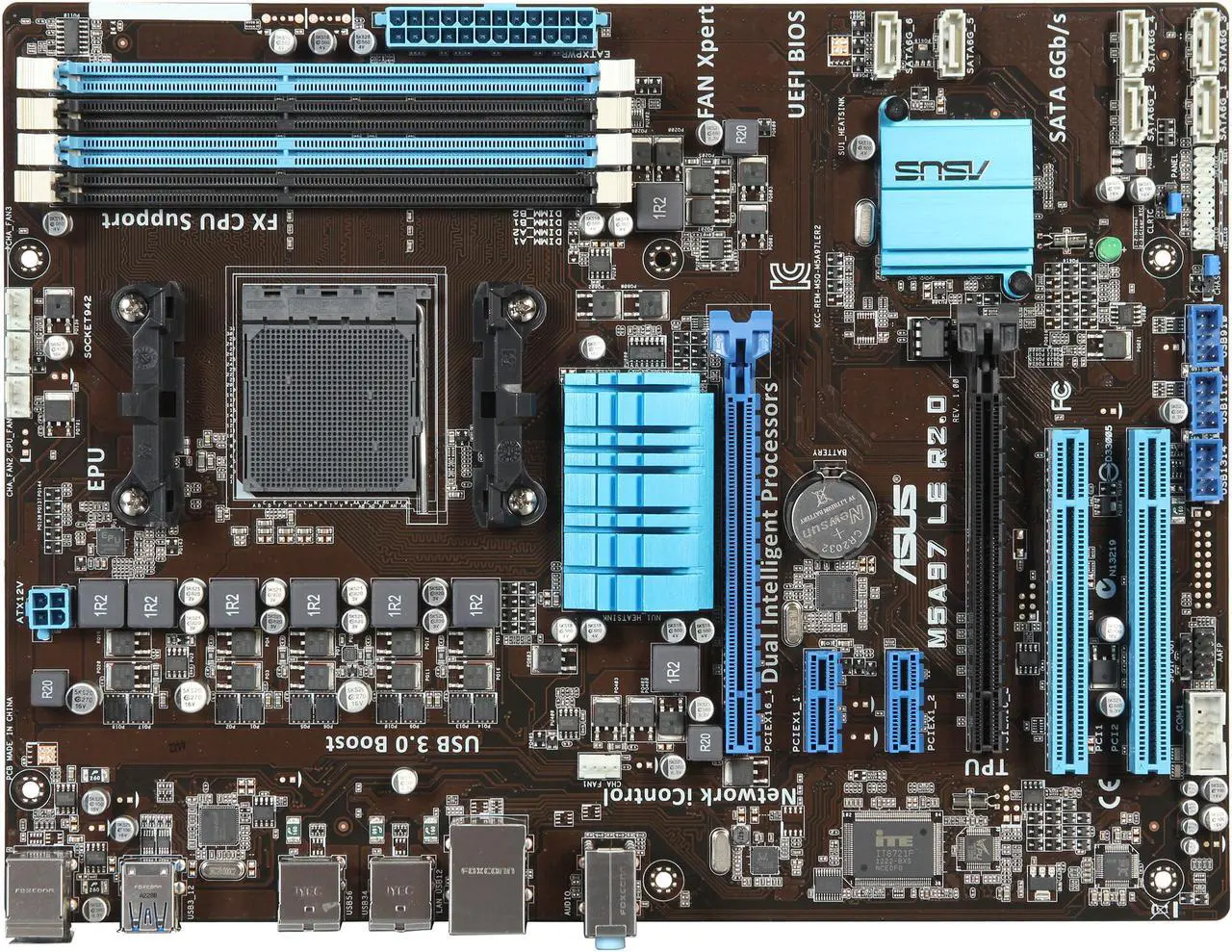

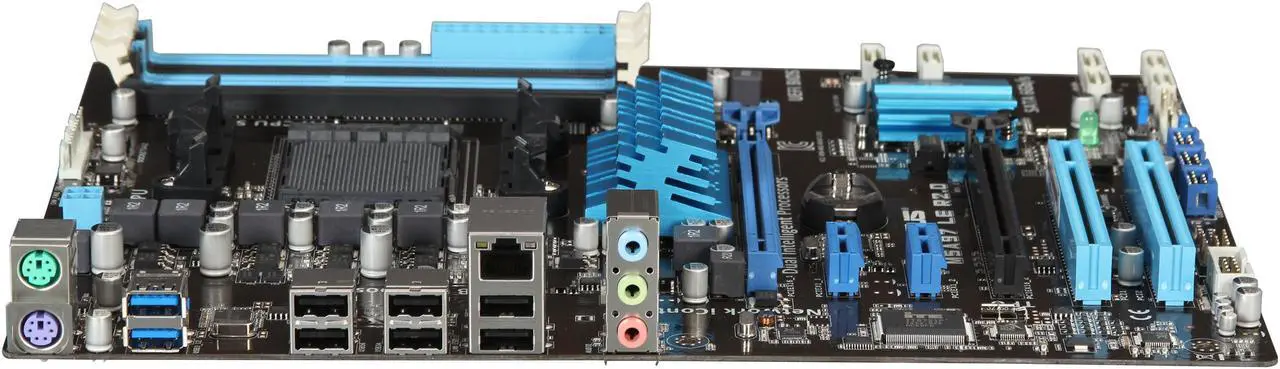

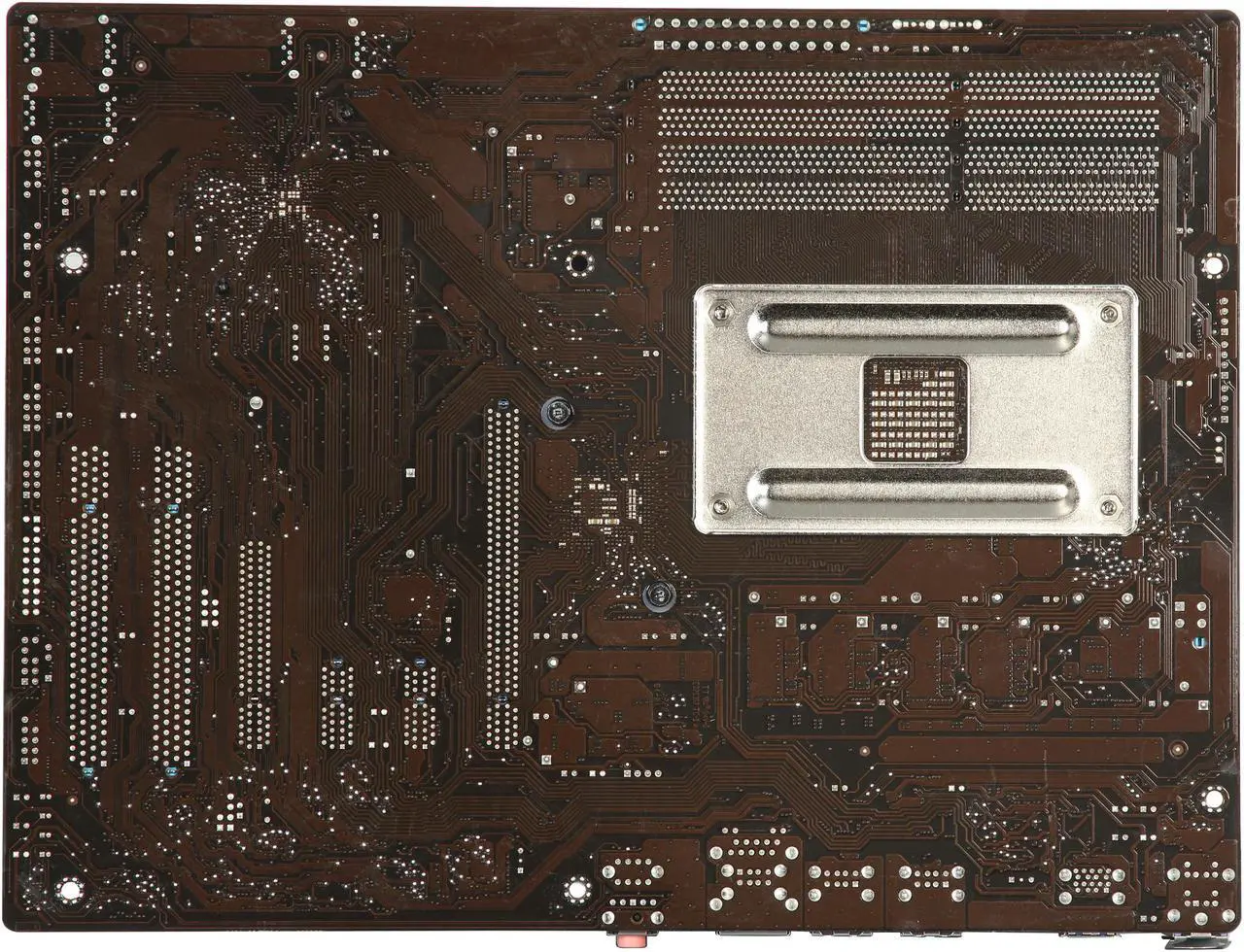

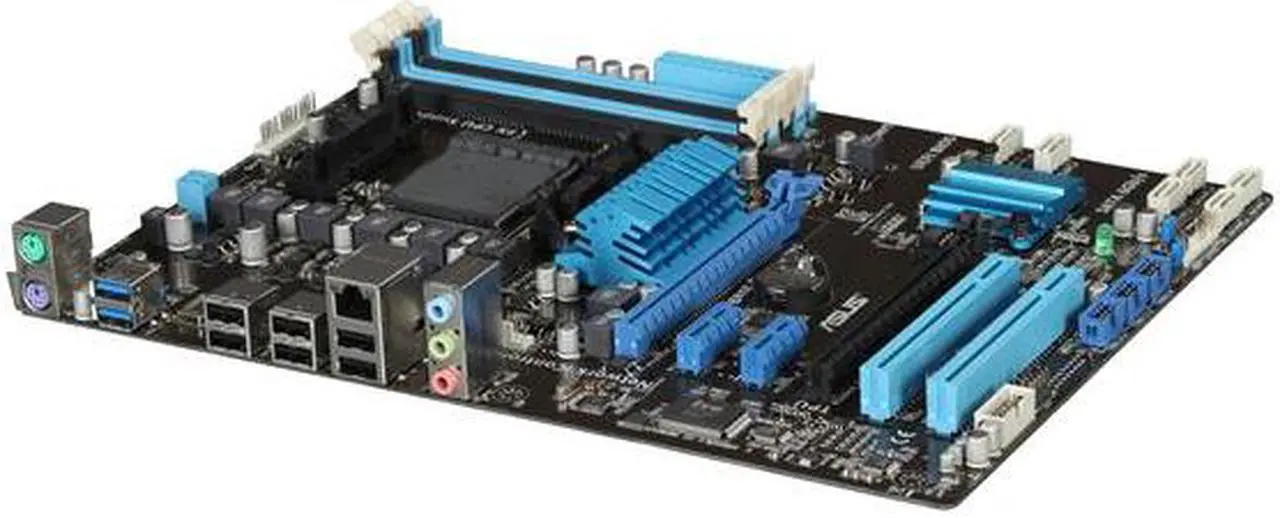

ASUS M5A97 LE R2.0 AM3+ AMD 970 + SB950 USB 3.0 ATX AMD Motherboard with UEFI BIOS

Fast Boot

Instant OS Login

ASUS has released new hardware and software designs to shorten system boot-up time to two seconds for a smoother experience that removes annoying delays under Windows 8, and even previous versions of Windows. Faster system boot and restart means Windows starts quicker and more efficiently. No more waiting around.

---

ASUS Boot Setting

Multi-Startup Options

Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PCs startup process. You can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method - either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and consistent, with no need to choose every time you power on.

AMD® Socket AM3+ for AMD® FX Series CPU up to 8-core

AMD® FX™-Series/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors (socket AM3+/AM3)
M5A97 LE R2.0 supports AMD® AM3+ / AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1866 memory support and accelerates data transfer rate up to 5200MTps via HyperTransport™ 3.0-based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing

---

AMD® 970 Chipset

AMD® 970 Chipset is designed to support up to 4800MT HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®'s latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.

---

Quad-GPU CrossFireX Support!

Flexible Multi-GPU Solutions, Your Weapon of Choice!

AMD's CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher antialiasing, anisotropic filtering, shading and texture settings. Adjust your display configurations, experiment with the 3D settings, and check the effects with a real-time 3D-rendered previews within AMD Vision™ Engine Control Center. Dual Intelligent Processors

ASUS continues to put innovation at its forefront, launching the world's first Dual Intelligent Processors technology. This exclusive design consists of the EPU (Energy Processing Unit), which automatically monitors power consumption system-wide to ensure efficiency, and the TPU (TurboV Processing Unit) - guaranteeing superior performance for every task, bringing users an unbeatable experience.

---

TPU

The Ultimate Turbo Processor
Unleash your performance with ASUS AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning and TurboV functions. Auto Tuning offers a friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations.

---

EPU

Energy Efficiency All Around
Tap into the world's first real-time PC power saving chip through AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! USB 3.0 Boost

Faster USB 3.0 Transmission with UASP
New ASUS USB 3.0 Boost technology supports USB Attached SCSI Protocol (UASP), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction.

• World's first USB 3.0 UASP Support – 170% faster instantly
• Complete USB 3.0 Solution – Performance boost for most USB devices
• Simple Plug & Boost – Auto detection design ensures best performance always

---

When transferring a 13.8GB movie, USB 3.0 Boost from ASUS lands an overall better-performing PC. Check out these benchmarks for more info:

---

Network iControl

Real-time Network Bandwidth Control

With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center.

---

UEFI BIOS

ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems.

ASUS Exclusive Interface
EZ Mode displays frequently-accessed info. Users can choose system performance settings and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight.

New Upgrade! Quick and Easy Info for Enhanced System Control

• F12 BIOS snapshot hotkey for sharing UEFI setup info and troubleshooting
• New F3 Shortcut for most accessed info
• ASUS DRAM Serial Presence Detect (SPD) Information for accessing memory info, detecting faulty DIMMs and helping with difficult POST situations

---

AI Suite II

One-Stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all exclusive ASUS features into one simple-to-use package. It allows users to supervise overclocking, energy management, fan speed, voltage, and sensor readings. This all-in-one software offers diverse and easy to use functions, with no need to switch back and forth between different utilities. GreenASUS and ErP Ready

The motherboard is European Union's Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

USB 3.0 Support

Experience ultra-fast data transfers at 5.0Gbps with USB 3.0 - the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.

---

SATA 6Gbps Support

AMD® SB950 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6Gbps data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.

Windows 8 Ready

With hardware driver compatibility tested and assured, ASUS provides a complete solution for Windows 8 support. Starting now, users can experience the next generation operating system on ASUS hardware, and can rest assured that they can easily upgrade once the final driver versions are released without any compatibility issues! ASUS CPU-Z

Whole New Design of CPU-Z
ASUS CPU-Z is a customized ASUS version authorized by CPUID. It has the same functionality and credibility as the original version, with a unique design. Use the whole new look of ASUS CPU-Z to truly report your CPU related information and your uniqueness.

	TurboV Adjust system performance parameters with just a few clicks.		AI Suite II One-stop Access to Innovative ASUS Features.
	Fan Xpert Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.		All Solid Capacitors Uses 100% All High-quality Conductive Polymer Capacitors.
