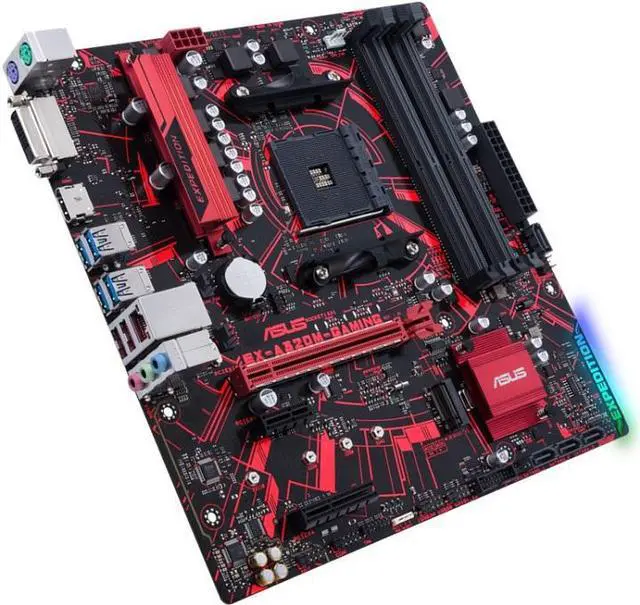

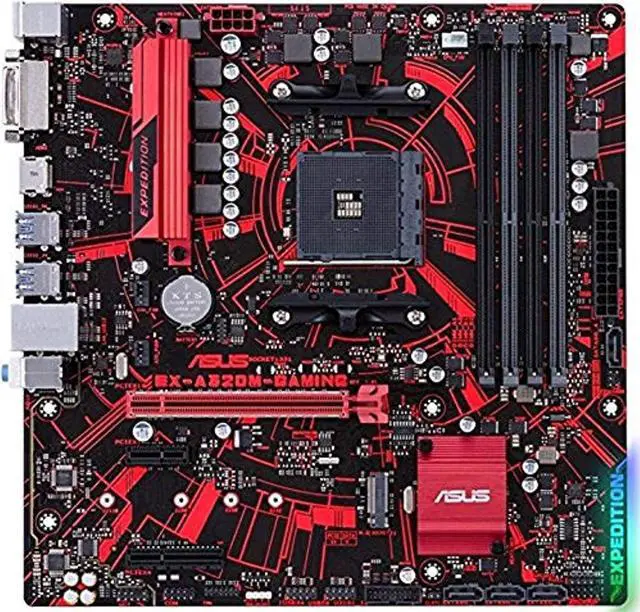

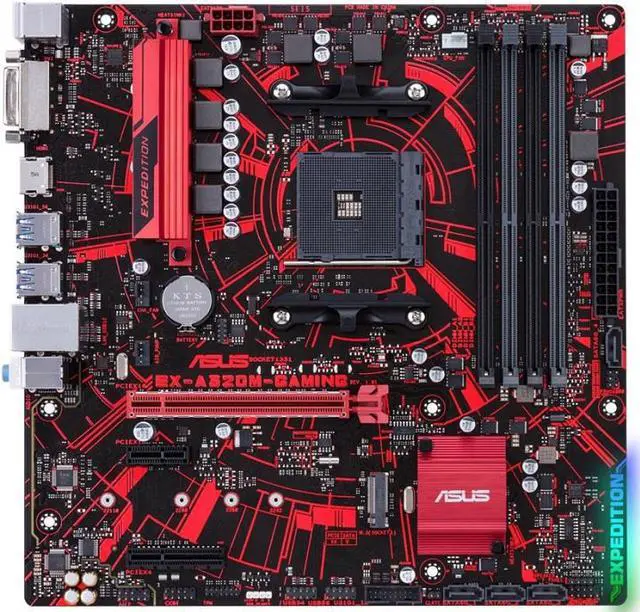

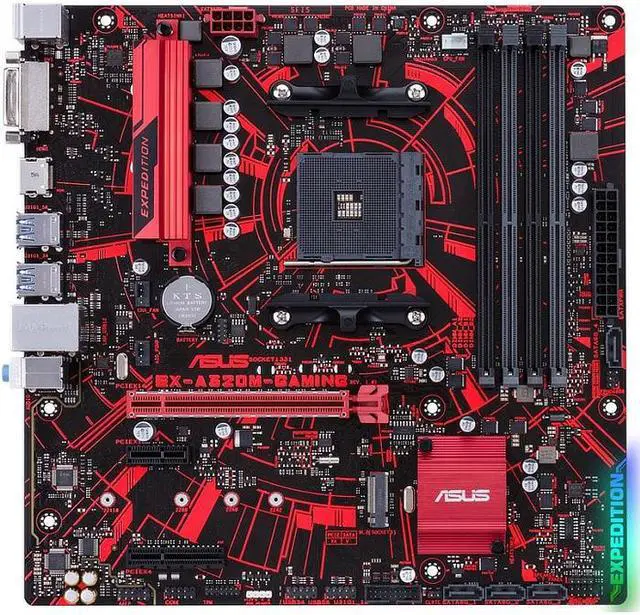

ASUS AMD EX-A320M-GAMING Socket AM4 DDR4 Micro ATX Motherboard (90MB0VG0-M0EAYM)

(1) Write a Review
  • AMD A320
  • Ryzen Series
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
    Memory

    Supported memory types: DDR4-SDRAM

    Memory slots type: DIMM

    Supported memory clock speeds: 2133, 2400, 2666 MHz

    Number of memory slots: 4
    ECC: Y

    Non-ECC: Y

    Maximum internal memory: 64 GB
    Processor

    Processor family: AMD

    Compatible processor series: AMD A, Athlon, Ryzen

    Processor socket: Socket AM4

    Maximum number of SMP processors: 1
    Internal I/O
    USB 2.0 connectors: 4
    USB 3.0 ( 3.1
    Gen 1) connectors: 2

    Number of SATA III connectors: 4
    CPU fan connector: Y

    Number of COM connectors: 1
    ATX
    Power connector (24-pin): Y

    Number of EATX power connectors: 1

    Chassis intrusion connector: Y

    Number of chassis fan connectors: 1
    TPM connector: Y
    Number of
    M. 2 (M) slots: 1

    Front panel connector: Y
    12V power connector: Y

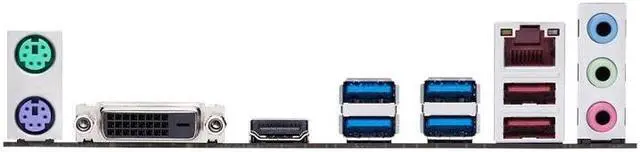

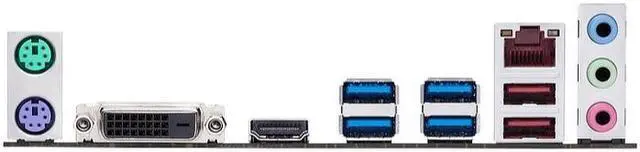

    Back panel I/O ports
    USB 2.0 ports quantity: 2
    USB 3.0 ( 3.1 Gen 1)
    Type-A ports quantity: 4

    Ethernet LAN (RJ-45) ports: 1
    PS/2 ports quantity: 2
    DVI-D ports quantity: 1
    HDMI ports quantity: 1

    Headphone outputs: 1

    Microphone in: Y
    Networking

    Ethernet LAN: Y
    LAN controller: Realtek RTL8111H

    Ethernet interface type: Gigabit Ethernet
    Performance

    Component for: PC

    Motherboard chipset family: AMD

    Motherboard chipset: AMD A320

    Motherboard form factor: micro ATX

    Audio output channels: 7.1 channels

    Audio system: Realtek ALC887

    Windows operating systems supported: Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64
    Graphics

    Maximum graphics adapter memory: 2048 MB

    Maximum resolution: 4096 x 2160 pixels

    Number of displays supported: 2
    Expansion slots
    PCI
    Express x1 slots: 1
    PCI
    Express x4 slots: 1
    PCI
    Express x16 slots: 1
    BIOS
    BIOS type: UEFI AMI
    BIOS memory size: 128 MB
    ACPI version: 6.1

    Clear CMOS jumper: Y
    Weight & dimensions

    Width: 244 mm

    Depth: 244 mm
