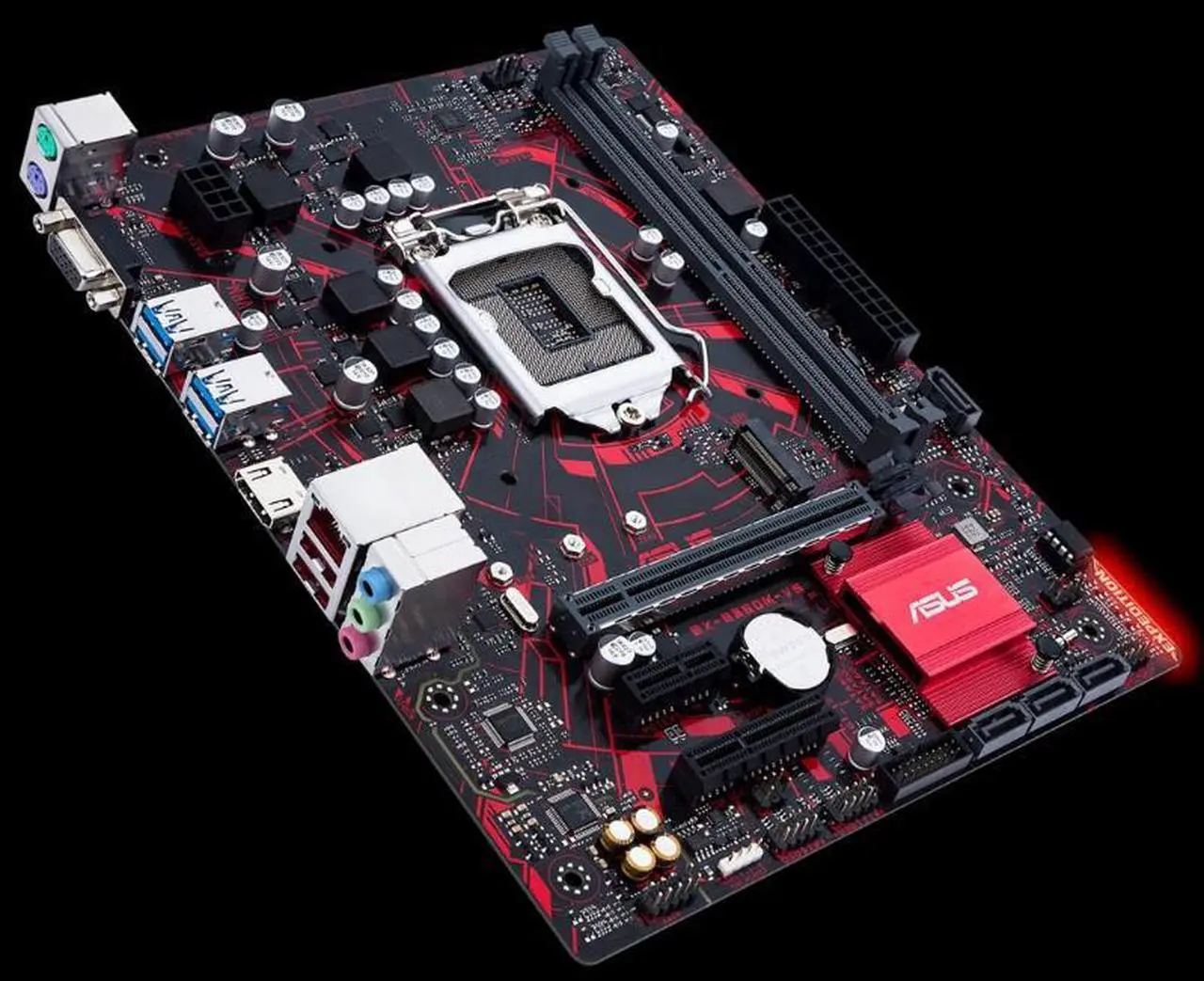

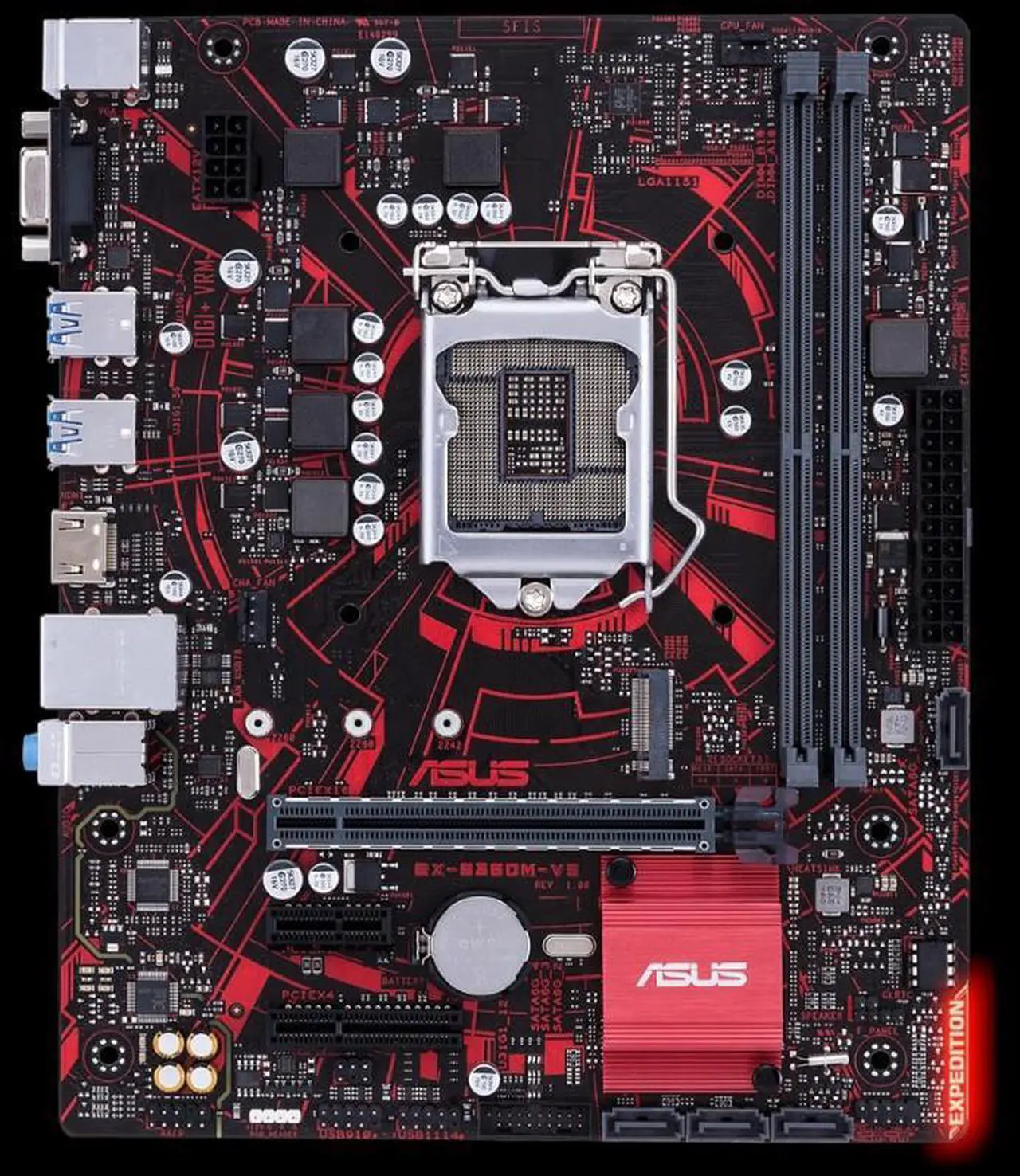

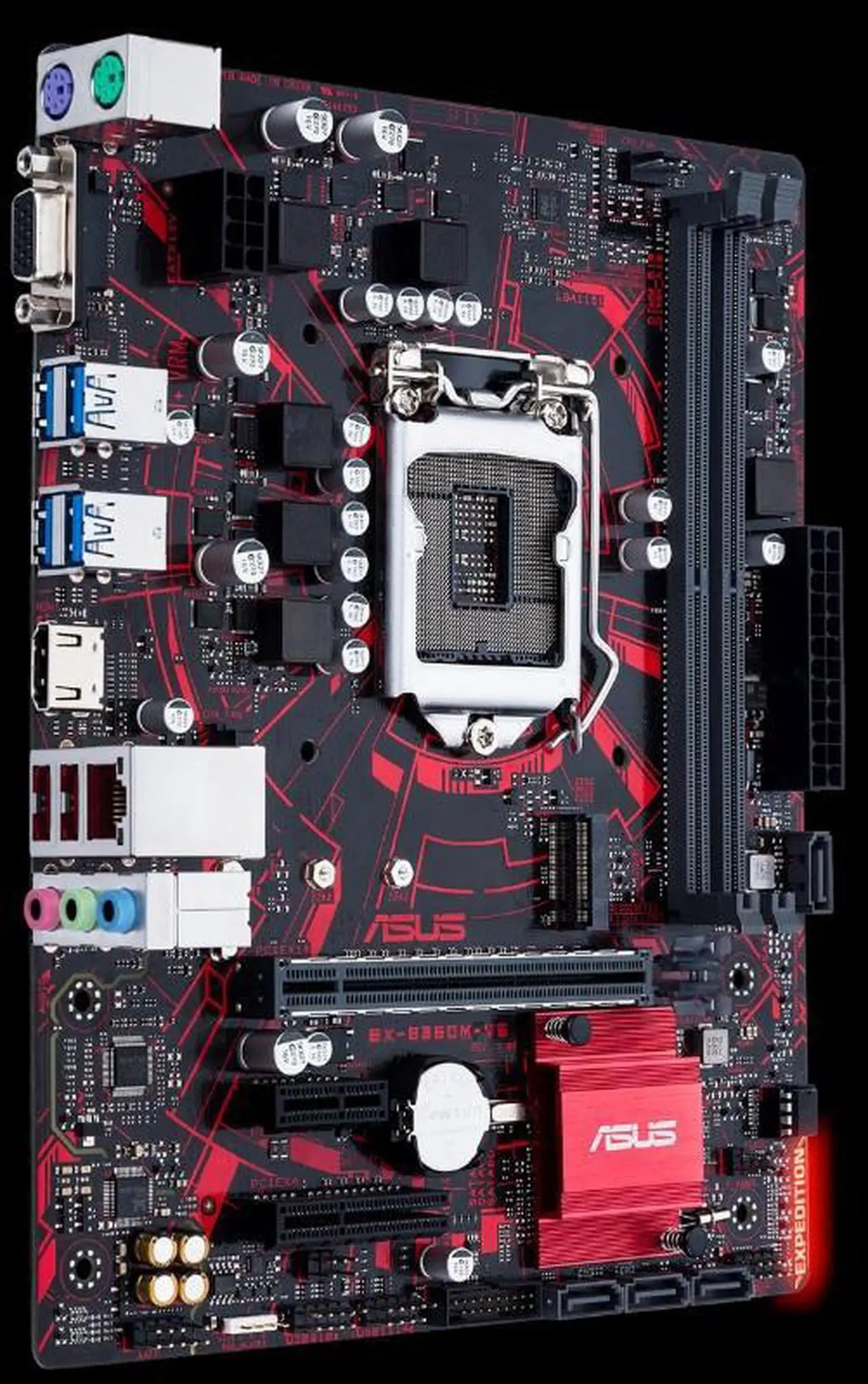

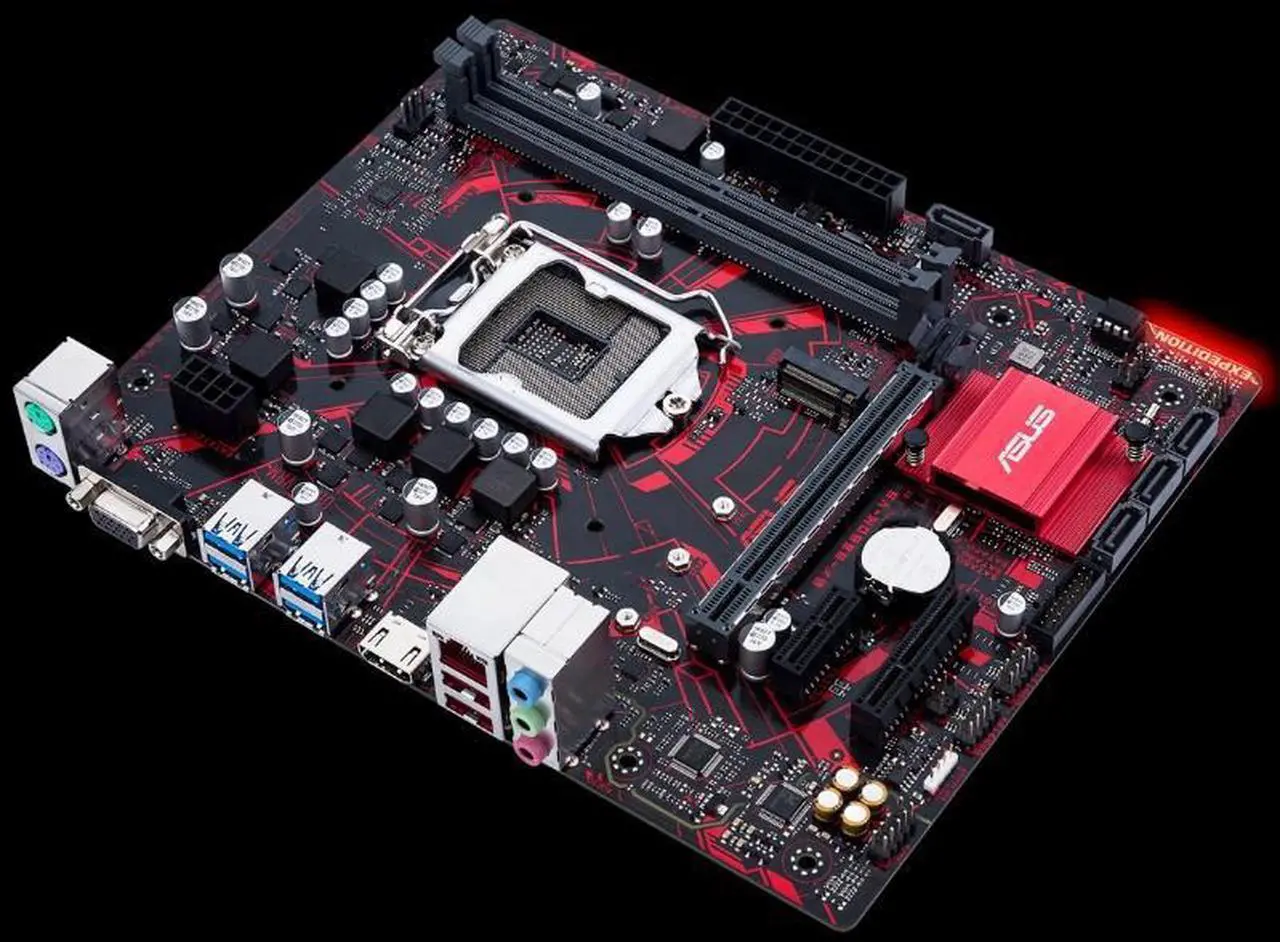

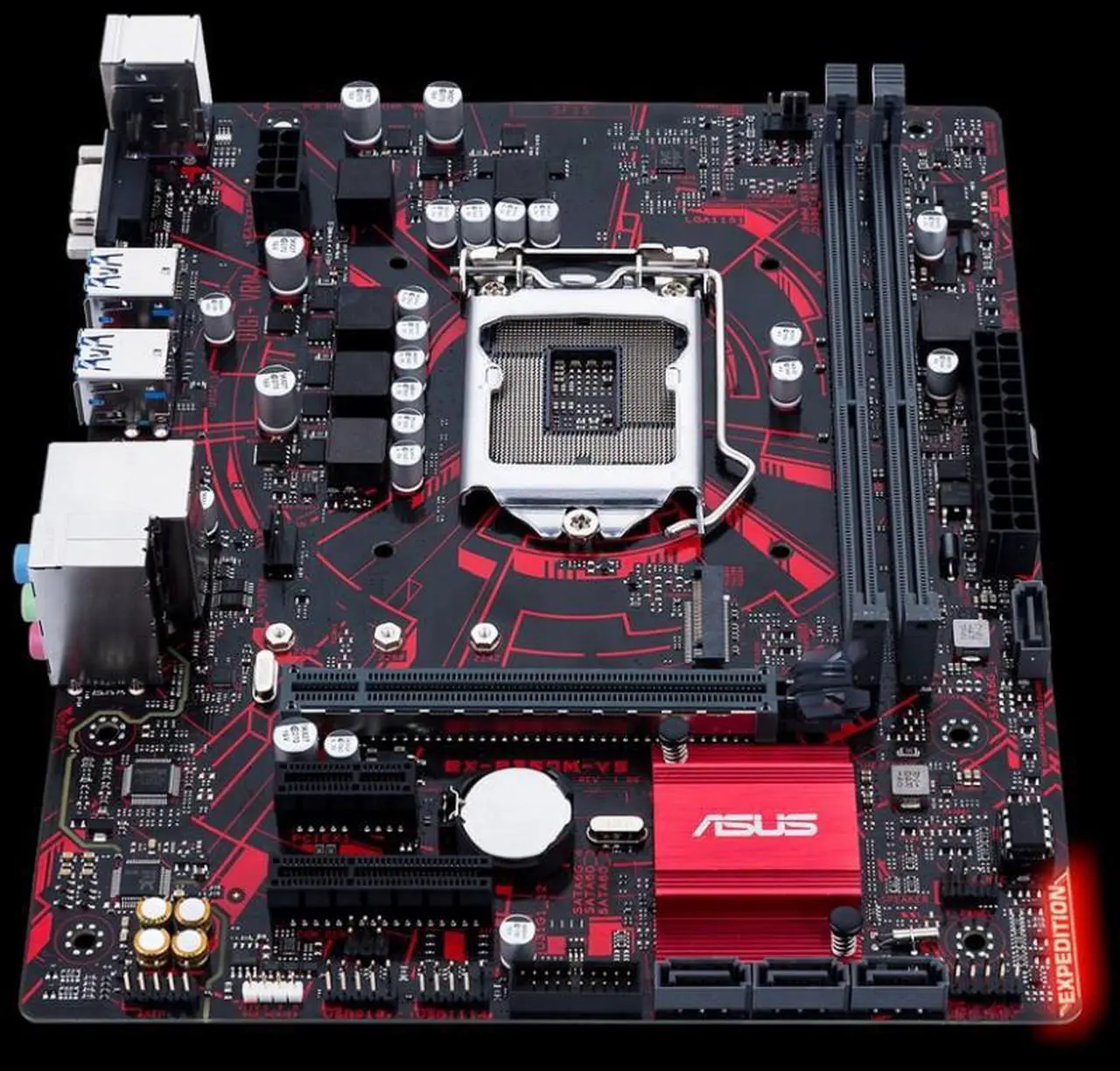

ASUS Intel Expedition EX-B360M-V5 Socket LGA 1151 DDR4 Micro ATX Motherboard (EX-B360M-V5)
Used - Like New Product Type
- Intel B360
+
+
Overview
Specs
Technical details
Motherboard chipset family: Intel
Motherboard chipset: Intel B360
Supported processor sockets: LGA 1151 (Socket H4)
- PC health monitoring: CPU, Fan, Temperature, Voltage
- HDMI version: 1.4 b
Cooling type: Passive
Motherboard form factor: micro ATX
Component for: PC
- USB version: 2.03. 0 ( 3.1 Gen 1)
Total number of SATA connectors: 4
Audio output channels: 8.0 channels
Supported storage drive types: HDD, SSD
Motherboard chipset family: Intel
Motherboard chipset: Intel B360
Supported processor sockets: LGA 1151 (Socket H4)
- PC health monitoring: CPU, Fan, Temperature, Voltage
Cooling type: Passive
Audio output channels: 8.0 channels
Motherboard form factor: micro ATX
Component for: PC
Audio connector: Yes
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Non-ECC: Yes
Supported memory clock speeds: 2666, 2400, 2133 MHz
Supported memory module capacities: 8GB, 16GB
Maximum internal memory: 32 GB
Unbuffered memory: Yes
Processor manufacturer: Intel
Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors: 1
Processor socket: LGA 1151 (Socket H4)
Supported storage drive types: HDD, SSD
Total number of SATA connectors: 4
Audio connector: Yes
Supported storage drive interfaces: M. 2, Serial ATA III
- USB 2.0 connectors: 2
- USB 3.0 ( 3.1
Gen 1) connectors: 1
- mSATA ports quantity: 4
Number of SATA III connectors: 4
Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX
Power connector (24-pin): Yes
- USB 3.0 ( 3.1 Gen 1)
Type-A ports quantity: 4
- USB 2.0 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- PS2 ports quantity: 2
Microphone in: Yes
- HDMI version: 1.4 b
- HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN: Yes
Motherboard chipset family: Intel
Motherboard chipset: Intel B360
Supported processor sockets: LGA 1151 (Socket H4)
- PC health monitoring: CPU, Fan, Temperature, Voltage
Cooling type: Passive
Audio output channels: 8.0 channels
Motherboard form factor: micro ATX
Component for: PC
Maximum graphics adapter memory: 1024 MB
Maximum resolution: 4096 x 2160 pixels
Graphics adapter family: Intel
Graphics adapter: HD Graphics
- PCI slots: 3
- PCI
Express x4 slots: 1
- PCI
Express x16 slots: 1
- PCI
Express x1 slots: 1
Power source type: ATX
Intel Optane Memory Ready: Yes
Maximum graphics adapter memory: 1024 MB
Maximum resolution: 4096 x 2160 pixels
Graphics adapter family: Intel
Graphics adapter: HD Graphics
Width: 182.8 mm
Depth: 226 mm
Manual: Yes
