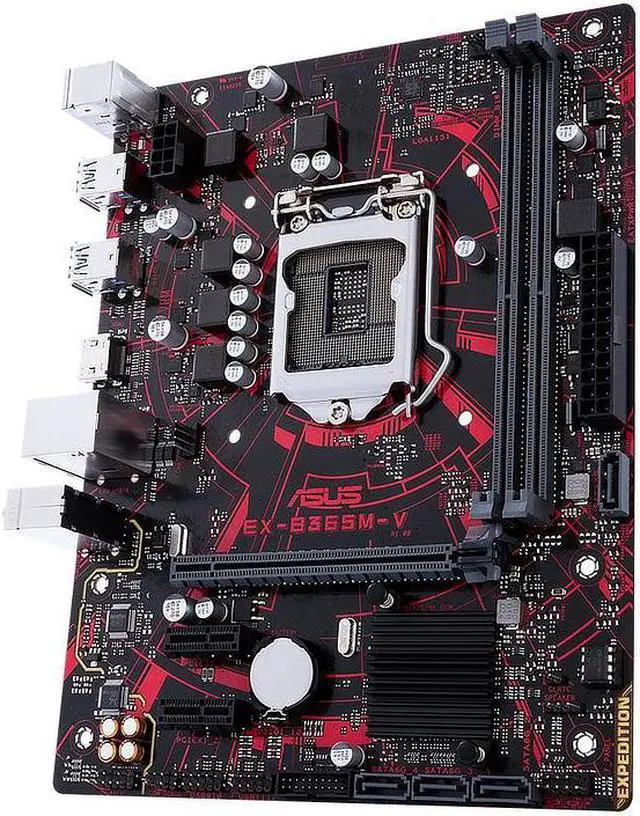

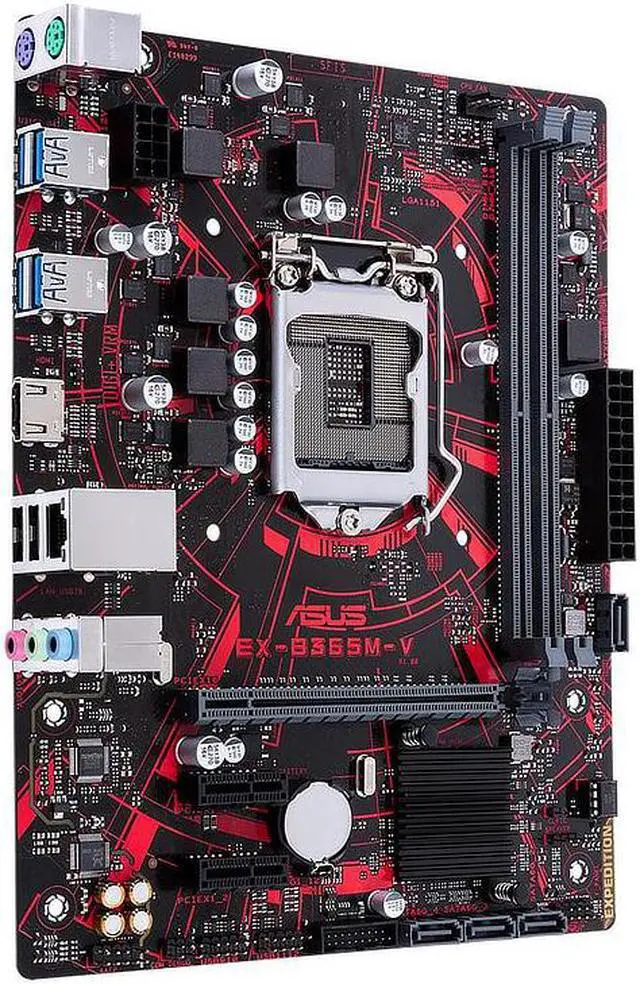

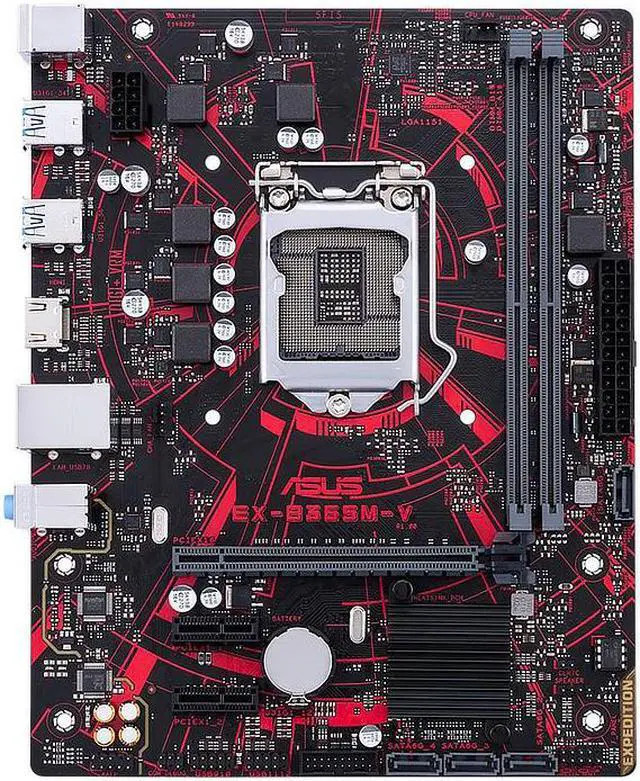

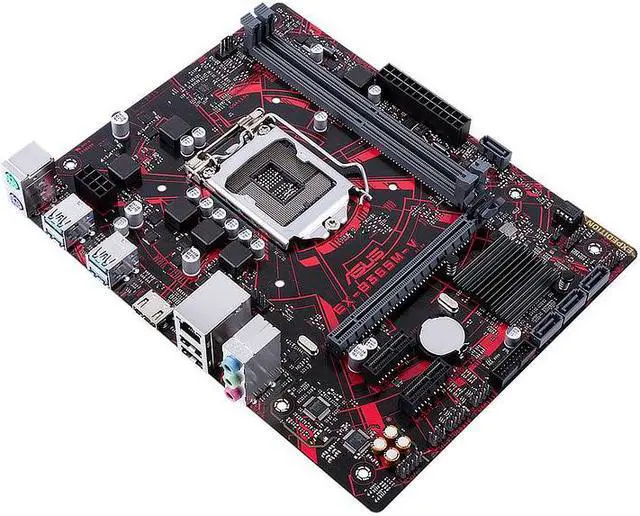

ASUS EX-B365M-V LGA 1151 Intel B365 DDR4 Micro ATX Motherboard (90MB10Y0-M0EAYM)
Used - Like New Product Type
- Intel B365
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Technical details
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B365
- HDMI version: 1.4b
- Motherboard form factor: Micro ATX
- Component for: PC
- Audio output channels: 7.1 channels
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B365
- Audio output channels: 7.1 channels
- Motherboard form factor: Micro ATX
- Component for: PC
- Audio connector: Yes
- Processor manufacturer: Intel
- Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
- Maximum number of SMP processors: 1
- Processor socket: LGA 1151 (Socket H4)
- Number of memory slots: 2
- Memory slots type: DIMM
- Supported memory types: DDR4-SDRAM
- Non-ECC: Yes
- Supported memory clock speeds: 2133,2400,2666 MHz
- Maximum internal memory: 32 GB
- Unbuffered memory: Yes
- Supported storage drive interfaces: Serial ATA III
- Maximum resolution: 4096 x 2160 pixels
- Graphics adapter family: Intel
- Graphics adapter: HD Graphics
- Audio connector: Yes
- 12V power connector: Yes
- Supported storage drive interfaces: Serial ATA III
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Number of EATX power connectors: 1
- Number of chassis fan connectors: 1
- Front panel audio connector: Yes
- CPU fan connector: Yes
- ATX Power connector (24-pin): Yes

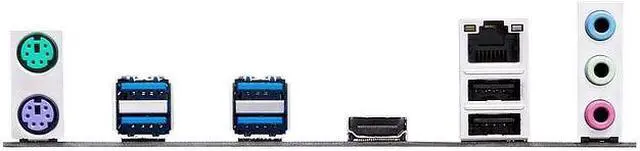

- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 2.0 ports quantity: 2
- PS2 ports quantity: 2
- HDMI version: 1.4b
- HDMI ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN: Yes
- Wi-Fi: No
- Wake-on-LAN ready: Yes
- LAN controller: Realtek RTL8111H
- Ethernet interface type: Gigabit Ethernet
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64
- Motherboard chipset family: Intel
- Motherboard chipset: Intel B365
- Audio output channels: 7.1 channels
- Motherboard form factor: Micro ATX
- Component for: PC
- Audio chip: Realtek ALC887
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- BIOS type: UEFI AMI
- Clear CMOS jumper: Yes
- BIOS memory size: 128 Mbit
- ACPI version: 6.1
- System management BIOS (SMBIOS) version: 3.2
- Maximum resolution: 4096 x 2160 pixels
- Graphics adapter family: Intel
- Graphics adapter: HD Graphics
- Windows operating systems supported: Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64
- Drivers included: Yes
- Width: 226 mm
- Depth: 178 mm
- Quick installation guide: Yes
- Drivers included: Yes
- Cables included: SATA
