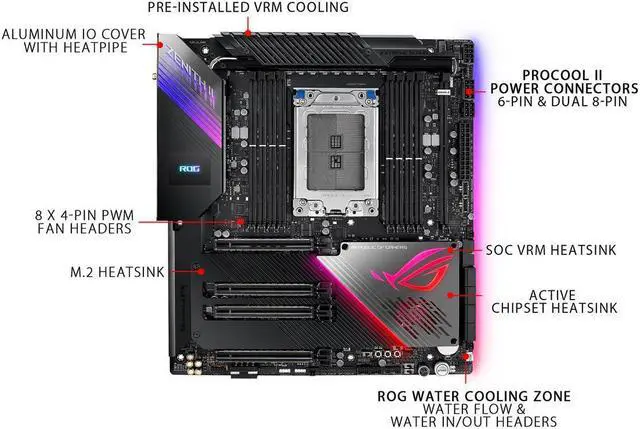

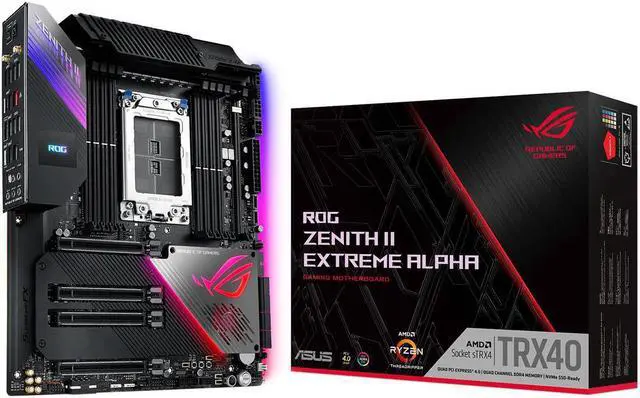

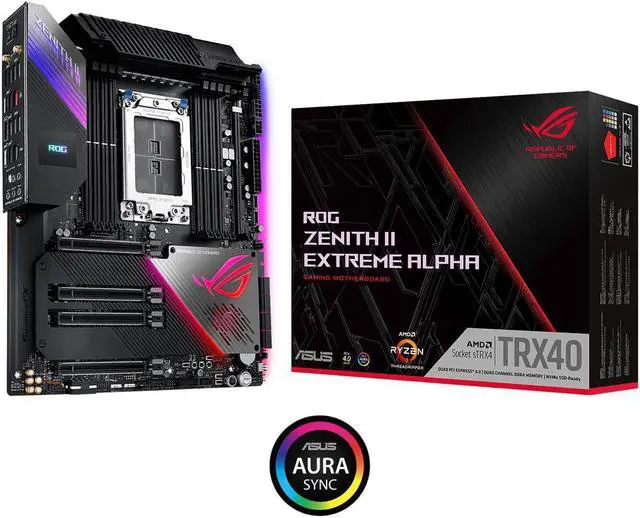

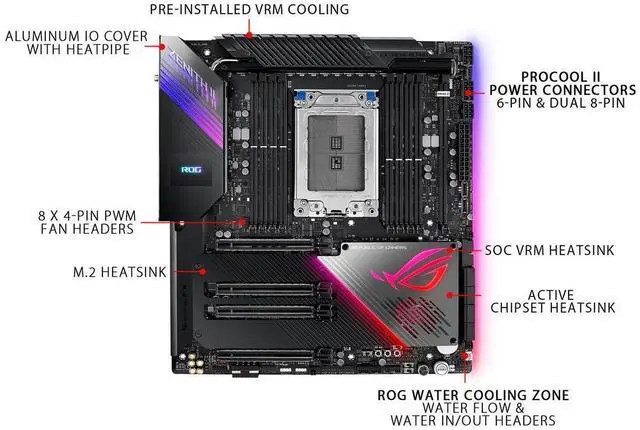

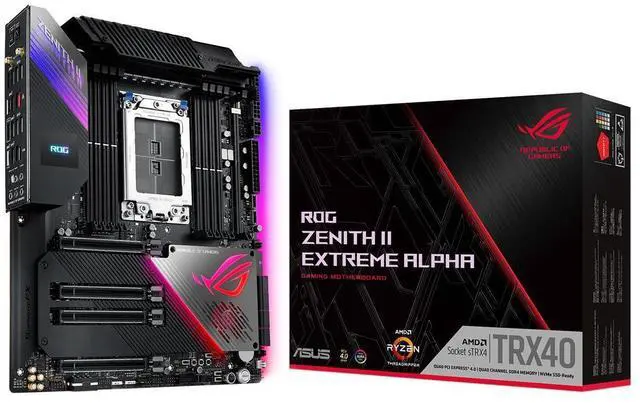

ASUS ROG Zenith II Extreme Alpha TRX40 Gaming AMD 3rd Gen Ryzen Threadripper sTRX4 EATX Motherboard with 16 Infineon Power Stages, PCIe 4.0, Wi-Fi 6 (802.11ax), 10Gbps Ethernet, 5 x M.2, 8 x SATA, USB

Model Brand ASUS Series ROG Model ZENITH II EXTREME ALPHA Supported CPU CPU Socket Type sTRX4 CPU Type Socket sTRX4 for 3rd Gen Ryzen Threadripper Desktop processors Chipsets Chipset AMD TRX40 Memory Number of Memory Slots 8×288pin Memory Standard DDR4 4733+(O. C)/ 4600(O. C. )/ 3466(O. C. )/ 3200(O. C. )/ 3000(O. C. )/ 2933(O. C. )/ 2800(O. C. )/ 2666/ 2400/ 2133 MHz ECC & Non-ECC Un-buffered Memory Maximum Memory Supported 256GB Channel Supported Quad Channel Expansion Slots PCI Express 4.0 x16 4 x PCIe 4.0 x16 SafeSlots (supports x16, x8/x8, x16/x8/x8, x16/x8/x16/x8) Storage Devices SATA 6Gb/s 8 x SATA 6Gb/s M.

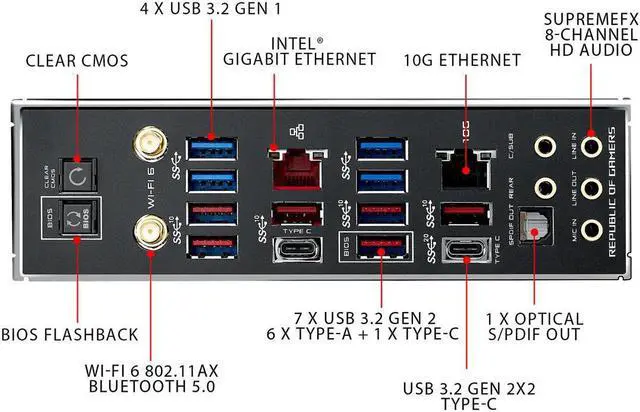

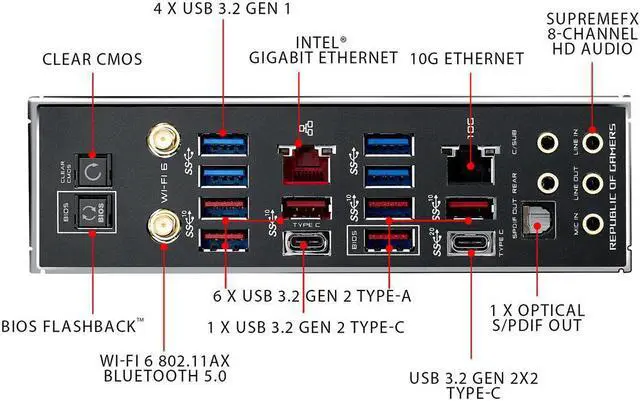

2 1 x ROG DIMM. 2 Gen4 supports - 2 x M. 2_1 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 4.0 x4 and SATA modes) 3 x M. 2_2 Socket 3 with M key, type 2242/2260/2280 (PCIe 4.0 x4 mode) Onboard Audio Audio Chipset ROG SupremeFX S1220 high-definition CODEC Audio Channels 8 Channels Onboard LAN LAN Chipset Intel i211AT Second LAN Chipset Aquantia AQC-107C 10G Max LAN Speed 10Gbps + 10/100/1000Mbps Wireless LAN Intel Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 ( 802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4 /5

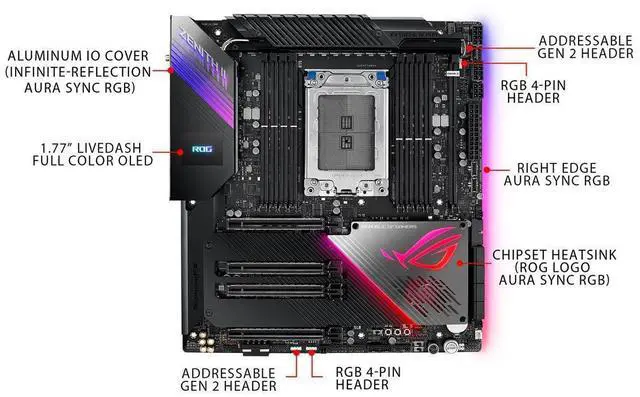

GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Up to 2.4G bps transfer speed Bluetooth Bluetooth v 5.0 Physical Spec Form Factor Extended ATX LED Lighting RGB Dimensions (W x L) 12.2" x 10.9" Windows 11 Compatibility Windows 11 Supported
