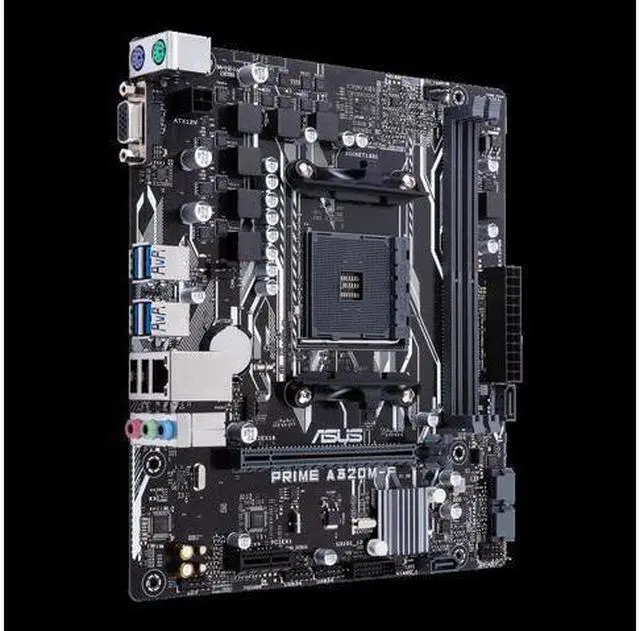

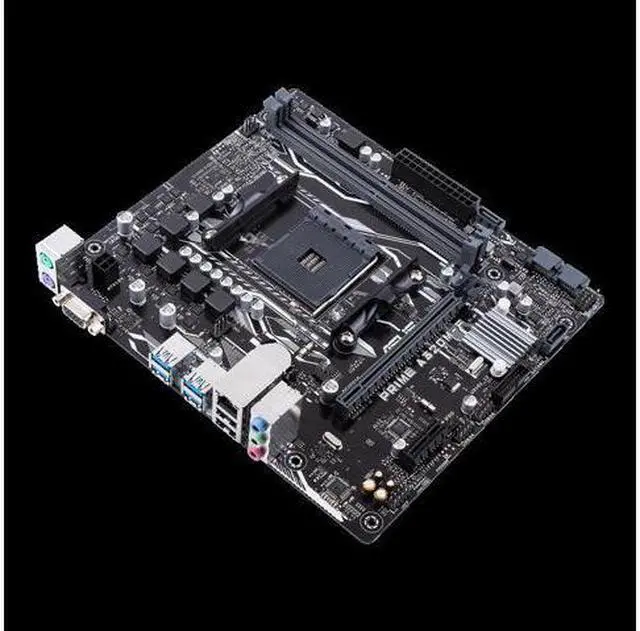

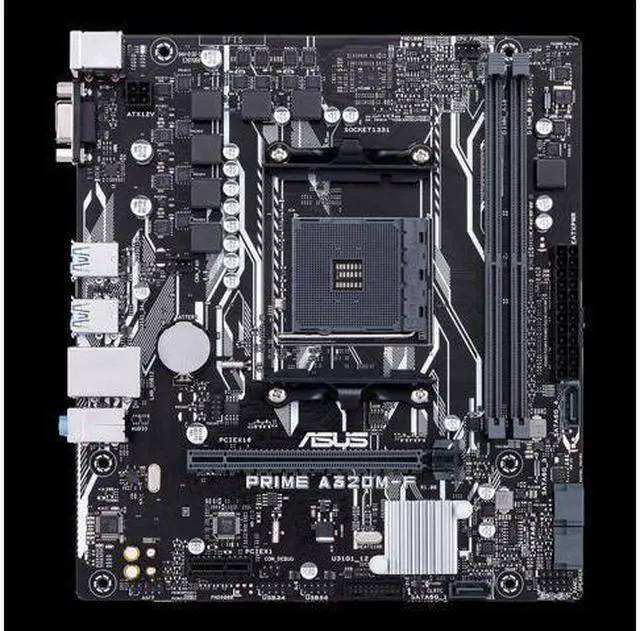

ASUS PRIME A320M-F AMD AM4 uATX motherboard with 5X Protection III, DDR4 3200MHz, SATA 6Gbps and USB 3.1 Gen 1

CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors * Refer to www. asus. com for CPU support list Chipset AMD A320 Memory 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O. C. )/3000(O. C. )/2933(O. C. )/2800(O. C. )/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 2 x DIMM, Max.

32GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www. asus. com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU
VGA output support: D-Sub port - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048 MB (for iGPU exclusively) Expansion Slots 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0 / 2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors 1 x PCIe 3.0 / 2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0 / 2.0 x16 (x4 mode) AMD A320 chipset 2 x PCIe 2.0 x1
Storage AMD A320 chipset: 4 x SATA 6Gb/s port (s), gray, Support Raid 0, 1, 10 LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller (s) Audio Realtek® ALC887 8-Channel High Definition Audio CODEC USB Ports 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th
Generation A-series/ Athlon X4 Processors: 4 x USB 3.1 Gen 1 port (s) (4 at back panel, blue)
AMD A320 chipset: 2 x USB 3.0 port (s) (2 at mid-board)
AMD A320 chipset: 6 x USB 2.0 port (s) (2 at back panel,, 4 at mid-board) Special Features ASUS 5X
Protection III: -
ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS
LAN
Guard: Protects against LAN surges, lightning strikes and static-electricity discharges! -
ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel
Back I/O: 3X corrosion-resistance for greater durability! -
ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode -

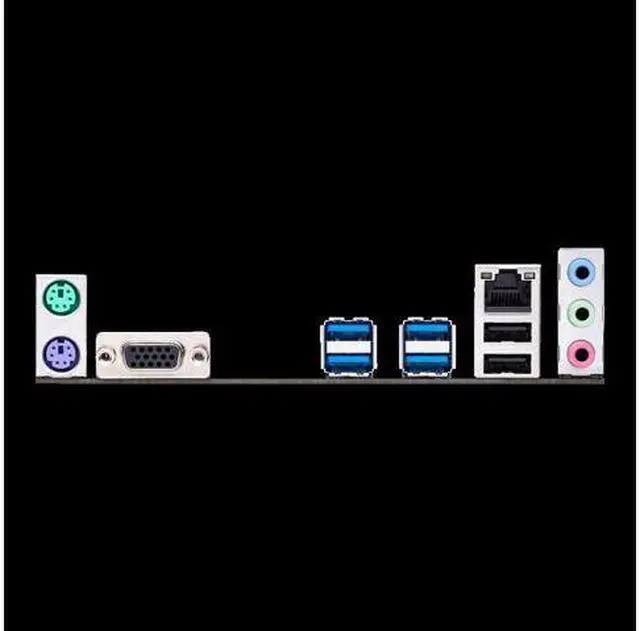

Multi-language BIOS ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x LAN (RJ45) port (s) 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack (s)
