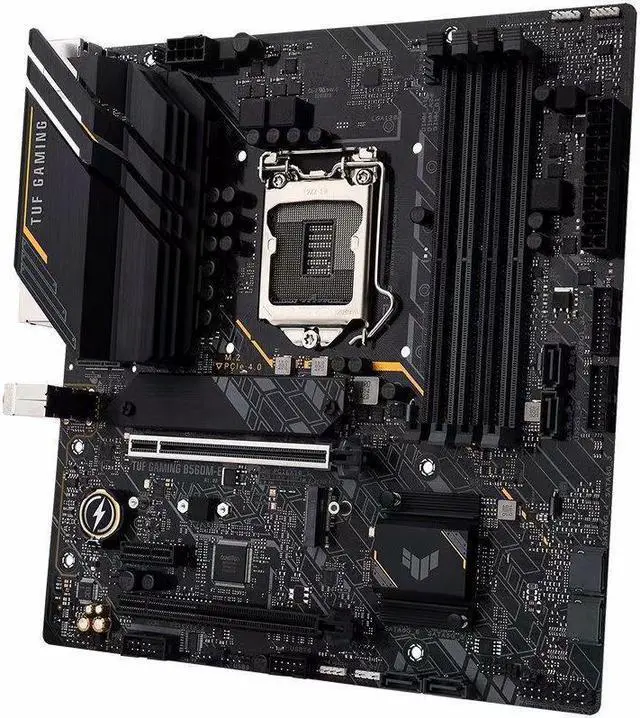

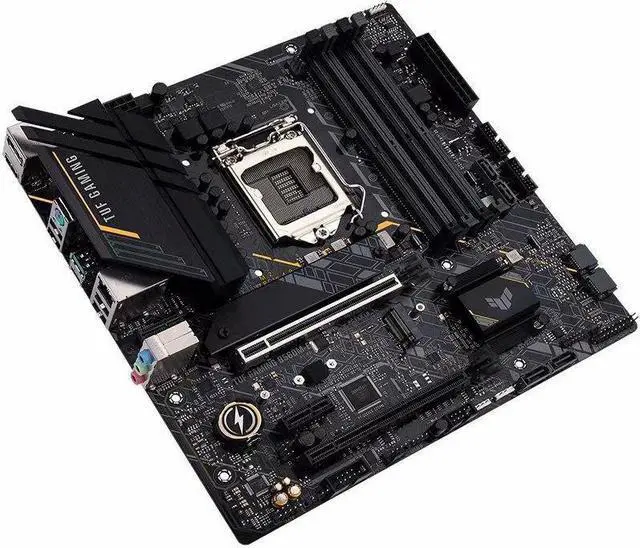

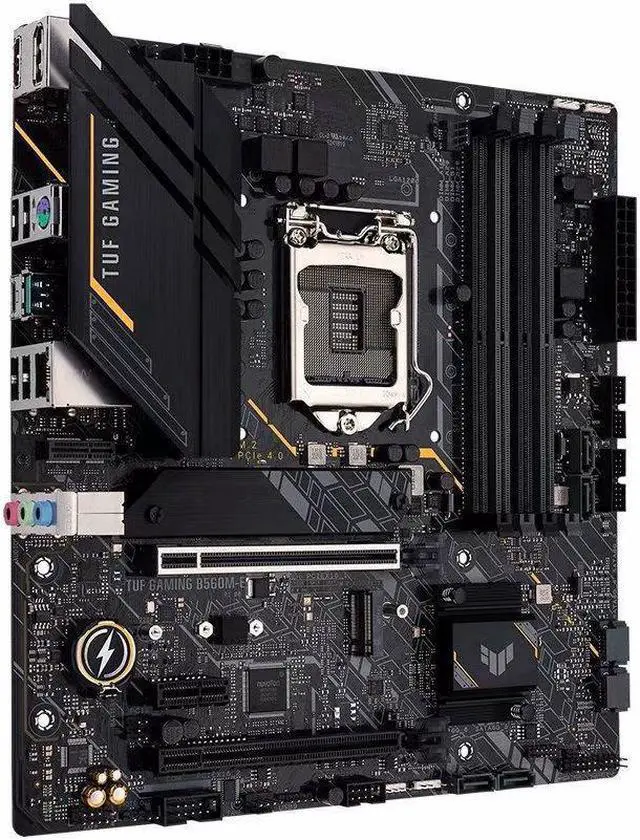

ASUS TUF GAMING B560M-E Intel B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8 Power stages, Realtek 2.5Gb Ethernet, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2 Type-C, Aura Sync RGB Lig
Used - Very Good Product Type
- Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- Memory overclocking: Support memory overclocking up to 5000 MHz
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2 Type-C®
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now

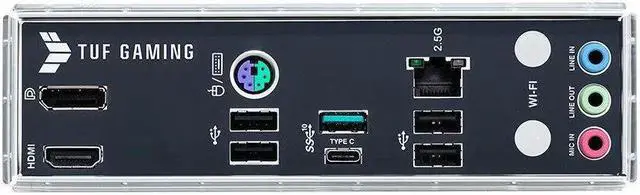

Motherboard chip Integrated chip sound card/network card Main chipset Intel B560M Chipset description Using Intel B560M chipset Display chip CPU built-in display chip (requires CPU support) Audio chip integrated Realtek ALC897 7.1 channel audio chip Network card chip onboard gigabit network card Processor specifications CPU type Tenth generation / eleventh generation Core CPU socket LGA 1200 Memory specifications Memory type 4×DDR4 DIMM Maximum memory capacity 128GB Memory description Support dual-channel DDR4 5000MHz (overclocking) memory Storage expansion PCI-E standard PCI-E 4.0 PCI-E slot 2×PCI-E X16 slot, 2×PCI-E X1 slot Storage interface 3×M. 2 interface, 6×SATA III interface I/O interface USB interface 8×USB 3.2 Gen1 interface, 4×USB 2.0 interface, 1×USB 3.2 Gen1 Type-C interface Video interface 1×HDMI interface, 1×DisplayPort 1.4 interface Power connector One 8-pin, one 24-pin power connector Other interfaces 1×RJ-45 network card interface with indicator light 5×audio interface
