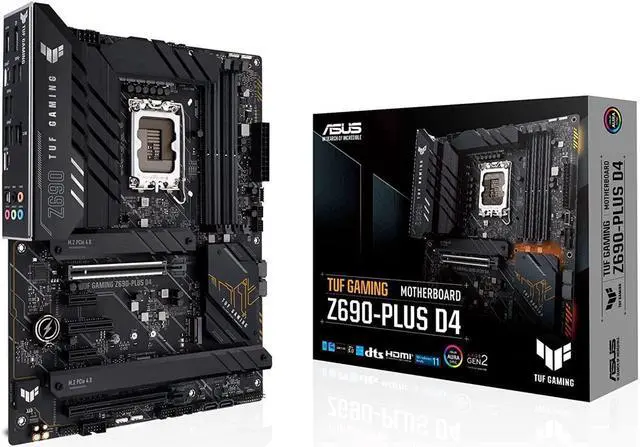

ASUS TUF Gaming Z690-PLUS D4 LGA 1700 ATX Motherboard, 15 DrMOS, PCIe 5.0, DDR4 RAM, Four M.2 Slots, 2.5 Gb Ethernet, Front USB 3.2 Gen 2 Type-C, Thunderbolt 4 Support and RGB Lighting
- Intel® LGA 1700 Socket: Supports 13th and 12th Generation Intel® Core Processors

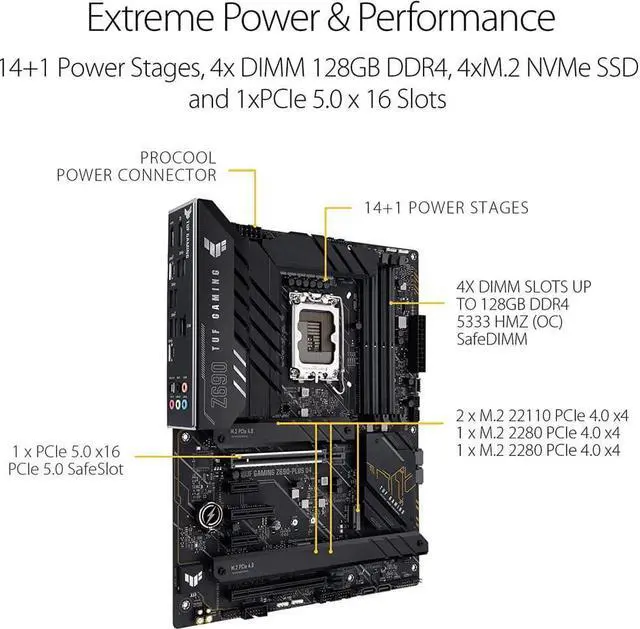

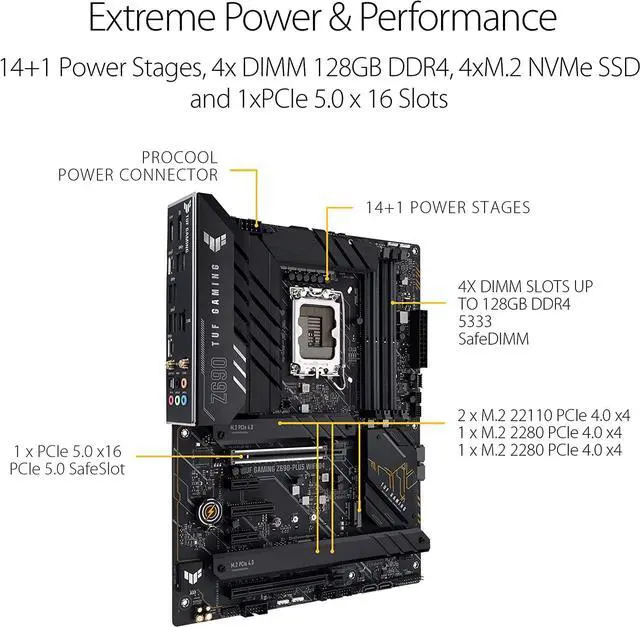

- Enhanced power solution: 14+1 DrMOS power stages, 6-layer PCB, ProCool socket, alloy inductors and long-lasting capacitors for stable power supply
- Next-gen connectivity: PCIe® 4.0 M.2, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 support
- Built for Online Gaming: Intel 2.5 Gb Ethernet and TUF LANGuard
- Two-way AI Noise Cancellation: Reduces background noise from the microphone and audio output for crystal-clear communication for gaming or video conferencing

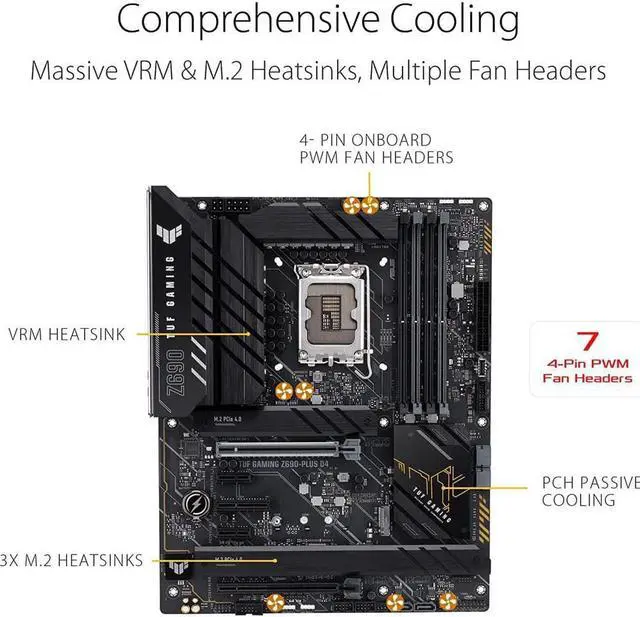

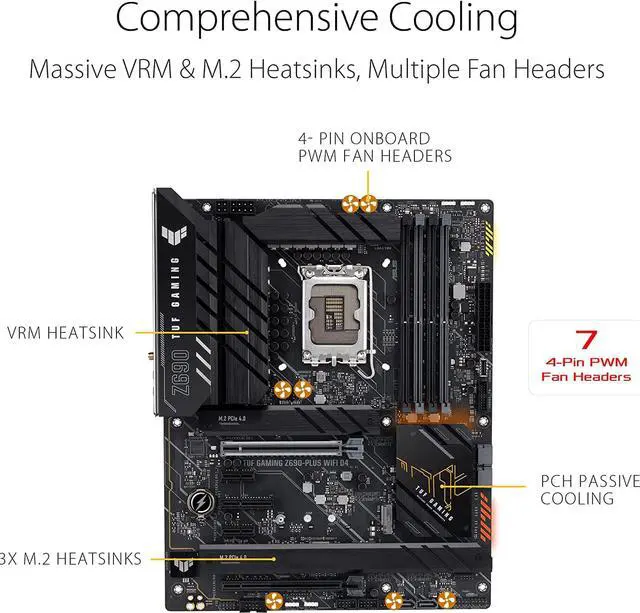

- Cooling all around: Large VRM cooler, PCH fanless cooler, M.2 cooler, hybrid fan header and Fan Xpert 4 utility in Armory Crate

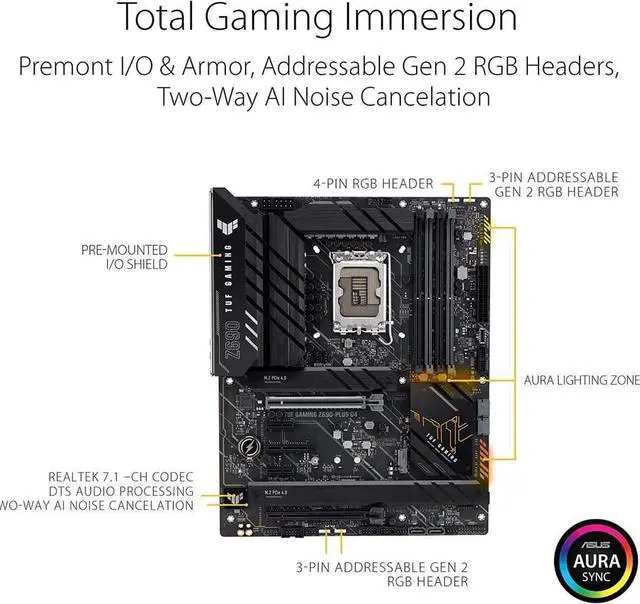

- Brilliant RGB Aura lighting: Stylish edge and PCH lighting designs, support for addressable RGB headers and RGB strip headers
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
#Please refer to the official website for detailed specifications#
TUF GAMING Z690-PLUS D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 **
* Refer to www. asus. com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333 (OC) /5133 (OC) /5000 (OC) /4800 (OC) /4600 (OC) /4400 (OC) /4266 (OC) /4133 (OC) /4000 (OC) /3866 (OC) /3733 (OC)
/3600 (OC) /3466 (OC) /3400 (OC) /3333 (OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www. asus. com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
1 x PCIe 5.0 / 4.0 / 3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage
Supports 4 x M. 2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M. 2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M. 2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M. 2 slots.
Ethernet
1 x Intel® 2.5G b Ethernet
TUF LANGuard
USB

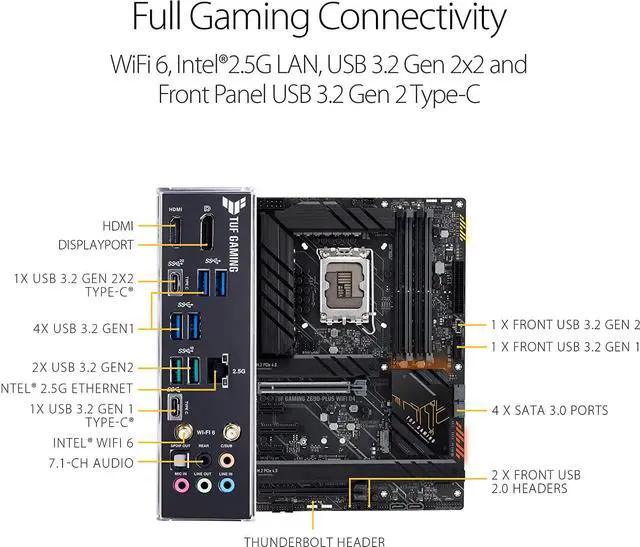

Rear USB: Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB: Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacito
TUF GAMING Z690-PLUS D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 **
* Refer to www. asus. com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Z690
Memory
4 x DIMM, Max. 128GB, DDR4 5333 (OC) /5133 (OC) /5000 (OC) /4800 (OC) /4600 (OC) /4400 (OC) /4266 (OC) /4133 (OC) /4000 (OC) /3866 (OC) /3733 (OC)
/3600 (OC) /3466 (OC) /3400 (OC) /3333 (OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www. asus. com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMI® port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
1 x PCIe 5.0 / 4.0 / 3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage
Supports 4 x M. 2 slots and 4 x SATA 6Gb/s ports
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
M. 2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M. 2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M. 2 slots.
Ethernet
1 x Intel® 2.5G b Ethernet
TUF LANGuard
USB
Rear USB: Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C®)
Front USB: Total 7 ports
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacito
