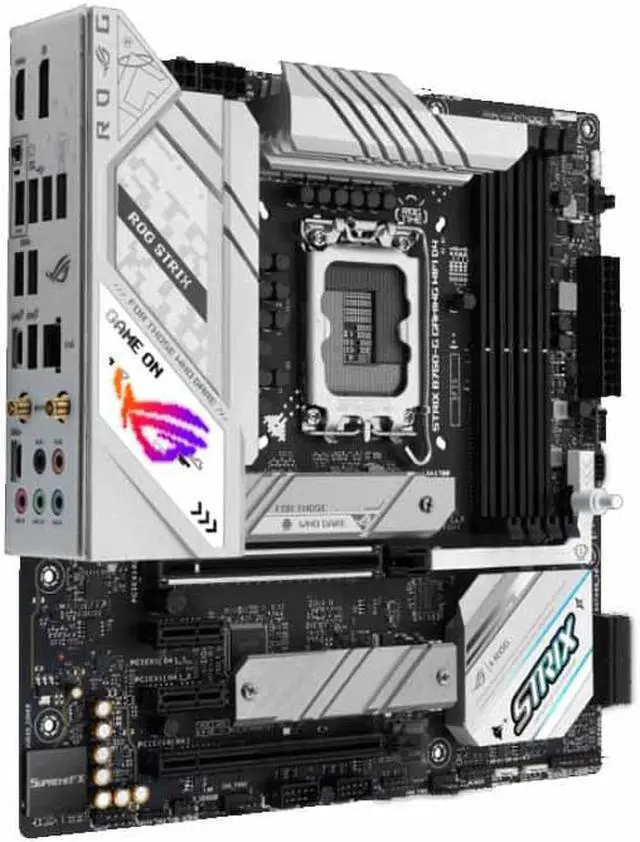

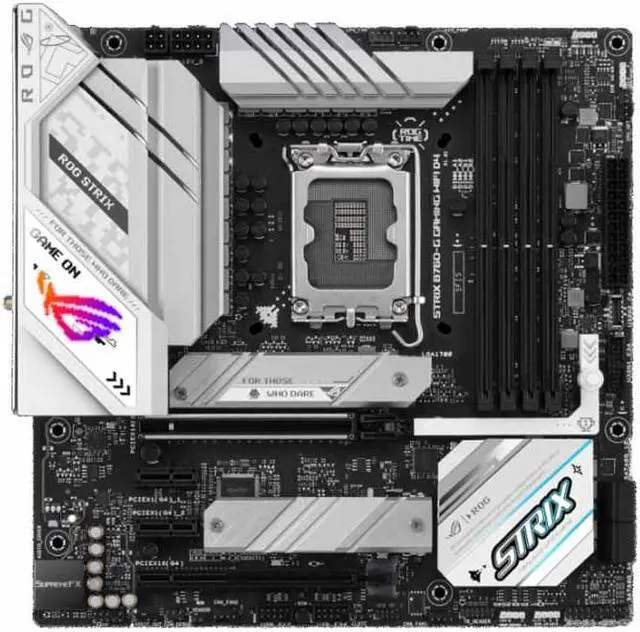

ASUS ROG STRIX B760-G GAMING D4 motherboard WIFI Intel® Socket LGA1700 for 13th Gen Intel®(M-ATX/Intel 2.5Gb+wifi 6E)Windows® 11, Windows® 10 64-bit

#Please refer to the official website for detailed specifications#
#The product is shipped from Taiwan, the plug is Taiwan plug, please prepare the adapter yourself#

CPU
Intel® Socket LGA1700 for 13th Gen Intel®
Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0 **
* Refer to www. asus. com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4
5333 (OC) /5066 (OC) /5000 (OC) /4800 (OC) /4600 (OC) /4400 (OC) /4266 (OC) /4000 (OC) /3733 (OC) /3600 (OC) /3466 (OC) /3400 (OC) /3333 (OC) /3200/3000/2933/2800/2666/2400/2133
MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* Supported memory types, data rate (Speed),
and number of DRAM module vary depending on the CPU and memory configuration,
for more information refer to www. asus. com for memory support list.
* Refer to www. asus. com for the Memory QVL
(Qualified Vendors Lists).
Graphics
1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between
CPU types. Please refer to www. intel. com for any updates.
** Support 4K@60Hz as specified in
DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI
2.1.

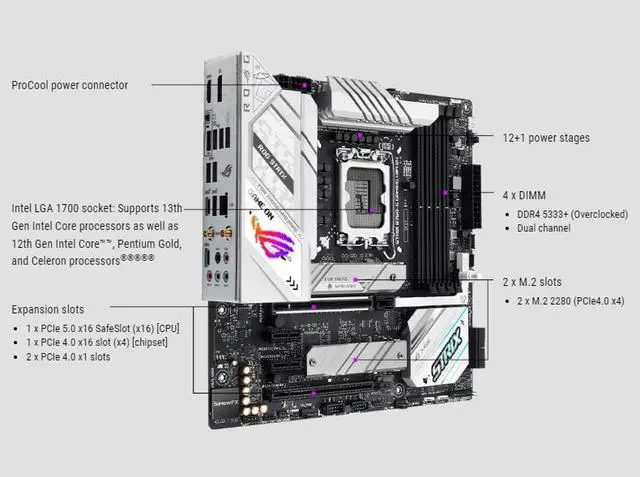

Expansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot (s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device
installed,
please refer to https: //www. asus. com/support/ for the list of
supported peripherals.
Storage
Total supports 2 x M. 2 slots and 4 x SATA
6Gb/s ports*
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M. 2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5G b Ethernet
ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E ( 802.11 a/b/g/n/ac/ax)
Supports 2.4 /5/6GHz frequency band*
Bluetooth® v 5.3
* WiFi 6E 6GHz regulatory may vary between
countries.

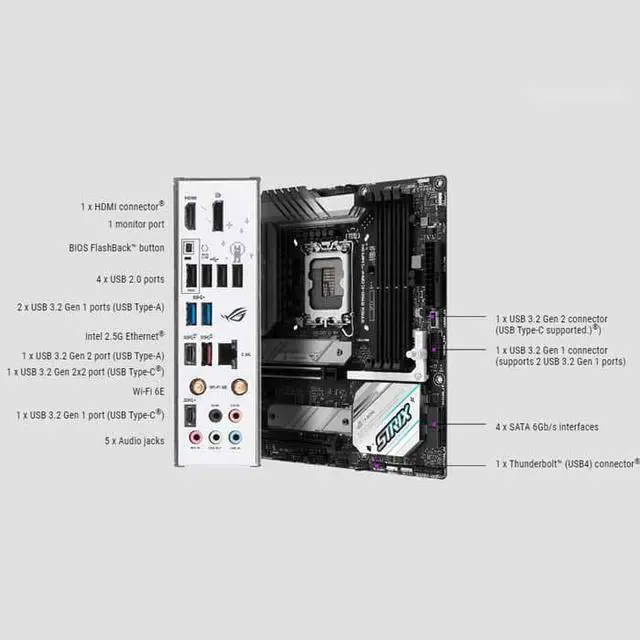

USB

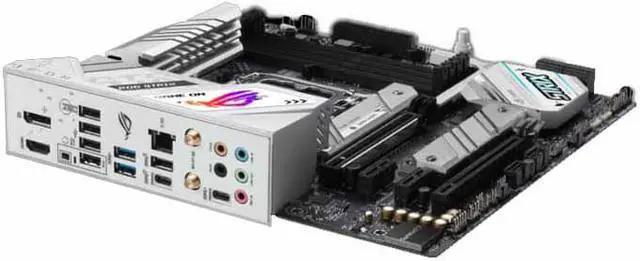

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port (s) (1 x Type-A)
3x USB 3.2 Gen 1 port (s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port (s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4
USB 2.0 ports
Audio
ROG SupremeFX 7.1 -Channel High
Definition Audio CODEC S1220A
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Ja
