#Please refer to the official website for detailed specifications#
Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core, and 12th Gen Intel® Core, Pentium® Gold, and Celeron® processors
Robust Power Solution: 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
Optimized VRM Thermals: Massive heatsinks connected by an L-shaped heatpipe, bridged to the VRM with high-conductivity thermal pads, and with an integrated I/O cover
Ample M.2 Support: Four PCIe® 4.0 M.2 slots all with heatsinks, and the topmost one also sports a Combo-sink extension and backplate for additional cooling
Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort 1.4
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
#Please refer to the official website for detailed specifications# CPU Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 ** * Refer to www. asus. com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR5 7800+ (OC) /7600 (OC) /7400 (OC) /7200 (OC) /7000 (OC) /6800 (OC) /6600 (OC) /6400 (OC) / 6200 (OC) /6000 (OC) /5800 (OC) /5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https: //www. asus. com/support/ ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Graphics 1 x DisplayPort** 1 x HDMI® port*** * Graphics specifications may vary between CPU types. Please refer to ww. intel. com for any updates. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode) 1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https: //www. asus. com/support/FAQ/1037507/). ** To ensure compatibility of the device installed, please refer to https: //www. asus. com/support/ for the list of supported peripherals. Storage Total supports 4 x M. 2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors M. 2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M. 2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M. 2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Intel® 2.5G b Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E ( 802.11 a/b/g/n/ac/ax) Supports 2.4 /5/6GHz frequency band* Bluetooth® v 5.3 * WiFi 6E 6GHz regulatory may vary between countries. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)

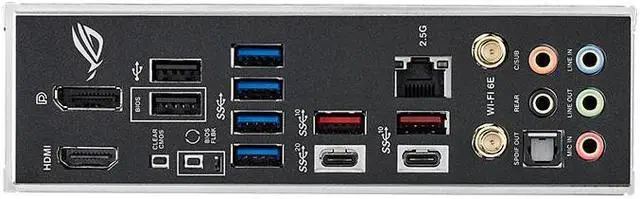

Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover *Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5G b Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers
Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors
Storage related 4 x M. 2 slots (Key M) 4 x SATA 6Gb/s ports
USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors
ASUS Q-Design - M. 2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot
ASUS Thermal Solution - M. 2 heatsink backplate - M. 2 heatsink - VRM heatsink design
ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM
Aura Sync - Aura RGB header - Addressable Gen 2 headers Software Features ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound
ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner - System Information MyAsus Norton 360 for Gamers WinRAR
UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 BIOS 256 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 2 x SATA 6Gb/s cables
Additional Cooling Kit 1 x Thermal pad for M. 2
Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M. 2 backplate Q-Latch package 1 x M. 2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M. 2 Rubber Packages 1 x M. 2 backplate Rubber
PackageDocumentation 1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Learn more about the Detailed Specifications
Supported CPU
CPU Type
Intel Core 13th Gen (LGA 1700)
Additional Information
Date First Available
January 10, 2025
