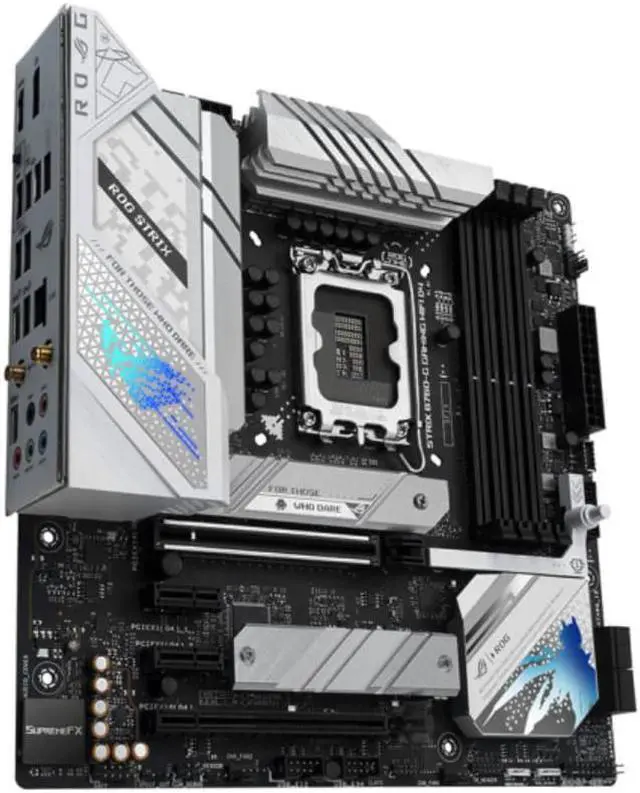

ASUS ROG STRIX B760-G GAMING WIFI DDR5 Gaming Motherboard(Intel LGA1700 mATX ,4xDDR5,1xPCIe 5.0 x16, 2xM.2, 4 xSATA, USB3.2 Gen2x2 Type-C,1xHDMI, 1xDP,WiFi 6E 2.5Gb Ethernet, Aura Sync)

Intel® Socket LGA1700 for 13th Gen Intel®
Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron®
Processors
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0 **
* Refer to www. asus. com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.

Intel® B760 Chipset

4 x DIMM slots, Max. 192GB, DDR5
7800+ (OC) /7600 (OC) /7400 (OC) /7200 (OC) /7000 (OC) /6800 (OC) /6600 (OC) /6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
* Supported memory types, data rate (Speed),
and number of DRAM module vary depending on the CPU and memory configuration,
for more information refer to www. asus. com for memory support list.
* Refer to www. asus. com for the Memory QVL
(Qualified Vendors Lists).

1 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between
CPU types. Please refer to www. intel. com for any updates.
** Support 4K@60Hz as specified in
DisplayPort 1.4
*** Support 4K@60Hz as specified in HDMI
2.1.

Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot (s)
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
- To ensure compatibility of the device
installed,
please refer to https: //www. asus. com/support/ for the list of
supported peripherals.

Total supports 2 x M. 2 slots and 4 x SATA
6Gb/s ports*
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
Intel® B760 Chipset**
M. 2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.

1 x Intel® 2.5G b Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E ( 802.11 a/b/g/n/ac/ax)
Supports 2.4 /5/6GHz frequency band*
Bluetooth® v 5.3
* WiFi 6E 6GHz regulatory may vary between
countries.

Rear USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 port (s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port (s) (1 x Type-A)
3x USB 3.2 Gen 1 port (s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port (s) (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4
USB 2.0 ports
ROG SupremeFX 7.1 -Channel High
Definition Audio CODEC S1220A
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Premium audio capacitors
- Audio cover
* Due to limitations in HAD bandwidth,
32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

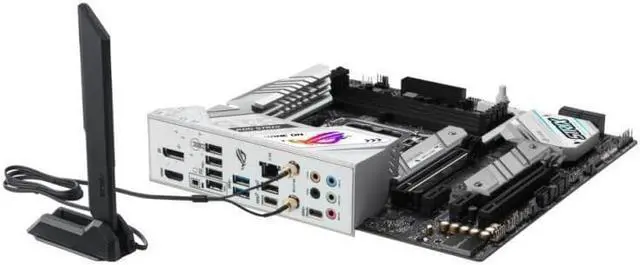

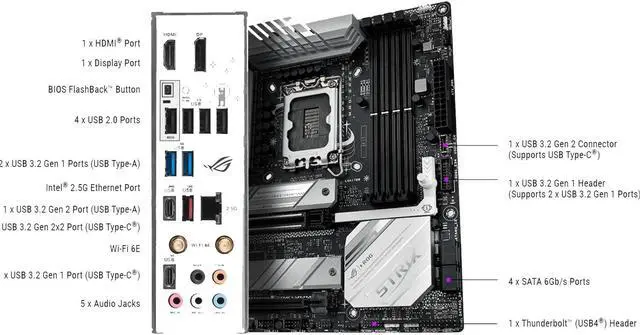

1 x USB 3.2 Gen 2x2 port (s) (1 x USB
Type-C®)
1 x USB 3.2 Gen 2 port (s) (1 x Type-A)
3x USB 3.2 Gen 1 port (s) (2 x Type-A, 1 x
USB Type-C®)
4 x USB 2.0 port (s) (4 x Type-A)
1 x HDMI® port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel® 2.5G b Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header

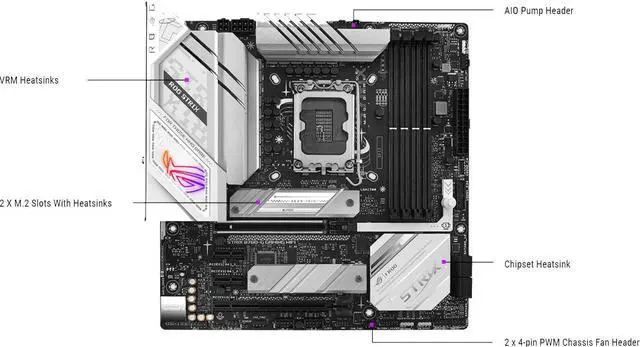

1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan header (s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M. 2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Miscellaneous

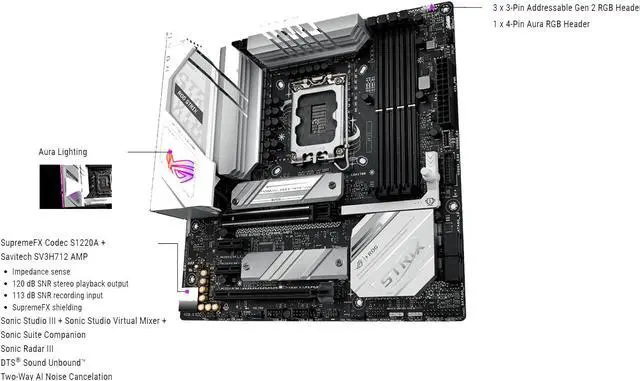

3 x Addressable Gen 2 header (s)
1 x AURA RGB header (s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt (USB4®) header
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M. 2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M. 2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
-CPU
Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 header
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4
- Two-Way AI Noise Cancelation
- Power Saving
AI Suite 3
- Performance And Power Saving Utility
- DIGI+ VRM
- PC Cleaner
MyAsus
Norton 360 for Gamers (60 days free trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
MemTest86
Package contains:
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M. 2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package (s) for M. 2
1 x Q-Latch package (s) for M. 2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Documentation
1 x User manual
Compatible: Windows® 11, Windows® 10 64-bit
