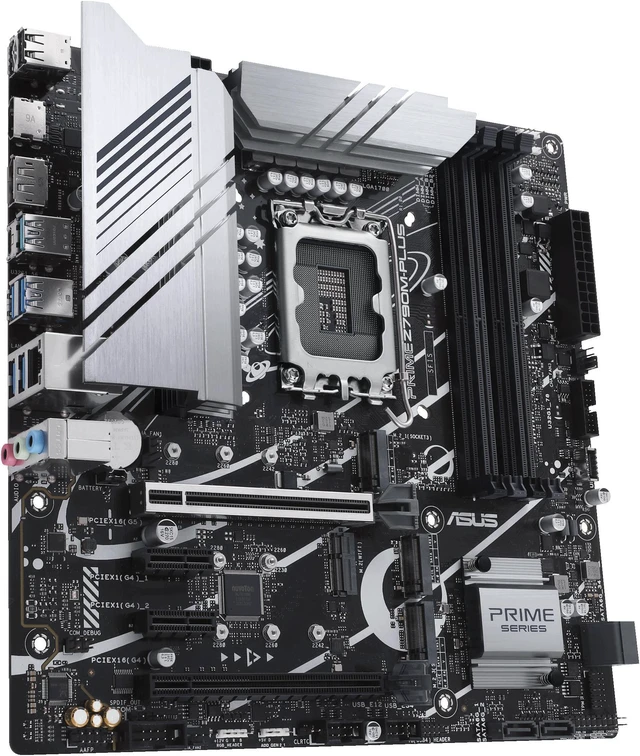

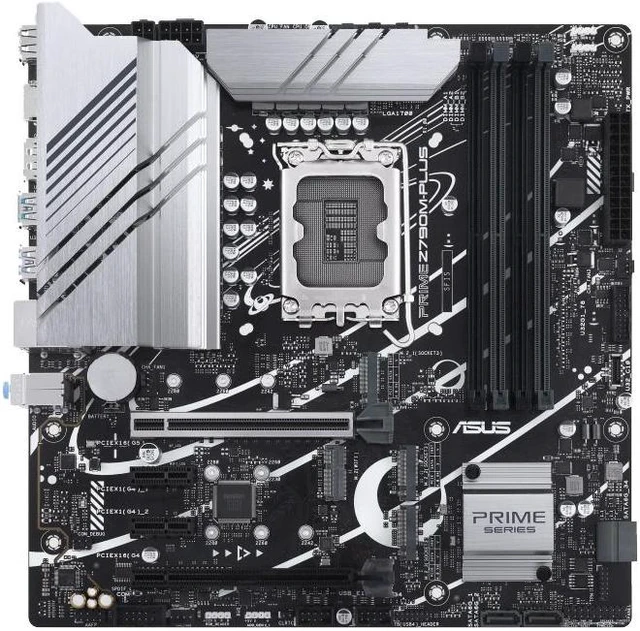

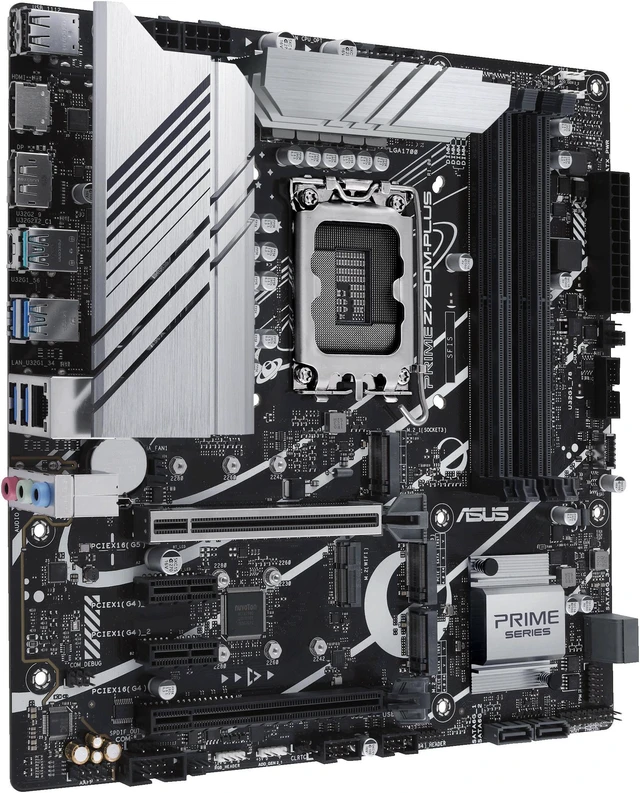

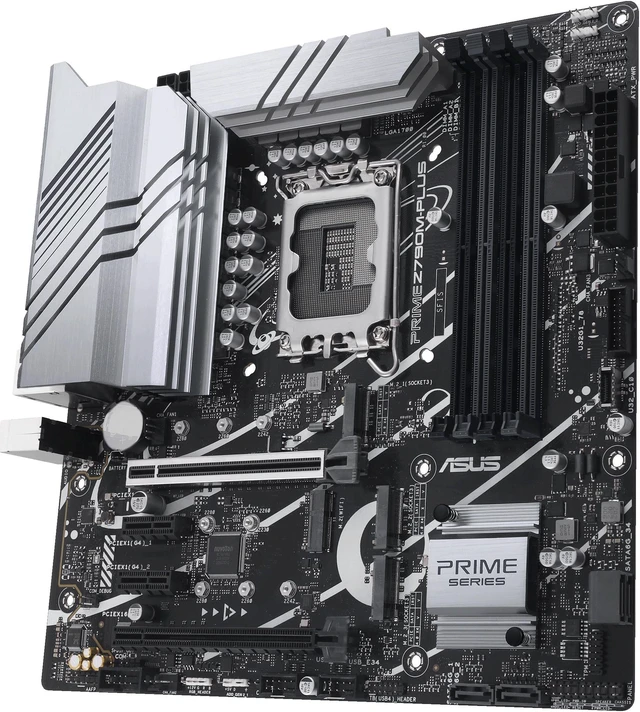

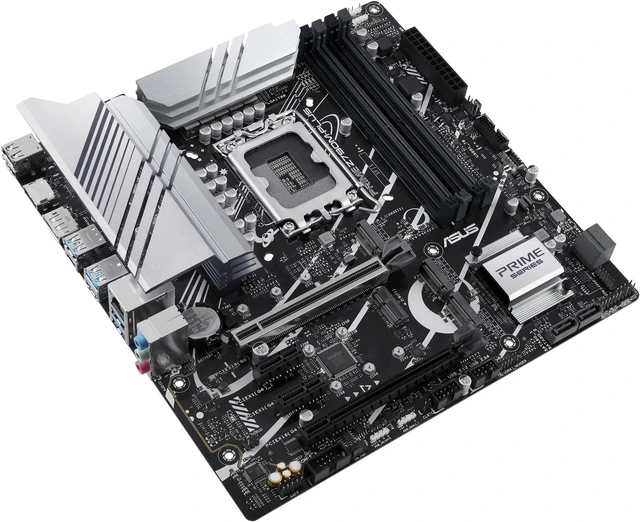

ASUS PRIME Z790M-PLUS-CSM (LGA1700)DDR5/M-ATX motherboard for 13th Gen Intel® Core and 12th Gen Intel® Core, Pentium® Gold, and Celeron® Processors
- #Please refer to the official website for detailed specifications#
- Processor socket: LGA1700 (suitable for 12/13 generation processors)
- Size: Micro ATX
- Memory: 4x DDR5 U-DIMM (Max: 128GB)
- Display: 1*HDMI(2.1) / 1*DP(1.4) / PCIe 5.0
- Storage: 3*M.2 / 4*SATA3
- Built-in: 1 set of front 19-pin USB 3.2 Gen1 / 1 set of front USB-C 3.2 Gen1
- Network: Intel 1GbE
- Audio: Realtek Audio Codec 3x 3.5mm audio input and output
- RGB: 12V(4Pin)*1 + 5V(3Pin)*3
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
#Please refer to the official website for detailed specifications#
model
PRIME Z790M-PLUS-CSM
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 **
* Refer to ASUS official website for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200+ (OC) /7000 (OC) /6800 (OC) /6600 (OC) /6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS official website.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to intel official website for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site ASUS official website
- To ensure compatibility of the device installed, please refer to ASUS official website support list for the list of supported peripherals.
Storage
Total supports 3 x M. 2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M. 2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M. 2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB

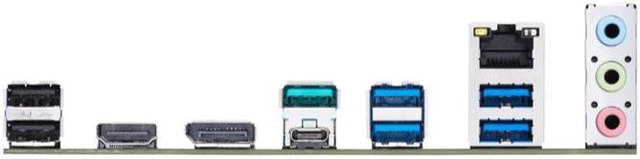

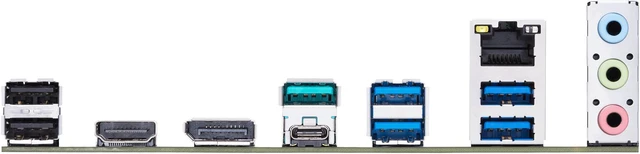

Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
-Audio Shielding
- Premiu
model
PRIME Z790M-PLUS-CSM
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 **
* Refer to ASUS official website for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200+ (OC) /7000 (OC) /6800 (OC) /6600 (OC) /6400 (OC) / 6200 (OC) / 6000 (OC) / 5800 (OC) / 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit ASUS official website.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to intel official website for any updates.
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
* Please check the PCIe bifurcation table on the support site ASUS official website
- To ensure compatibility of the device installed, please refer to ASUS official website support list for the list of supported peripherals.
Storage
Total supports 3 x M. 2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M. 2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M. 2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M. 2 slot only (Key E, CNVi & PCIe)*
*Wi-Fi module is sold separately.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
-Audio Shielding
- Premiu
