ASUS ROG STRIX B560-F GAMING WIFI Intel B560 LGA 1200 ATX Motherboard

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core Processors & 10th Gen Intel® Core, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 ** * Refer to www. asus. com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset: B560
Memory: Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www. asus. com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics: * Graphics specifications may vary between CPU types. **Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www. intel. com for any update. *** Only Intel® 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www. intel. com for any updates.
Expansion Slots: Intel® 11th &10th Gen Processors 1 x PCIe 4.0 / 3.0 x16 slot (s) - Intel® 11th processors support PCIe 4.0 x16 mode - Intel®10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) * 2 x PCIe 3.0 x1 slots * The PCIEX16_2 shares bandwidth with the M. 2_2. When M. 2_2 runs x4 mode, PCIEX16_2 will be disabled.
Storage: Supports 3 x M. 2 slots and 6 x SATA 6Gb/s ports Total supports 3 x M. 2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen Processors M. 2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* M. 2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)** 6 x SATA 6Gb/s ports * The M. 2_2 share bandwidth with PCIEX16_2. When PCIEX16_2 runs x4 mode, M. 2_2 cant run PCIE mode (when M. 2_2 runs at SATA mode, SATA6G_1 will be disabled) ** To enable Intel® Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
Ethernet: 1 x Intel® 2.5G b
Ethernet USB: 1 x USB 3.2 Gen 2x2 port (s) (1 x USB Type-C®) 2 x USB 3.2 Gen 2 port (2 x Type-A) 2 x USB 3.2 Gen 1 port (2 x Type-A) 4 x USB 2.0 port (s) (3 x Type-A, 1 x audio
USB Type-C®) Front USB: Total 7 ports 1 x USB 3.2 Gen 1 connector (s) (suppport (s) USB Type-C®) 1 x USB 3.2 Gen 1 header (s) support (s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header (s) support (s) additional 4 USB 2.0 ports
Audio: ROG SupremeFX 7.1 -Channel High Definition Audio CODEC S1220A* - Impedance sense for front and rear headphone outputs -
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*
Audio Features: - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 port (s) (2 x Type-A) 2 x USB 3.2 Gen 1 port (s) (2 x Type-A) 4 x USB 2.0 port (s) (3 x Type-A, 1 x audio USB Type-C®) 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5G b Ethernet 5 x Audio jacks 1 x BIOS FlashBack button
Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M. 2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M. 2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header (s) - Addressable Gen 2 RGB header (s)
Software Features: ROG Exclusive Software - RAM
Cache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update MyAsus WinRAR DAEMON Tools UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables 4 x SATA 6Gb/s cables 1 x ROG audio USB Type-C® cable Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M. 2 Q-Latch package 2 x M. 2 Rubber Packages 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Installation Media 1 x Support DVD Documentation 1 x User manual

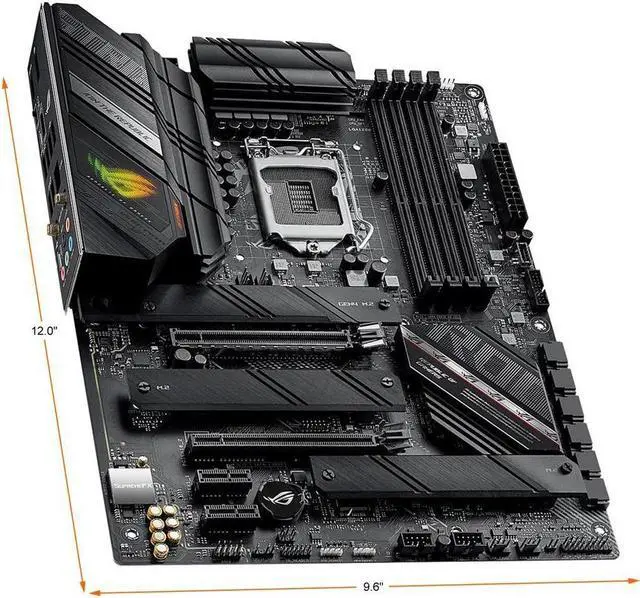

Operating System: Windows 10 64bit Form Factor ATX 30.5 cm x 24.4 cm ROG STRIX B560-F GAMING WIFI Product Comparison Product added to comparison. Add up to 4 products or proceed to view compare products selected.
