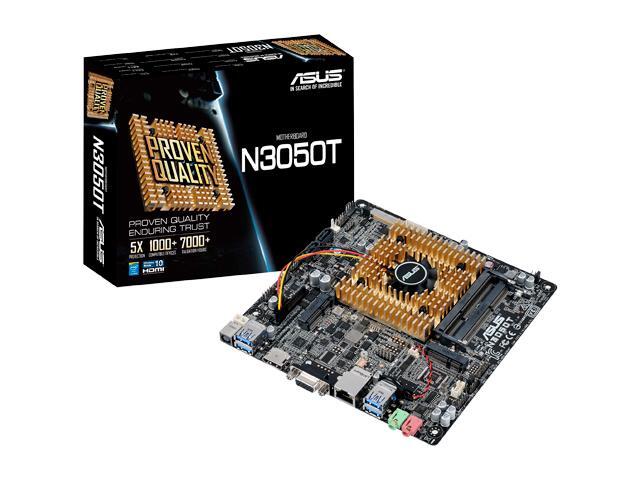

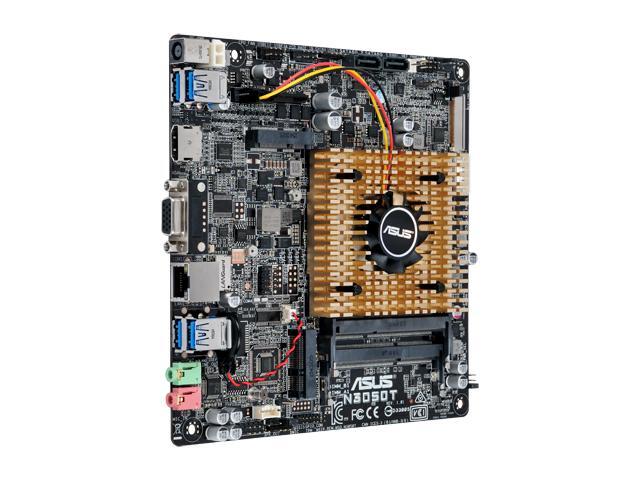

ASUS N3050T Intel Celeron Dual-Core N3050 SoC onboard Processors Thin Mini-ITX Motherboard / CPU / VGA Combo

In stock.
Ships from Hong Kong.
Most customers receive within 5-23 days.
  • N3050I-C
  • N3050T
  • N3150I-C
  • Thin Mini-ITX Design
  • Multiple graphics outputs
  • Supports both 12V and 19V inputs via the I/O panel DC-in
  • 5X Protection
  • Ai Suite 3 software
Specs
Reviews

Learn more about the ASUS N3050T

Best Seller Ranking #25 in Embedded Solutions
Model
Brand ASUS
Model N3050T
Combo Type Motherboard / CPU / VGA Combo
Bundle
CPU Intel Celeron Dual-Core N3050 SoC onboard Processors
Memory
Number of Memory Slots 2×204pin SO-DIMM
Expansion Slots
Mini Card Slots 1 x mini-PCIe (full-length)
1 x mini-PCIe (half-length)
Storage Devices
SATA 2 x SATA 6.0Gb/s
Additional SATA 1 x mini-SATA 6Gb/s port(s) *2

* 2 mSATA shares the same slot with the full-length mini-PCIe card. mSATA shares the same bandwidth with SATA6G_2 slot. When a device is installed on the SATA6G_2 slot, the mSATA device is disabled.
Onboard Video
Onboard Video Chipset Integrated Graphics Processor
Multi-VGA output support: HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512MB
Supports up to 3 displays simultaneously
Onboard Audio
Audio Chipset Realtek ALC887-VD2
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111H
LAN Speed 10/100/1000Mbps
Rear Panel Ports
Video Ports 1 x D-Sub
HDMI 1 x HDMI
USB 3.0 4 x USB 3.0
Audio Ports 2 Ports
Internal I/O Connectors
Onboard USB 3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
Other Connectors 1 x COM port(s) connector(s)
1 x SATA power connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Chassis Intrusion connector(s)
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
1 x LVDS connector(s)
1 x 14-1-pin TPM connector
1 x System panel connector
1 x Display panel backlight power selector
1 x Flat panel display brightness connector
1 x Display panel VCC power selector
1 x LCD panel monitor switch header
Features
Features Special Features
ASUS 5X Protection:
- ASUS LANGuard - Advanced LAN protection
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- USB 3.0 Boost
- Mobo Connect
ASUS Quiet Thermal Solution:
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- Push Notice
100% All High-quality Conductive Polymer Capacitors
Media Streamer

Operating System Support:
Windows 10, 64bit
Windows 8.1, 64bit
Windows 7, 64bit

BIOS:
64MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability:
WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc:
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Physical Spec
Form Factor Thin Mini-ITX
Dimensions (W x L) 6.7" x 6.7"

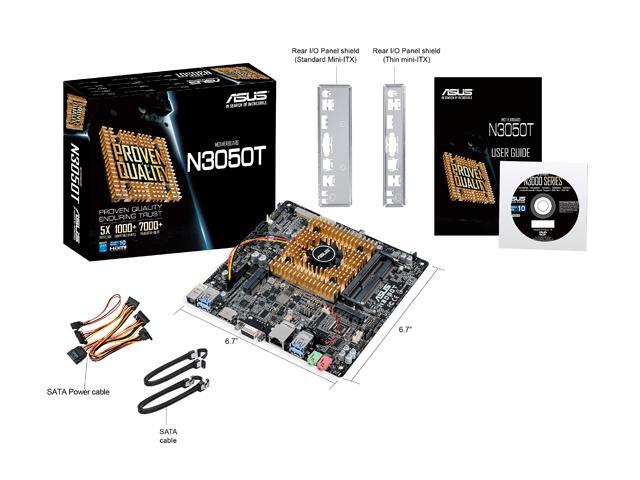

Package Contents
Package Contents Accessories:
User's manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cable(s)
1 x Mini PCIe Screw Package
Additional Information
Date First Available October 21, 2020
