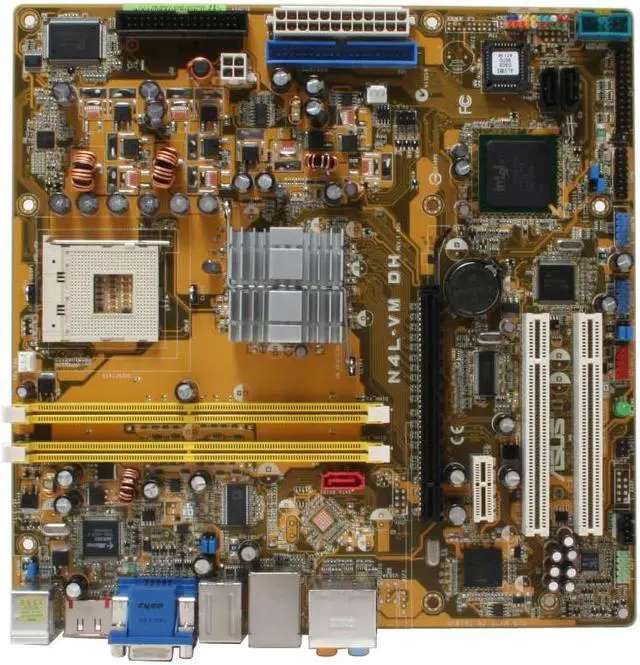

Main image of ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 2 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 3 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 4 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 5 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 6 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 7 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 8 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Alt view image 9 of 9 - ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Shop All ASUS Products

ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Name: ASUS N4L-VM DH Socket 479 Micro ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813131007
Rating: 4 (28 reviews)

(28) Write a Review

Intel 945GM
Core Duo / Core Solo Mobile
DDR2 667

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (28)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-510-739-3777
Support Website
View other products from ASUS

CPU Socket Type	Socket 479
CPU Type	Core Duo / Core Solo Mobile
FSB	667/533 MHz

Chipset	Intel 945GM
South Bridge	Intel ICH7-M DH

Number of Memory Slots	2x240pin
Memory Standard	DDR2 667
Maximum Memory Supported	2GB
Channel Supported	Dual Channel

PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1
PCI Slots	2 x PCI Slots

PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/Matrix RAID
Additional RAID Controller	Jmicron SATA controller

ASUS N4L-VM DH Socket 479 Intel 945GM Micro ATX Intel Motherboard

Learn more about the ASUS N4L-VM DH

Customer Reviews of the ASUS N4L-VM DH

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

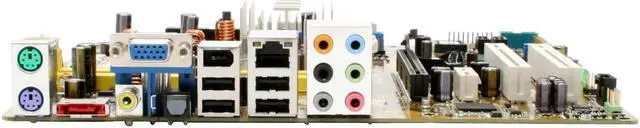

Back I/O Ports	1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1
PS/2	2
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
IEEE 1394	1 x IEEE 1394a
eSATA	1 x eSATA 3Gb/s
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Onboard USB	2 x USB 2.0 connectors support additional 4 ports
Onboard 1394	1 x 1394a connector supports 1 port

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin

Model
Brand	ASUS
Model	N4L-VM DH

Onboard Audio
Audio Chipset	Realtek ALC882M
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel 82573L
Max LAN Speed	1Gbps

Item#: N82E16813131007
