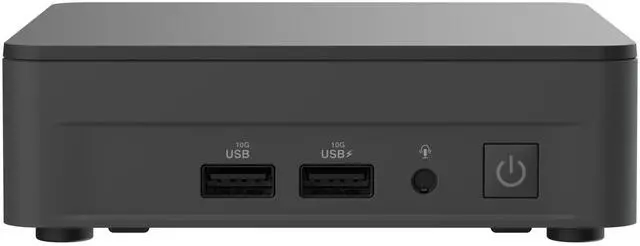

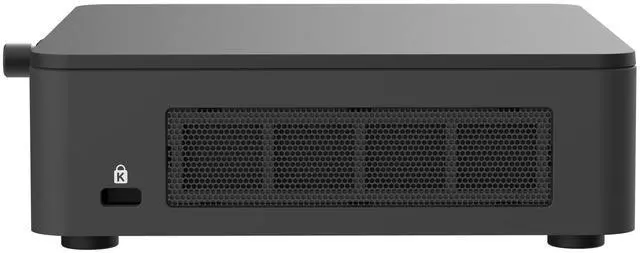

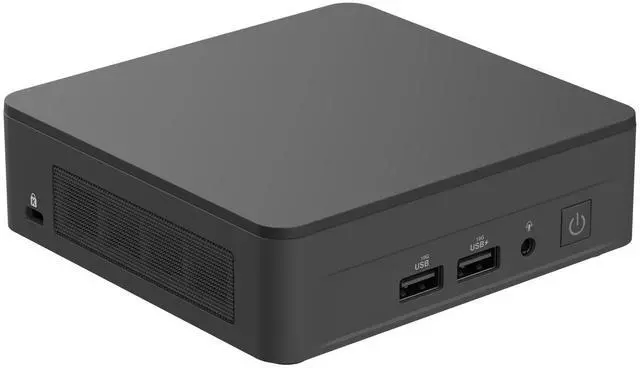

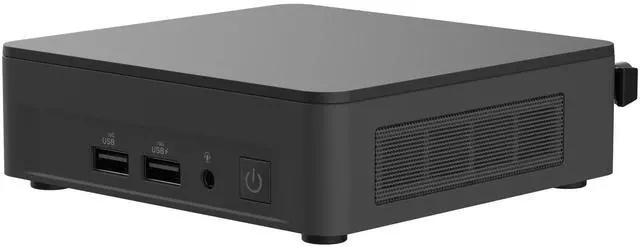

ASUS NUC 13 Pro Slim Barebone Kit Mini PC with Intel 13th Gen Core i5-13420H, Dual channel DDR4 RAM, Dual Storage Design, Thunderbolt 4, Wi-Fi 6E & Bluetooth 5.3, VESA Mount included
Performance: Powered by a 13th Gen Intel Core i5-13420H processor with integrated Intel UHD Graphics
Compact Design: Maximize productivity without sacrificing space, the ultrasmall 4x4 form factor enables easy setup on walls or behind monitors with the included VESA mount
Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel Ethernet port, Bluetooth, and Intel Wi-Fi 6E (Gig+)
Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt 4 Type-C ports for a variety of digital signage and display usages
Robust Capabilities: Qualified for 24/7 operation and equipped with a Kensington Lock and Cable Locking Arm for additional security
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Performance: Powered by a 13th Gen Intel Core i5-13420H processor with integrated Intel UHD Graphics
Compact Design: Maximize productivity without sacrificing space, the ultrasmall 4x4 form factor enables easy setup on walls or behind monitors with the included VESA mount
Connectivity: Wired and wireless connections are lightning fast with the onboard 2.5Gbps Intel Ethernet port, Bluetooth, and Intel Wi-Fi 6E (Gig+)
Multi-Monitor Support: Connect up to one 8K or quad 4K@60Hz displays with dual HDMI and dual DP via Thunderbolt 4 Type-C ports for a variety of digital signage and display usages
Robust Capabilities: Qualified for 24/7 operation and equipped with a Kensington Lock and Cable Locking Arm for additional security
Learn more about the ASUS NUC13ANKH5
General
Brand
ASUS
Series
NUC 13 Pro
Model
NUC13ANKH5
Form Factor
Slim
CPU Supported
CPU Type
Intel Core i5-13420H
CPU Cores
8-Core (4P+4E)
Memory Supported
Memory installed
No Memory
Memory slot
2 x 260Pin SO-DIMM
Memory Type Supported
DDR4 3200
Max Memory Supported
64GB
Dual Channel Memory Supported
Yes
Storage
Hard Drive Installed
No Hard Drive
M.2
1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M) 1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Graphics
Integrated Graphics
Intel UHD Graphics
Audio
Onboard Audio
Realtek ALC269
Channel
2 Channel
Communications
LAN
Intel i226V
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
Intel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi Generation
Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Extension Bays
2.5" Internal Bays
1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)
Front Panel Ports
Front USB
1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports
1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)

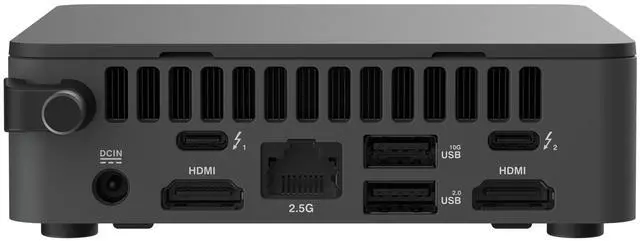

Back Panel Ports
HDMI
2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt
2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ45
1 x Intel 2.5G LAN (RJ45)
Other Rear Ports
1 x Kensington Lock Slot 1 x Cable Locking Arm 1 x DC-in
Power Supply
Power Supply
120W Power Adapter
Physical SPEC
Dimensions
4.61" x 4.41" x 2.13"
Weight
1.3 lbs
Packaging
Packaging
VESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA
Additional Information
First Listed on Newegg
October 31, 2025
Customer Reviews of the ASUS NUC13ANKH5
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
