ASUS NUC 15 Pro+ Barebone Mini PC with Intel Series 2 Core Ultra 9 285H, 2x DDR5 SO-Dimm Slots, Dual Storage Design, Thunderbolt™ 4, Wi-Fi 7, Aluminum Chassis - Memory and Storage Sold Separately
2 x 262Pin SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
(No memory included at shipment, Max capacity support 96GB)
M.2 2280 PCIe 4.0 | M.2 2242 PCIe 4.0
2.5G Ethernet Port
Wi-Fi 7 (802.11be) | Bluetooth 5.4
Thunderbolt 4 | USB 3.2 Gen 2 & 2x2
HDMI 2.1 | USB 2.0
Includes US Power Cord & VESA Bracket
Ultra-Quiet Cooling
Elite Connectivity: Experience ultra-fast, seamless connections with Intel® Wi-Fi 7, Wi-Fi Proximity Sensing, and Bluetooth® 5.4, delivering up to 2.4X faster transfer rates and ensuring uncompromised performance across devices

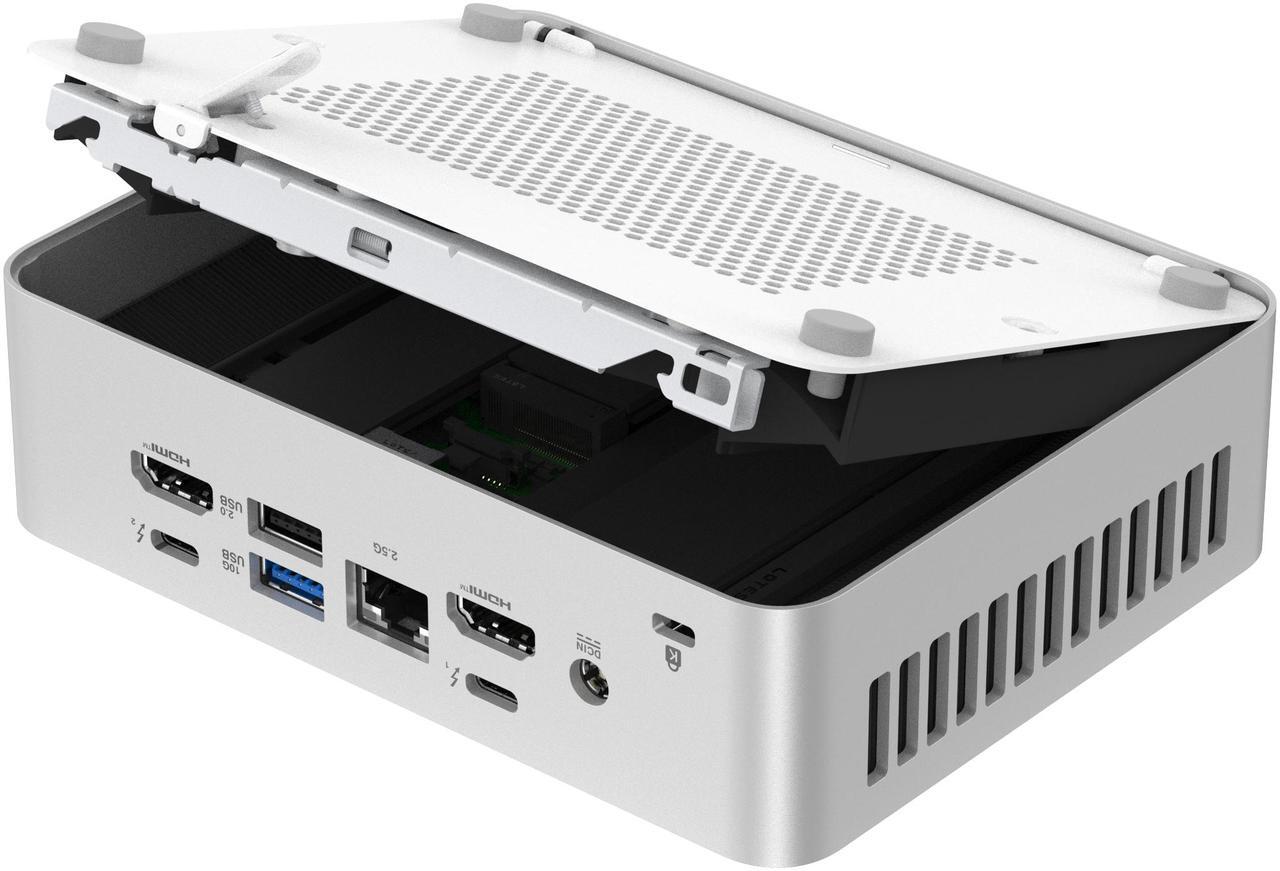

Exquisite Design, Effortless Upgrades: The 0.7L chassis combines sleek, luxury aesthetics with a toolless upgrade system, offering elegance alongside ease of customization
Immersive Display Brilliance: Supports up to four 4K displays via dual HDMI 2.1 and Thunderbolt™ 4 ports
Sponsored
You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.
has Dedicated AI cores. AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, ONNX RT, DirectML, WebNN
CPU Supported
CPU Type
cTDP 65W ,16-Core: 2.9 to 5.4 GHz Performance (6 Cores) 2.7 to 4.5 GHz Efficiency (8 Cores) 1 to 2.5 GHz Low Power Efficiency (2 Cores) L3 Cache 24MB Processor Base Power 45 W Maximum Turbo Power 115 W Minimum Assured Power35 W
CPU Socket
BGA 2049
Memory Supported
Memory installed
No Memory
Memory slot
2 x 262Pin SO-DIMM
Memory Type Supported
SO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported
Max Capacity: via 48GB DDR5-5600 SO-DIMM x 2 (total 96GB) or via 48GB DDR5-6400 CSO-DIMM x 2 (total 96GB)
Storage
Hard Drive Installed
No Hard Drive
M.2
1 x M.2 2280 PCIe NVMe SSD (empty) support (128GB~8TB M.2 2280 NVMe™ PCIe® 5.0 x 4 SSD (Core Ultra Series CPU))
1 x M.2 2242 PCIe Gen4x4 NVMe SSD (empty) support 128GB~8TB
Graphics
Intergrated Graphics
Intel® Arc™ GPU (Core Ultra) *Intel® Arc™ GPU requires using 2 x SO-DIMM
Communications
LAN
Intel® Ethernet Controller I226-V, 2.5G
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
802.11be
WiFi Generation
Wi-Fi 7
Bluetooth
*Bluetooth® version may change with different OS version.

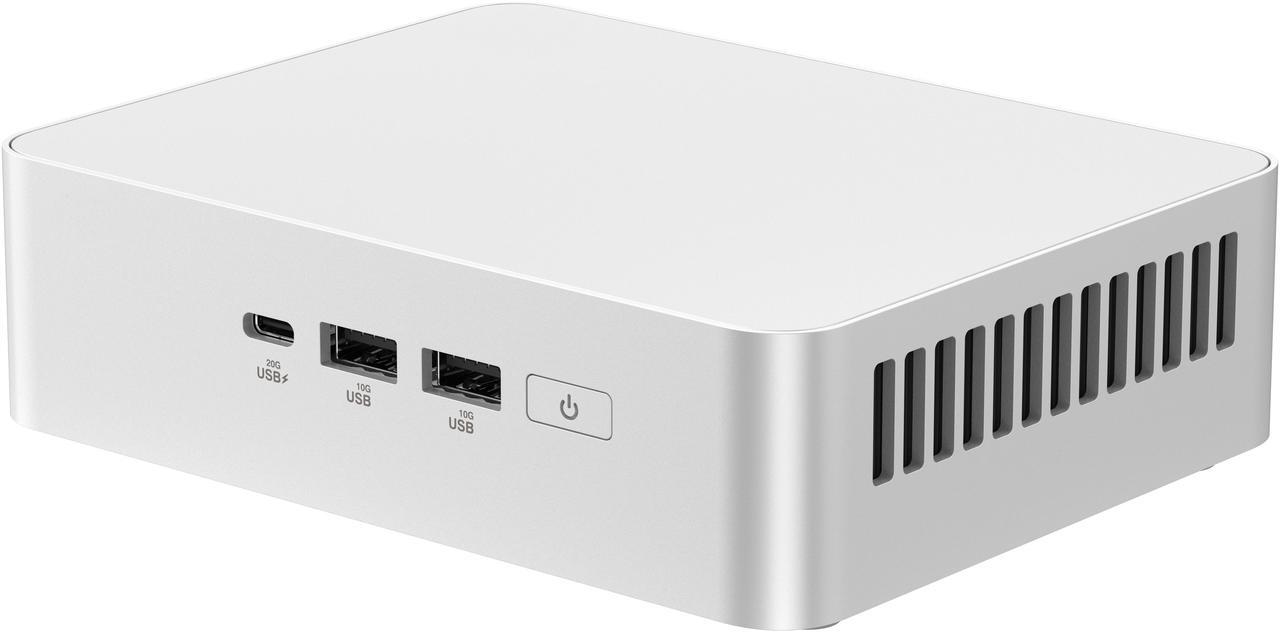

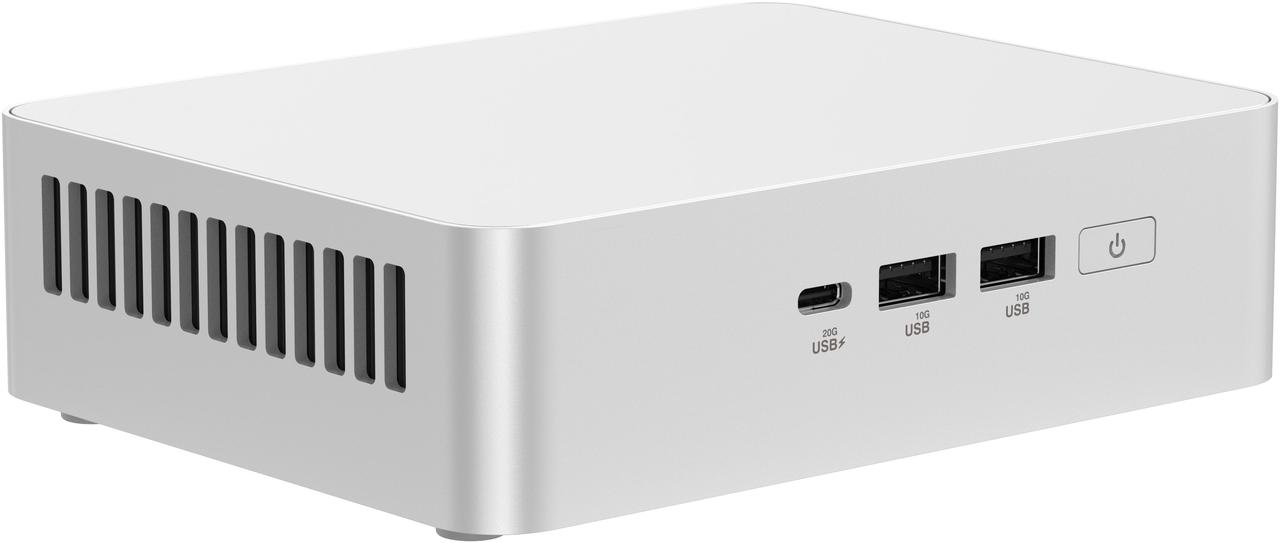

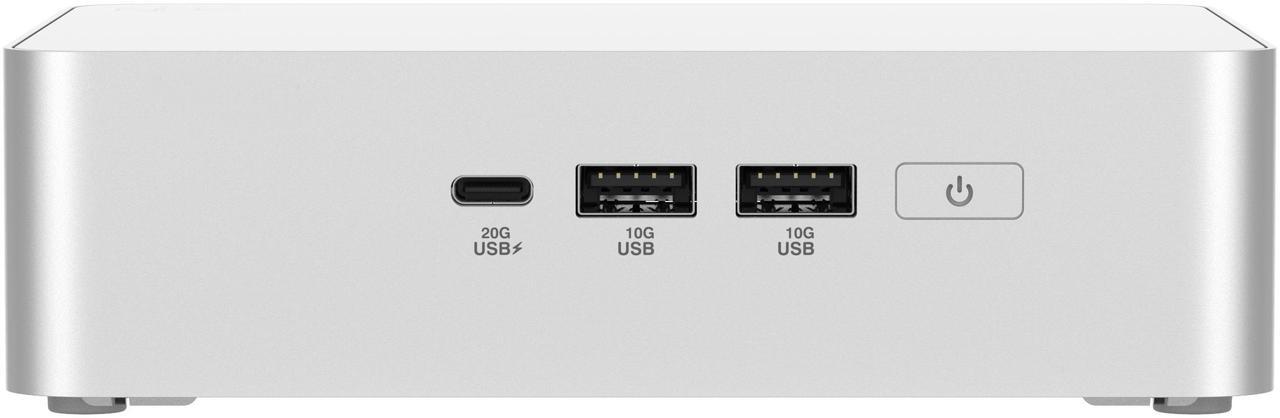

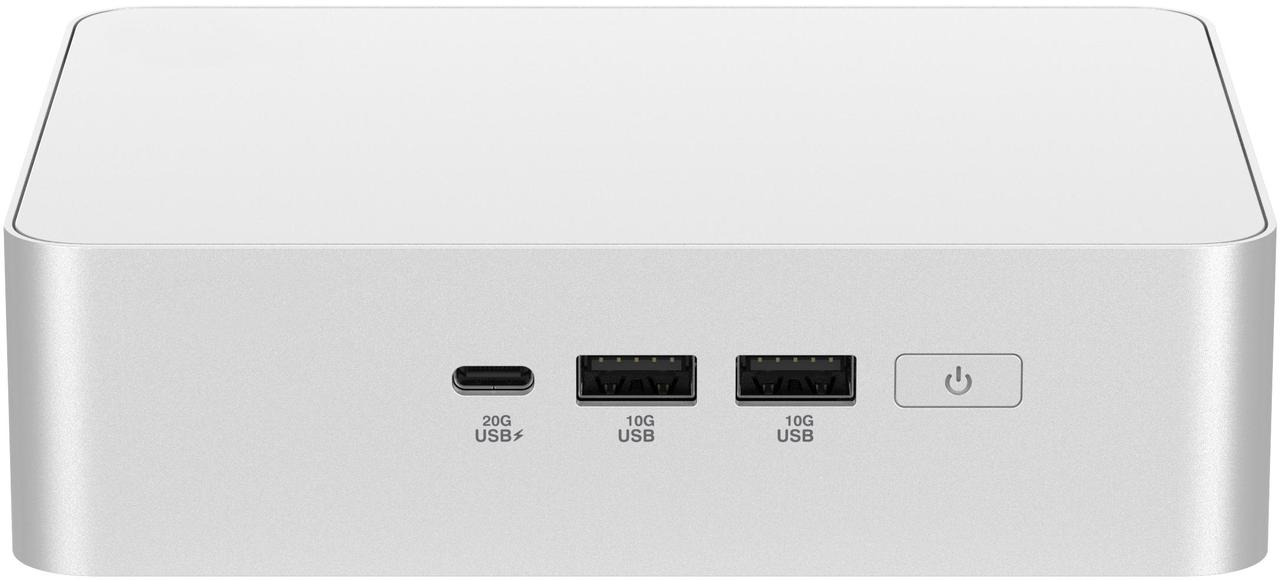

Front Panel Ports
Front USB
1 x USB 3.2 Gen2x2 Type-C 2 x USB 3.2 Gen2 Type-A

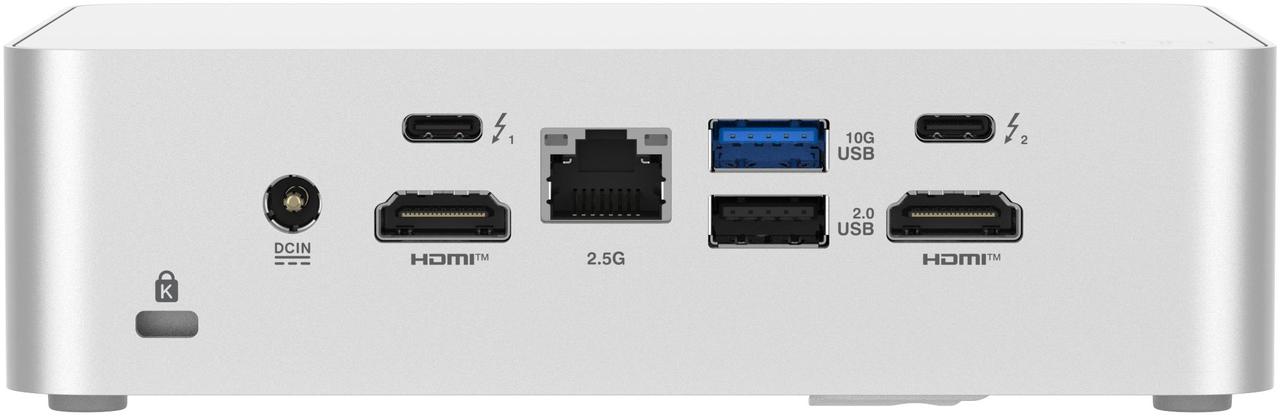

Back Panel Ports
HDMI
2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt
2 x Thunderbolt 4 (include DisplayPort 2.1 and USB4)
Rear USB
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ45
1
Power Supply
Input
19.5VDC, 7.69A,
Power Supply
150W Power Adapter (Core Ultra 9)
Physical SPEC
Dimensions
5.67" x 4.41" x 1.65" (Net product)
Weight
1.52 lbs.
Material
Toolless Silver Aluminum Chassis
Features
Features
No preinstalled OS Support: Windows 11 RedHat Enterprise Linux Ubuntu 24.04 LTS
Packaging
Packaging
VESA Mount & Screws / AC Power Adapter/ Power CordAC Adapter+Power Cord/ Safety/Caution/Regulatory Insert Warranty Card
