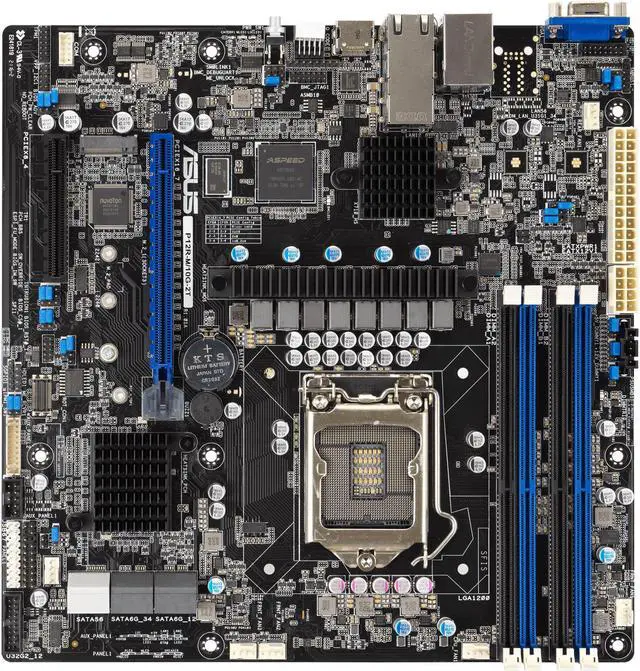

ASUS P12R-M/10G-2T uATX Server Motherboard LGA 1200 Intel C252
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel X710AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Processor / System Bus 1 x Socket LGA1200 Intel® Pentium® Processors Intel® Xeon® E processors Core Logic Intel® C252 Chipset
Memory Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: 3200/2933/2666 UDIMM
Memory Size: 32GB, 16GB, 8GB, 4GB * Refer to support page for more information
Expansion Slots Total Slot: 2 Slot
Location 4: PCI-E x8 (Gen4 X4 Link) Slot
Location 6: PCI-E x16 (Gen4 X16 Link) Form Factor U ATX ( 9.6" x 9.6", 244mm x 244mm)
Storage Storage Controller: 6 x SATA3 6Gb/s ports Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 )
SAS Controller: ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB 3.2 Gen2 ports 1 x USB 3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M. 2 Connector 1 x VGA Header 1 x Onboard header for optional management card Back I/O Ports 2 x USB 3.2 Gen 2 1 x VGA Port 1 x HDMI Port 2 x 10 GbE LAN + 1 x Mgmt LAN Management Solution ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet Weight Gift Box (1-in-1)
Net Weight: 0.76
KG Gross Weight: 1.3 KG Bulk
Pack (10-in-1) Net Weight: 6.9
KG Gross Weight: 9.5 KG
Environment Operation temperature: 10 ~ 50*
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec. If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 Monitoring CPU Temperature Fan RPM
Memory Total Slots: 4 (2-channel)
Capacity: Maximum up to 128GB UDIMM
Memory Type: 3200/2933/2666 UDIMM
Memory Size: 32GB, 16GB, 8GB, 4GB * Refer to support page for more information
Expansion Slots Total Slot: 2 Slot
Location 4: PCI-E x8 (Gen4 X4 Link) Slot
Location 6: PCI-E x16 (Gen4 X16 Link) Form Factor U ATX ( 9.6" x 9.6", 244mm x 244mm)
Storage Storage Controller: 6 x SATA3 6Gb/s ports Intel®VROC (For Linux/Windows) (Support Software RAID 0/1/5/10 )
SAS Controller: ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card Networking 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1 x Mgmt LAN Graphic Aspeed AST2600 with 64MB VRAM On Board I/O 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB 3.2 Gen2 ports 1 x USB 3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M. 2 Connector 1 x VGA Header 1 x Onboard header for optional management card Back I/O Ports 2 x USB 3.2 Gen 2 1 x VGA Port 1 x HDMI Port 2 x 10 GbE LAN + 1 x Mgmt LAN Management Solution ASUS Control Center Enterprise (Optional) Optional ASMB10-iKVM for KVM-over-Internet Weight Gift Box (1-in-1)
Net Weight: 0.76
KG Gross Weight: 1.3 KG Bulk
Pack (10-in-1) Net Weight: 6.9
KG Gross Weight: 9.5 KG
Environment Operation temperature: 10 ~ 50*
Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing) *The boundary condition above is based on 8.3W of PCH TDP spec. If the LFM estimate is higher than acceptable value from customer, ASUS can provide boundary condition with raw power for reference. Accessories Gift Box (1-in-1) 2 x Support CD 1 x I/O shield 6 x SATA 6G cables 4 x Plate for LGA1200 Bulk Pack (10-in-1) 2 x Support CD 1 x I/O shield 1 x Plate for LGA1200 Monitoring CPU Temperature Fan RPM
