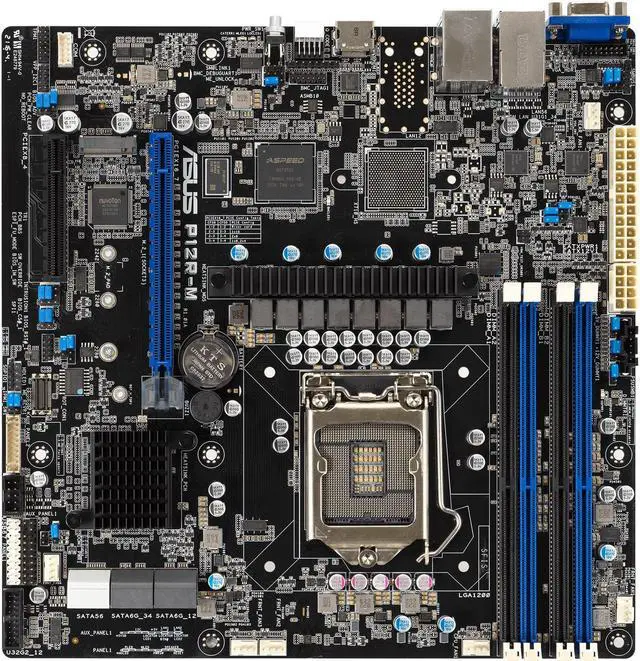

Alt view image 5 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Alt view image 6 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Alt view image 7 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Alt view image 8 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Alt view image 9 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Alt view image 10 of 10 - Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Shop All ASUS Products

Intel® Xeon® E-2300 LGA 1200 Micro-ATX server motherboard with four DIMM and one M.2 slot, plus dual LAN, six SATA, one HDMI, two PCIe 4.0 slots, two USB 3.2 Gen 2, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM

Be the first to review this product...

Ideal for remote office/branch office (ROBO) use and everyday business environments
Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
Dual Intel I210AT Gigabit Ethernet with teaming support
One M.2 for up to 32 Gbps performance for faster OS booting
HDMI 1.4 support for high-resolution display maintenance and monitoring
Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	P12R-M

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports Intel Pentium / Xeon E processors

Chipsets
North Bridge	Intel C252

Memory
Number of DDR4 Slots	4 x 288-pin
DDR4 Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	Slot Location 6 : PCI-E x16 (Gen4 X16 Link)
PCI Express x8	Slot Location 4 : PCI-E x8 (Gen4 X4 Link)

Storage Devices
SATA	6 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	1 x M.2 connector (2280/2260/2242)

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Onboard LAN
LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps
Second LAN Chipset	Intel I210-AT
Second LAN Speed	10/100/1000Mbps

Rear Panel Ports
Back I/O Ports	2 x USB 3.2 Gen 2 1 x VGA Port (VGA from BMC) 1 x HDMI Port (useable only with iGPU) 2 x GbE LAN + 1 x Mgmt LAN

Onboard Ports
Other Connectors	1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 2 x USB3.2 Gen2 ports 1 x USB3.2 Gen1 header 1 x USB 2.0 pin header 6 x Fan Header, 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector 1 x VGA Header 1 x Onboard header for optional management card

Dimensions
Form Factor	uATX
Dimensions (W x L)	9.6" x 9.6"
