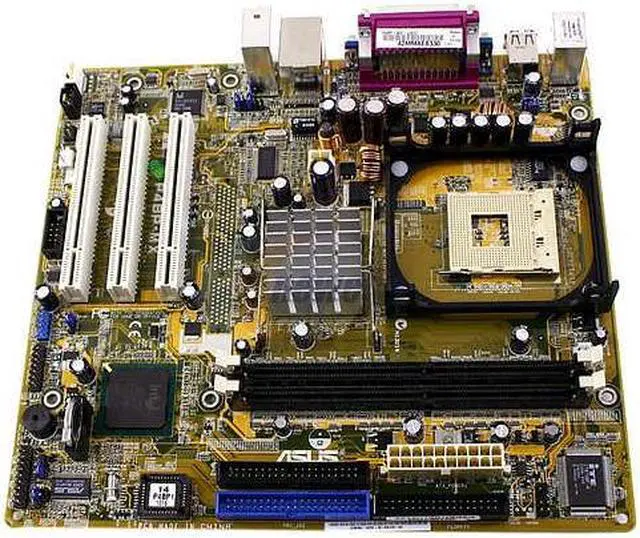

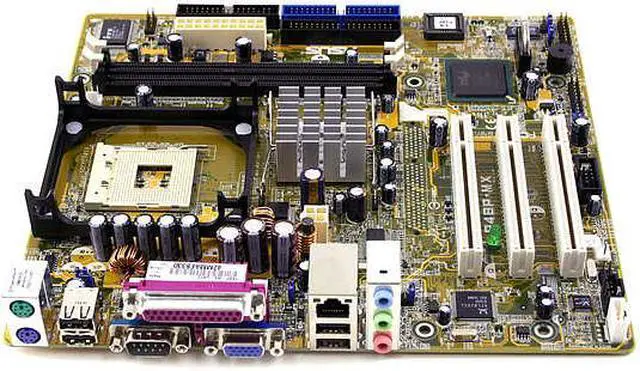

P4BP-MX Socket 478 Intel 845GV Micro ATX Intel Motherboard
- Intel 845GV
- Pentium 4 / Celeron
- DDR 333
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P4BP-MX
| Model | P4BP-MX |
|---|
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 / Celeron |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | Intel 845GV |
|---|---|
| South Bridge | Intel ICH4 |
| Onboard Video Chipset | Intel Extreme Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 333 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | None |
|---|---|
| PCI Slots | 3 x PCI Slots |
| Audio Chipset | Realtek ALC655 |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| First Listed on Newegg | May 10, 2004 |
|---|
