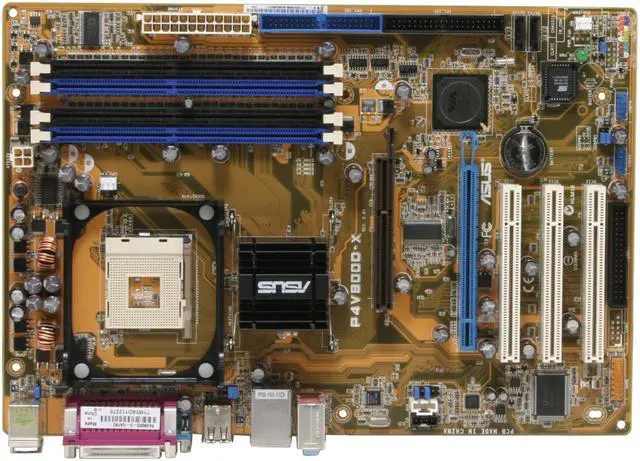

ASUS P4V800D-X Socket 478 VIA PT880 Ultra ATX Intel Motherboard
- VIA PT880 Ultra
- Pentium 4 Prescott / Celeron
- DDR 400
Specs
Reviews (11)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P4V800D-X
| Brand | ASUS |
|---|---|
| Model | P4V800D-X |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | VIA PT880 Ultra |
|---|---|
| South Bridge | VIA VT8237R+ |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | 1 (x4 mode only) |
| PCI Slots | 3 x PCI Slots |
| SATA RAID | 0/1 |
|---|
| Audio Chipset | ADI AD1888 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek |
|---|---|
| Max LAN Speed | 100Mbps |

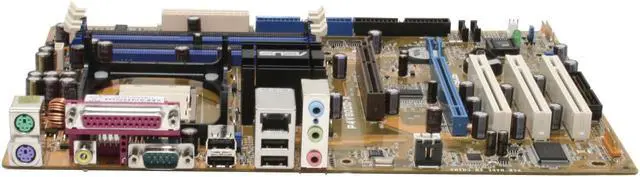

| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.2" |
| Power Pin | 24 Pin |

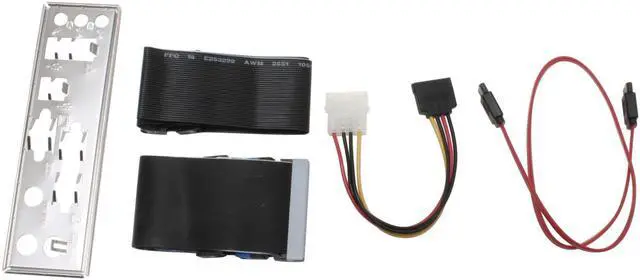

| Package Contents | P4V800D-X Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable |
|---|
| First Listed on Newegg | February 01, 2007 |
|---|
