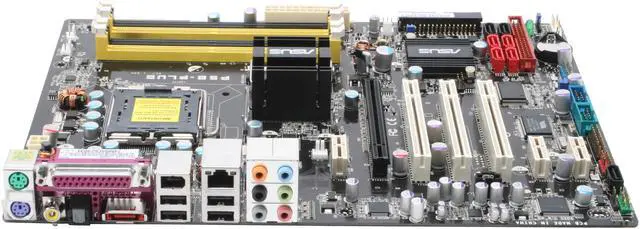

ASUS P5B-Plus LGA 775 Intel P965 Express ATX Intel Motherboard
- Intel P965 Express
- Core 2 Duo / Core 2 Quad
- DDR2 800
Specs
Reviews (56)
Learn more about the ASUS P5B-Plus
| Brand | ASUS |
|---|---|
| Model | P5B-Plus |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Duo / Core 2 Quad |
| FSB | 1066/800 MHz |
| Chipset | Intel P965 Express |
|---|---|
| South Bridge | Intel ICH8R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA100 2 Dev. Max |
|---|---|
| PATA RAID | 0/1 |
| SATA RAID | 0/1/5/10 Matrix RAID |
| Additional RAID Controller | JMicron JMB363 |
| Audio Chipset | ADI AD1988 |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| eSATA | 1 x eSATA 3Gb/s |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 6 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0"x 9.0" |
| Power Pin | 24 Pin |

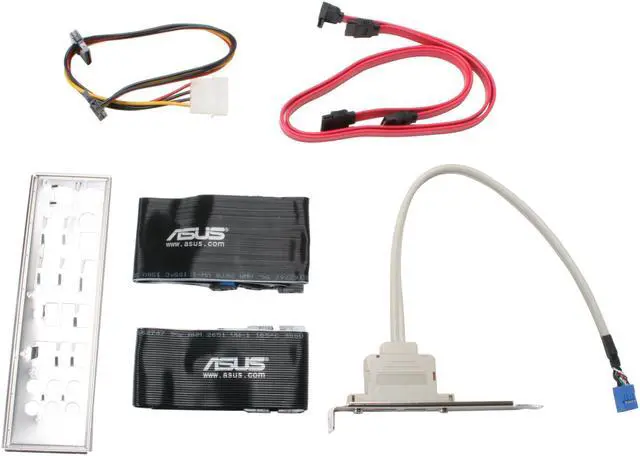

| Package Contents | P5B-Plus Driver Disk User Manual Software Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable USB Bracket |
|---|
| 3G | Only motherboard! Without any other accessories! |
|---|
| First Listed on Newegg | April 25, 2007 |
|---|
