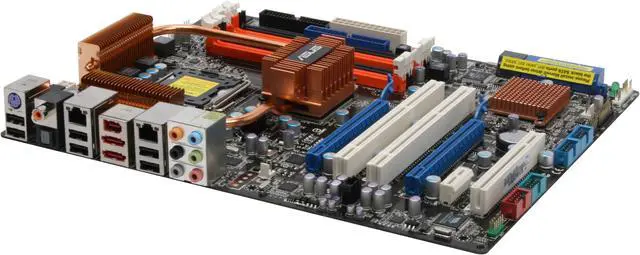

ASUS P5E3 WS PRO LGA 775 Intel X38 ATX Intel Motherboard

(26) Write a Review
  • Intel X38
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • DDR3 1333
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (26)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASUS P5E3 WS PRO

Model
Brand ASUS
Model P5E3 WS PRO
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1600/1333 MHz
Chipsets
Chipset Intel X38
South Bridge Intel ICH9R
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 1333
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 x PCI Express 2.0 x16
PCI Express x1 1 x PCI Express x1
PCI Slots 1 x PCI Slot
Other Slots 2 x PCI-X
Storage Devices
PATA 1 x ATA100 2 Dev. Max
Onboard Audio
Audio Chipset ADI AD1988B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8056
Second LAN Chipset Marvell 88E8056
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 6 x USB 2.0/1.1
PS/2 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 2 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

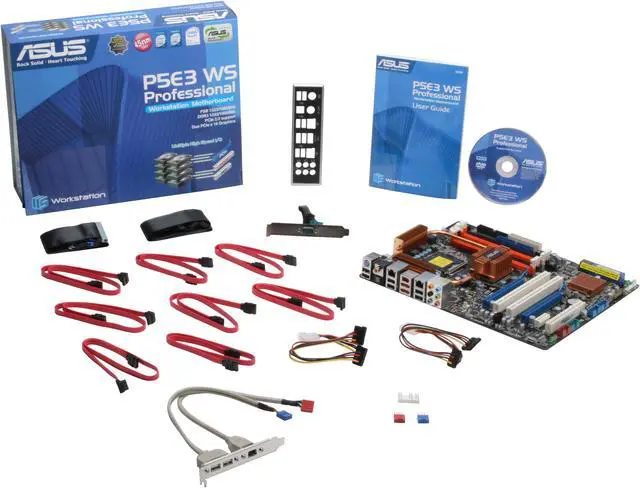

Package Contents Users Manual
8 x SATA Cable
2 x 4Pin to SATA Power Cable
1 x COMs Riser
1 x USB/IEEE1394 Riser (2 Port/1 Port)
1 x IDE
1 x Floppy
Backplate‚Driver CD
Details
Windows Vista Certified for Windows Vista
Additional Information
First Listed on Newegg April 14, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
