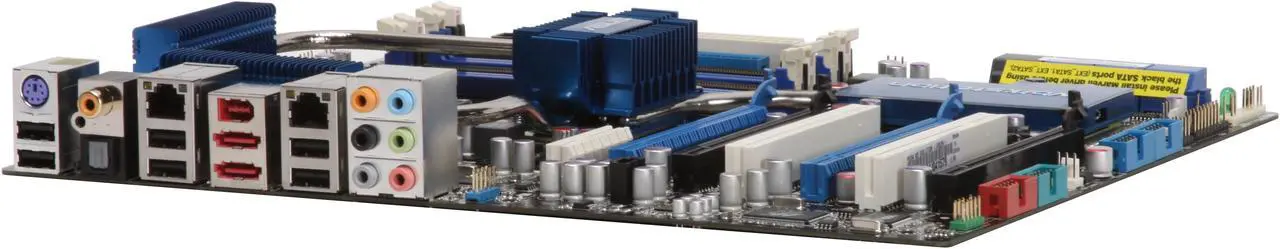

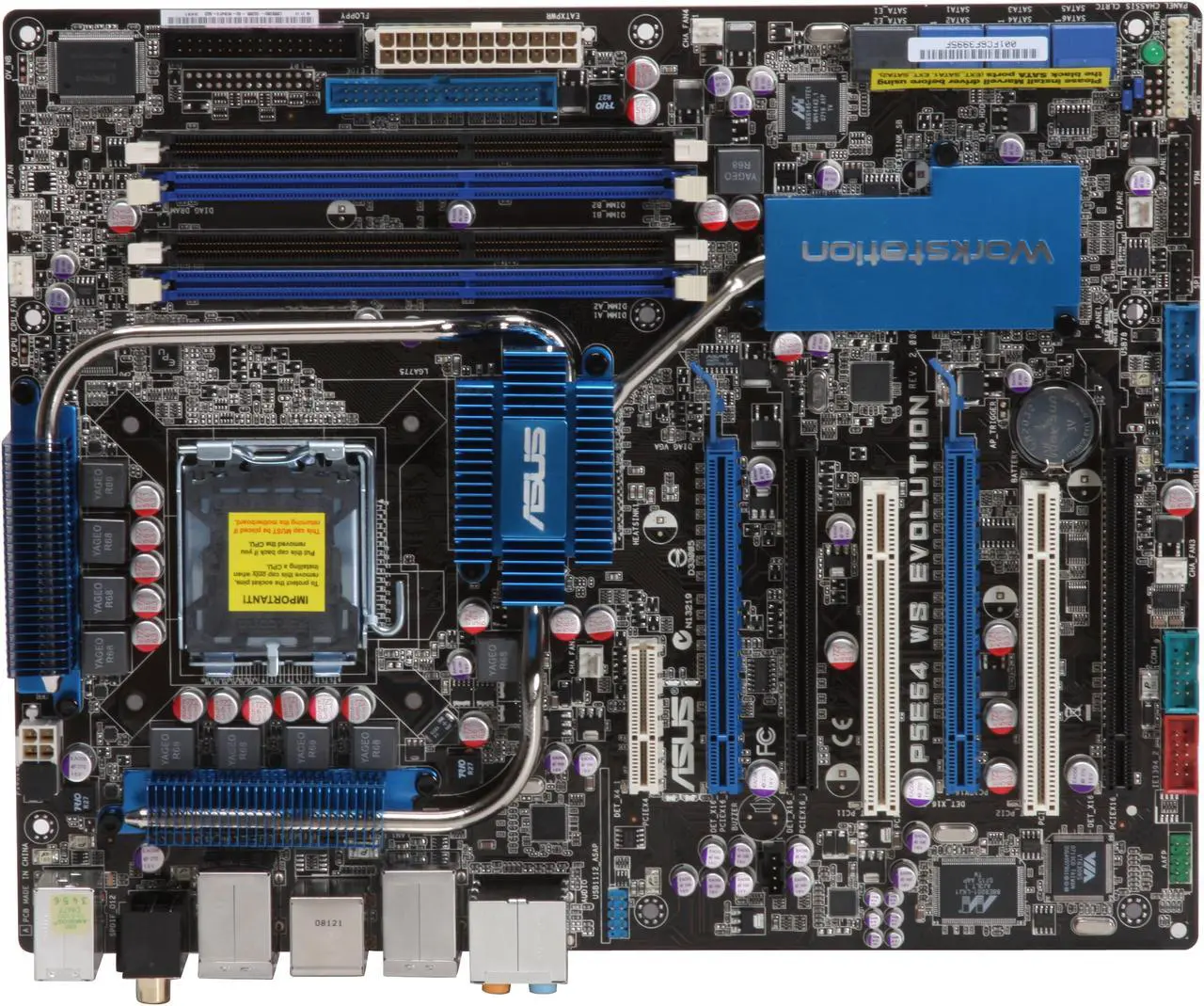

Learn more about the ASUS P5E64 WS EVOLUTION
Model
Brand
ASUS
Model
P5E64 WS EVOLUTION
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB
1600/1333 MHz
Chipsets
Chipset
Intel X48
South Bridge
Intel ICH9R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 1800(O.C.) / 1600 (O.C.) / 1333
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
4 x PCIe x16 (@ x16, x16, x4, x4)
PCI Express x4
1 x PCI Express x4
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
ADI AD1988B
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Marvell 88E8056
Second LAN Chipset
Marvell 88E8001
Max LAN Speed
2 x 1Gbps
Rear Panel Ports

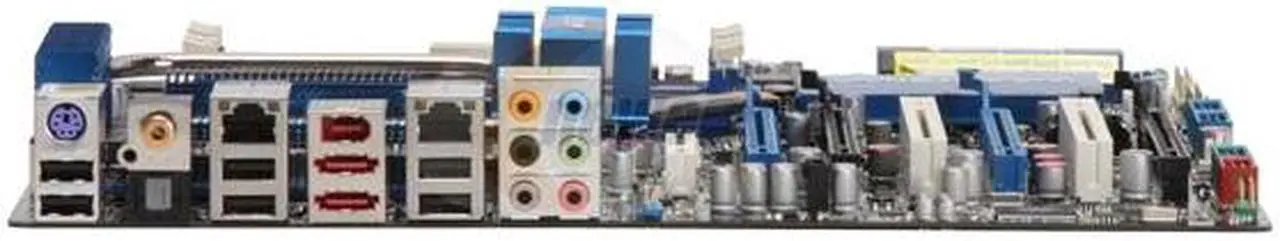

Back I/O Ports
1 x Optical S/PDIF Out / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 2 x eSATA 3GB/S / 6 x USB 2.0/1.1
PS/2
1
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
eSATA
2 x eSATA 3Gb/s
S/PDIF Out
1 x Optical, 1 x Coaxial
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Onboard 1394
1 x 1394a
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Packaging

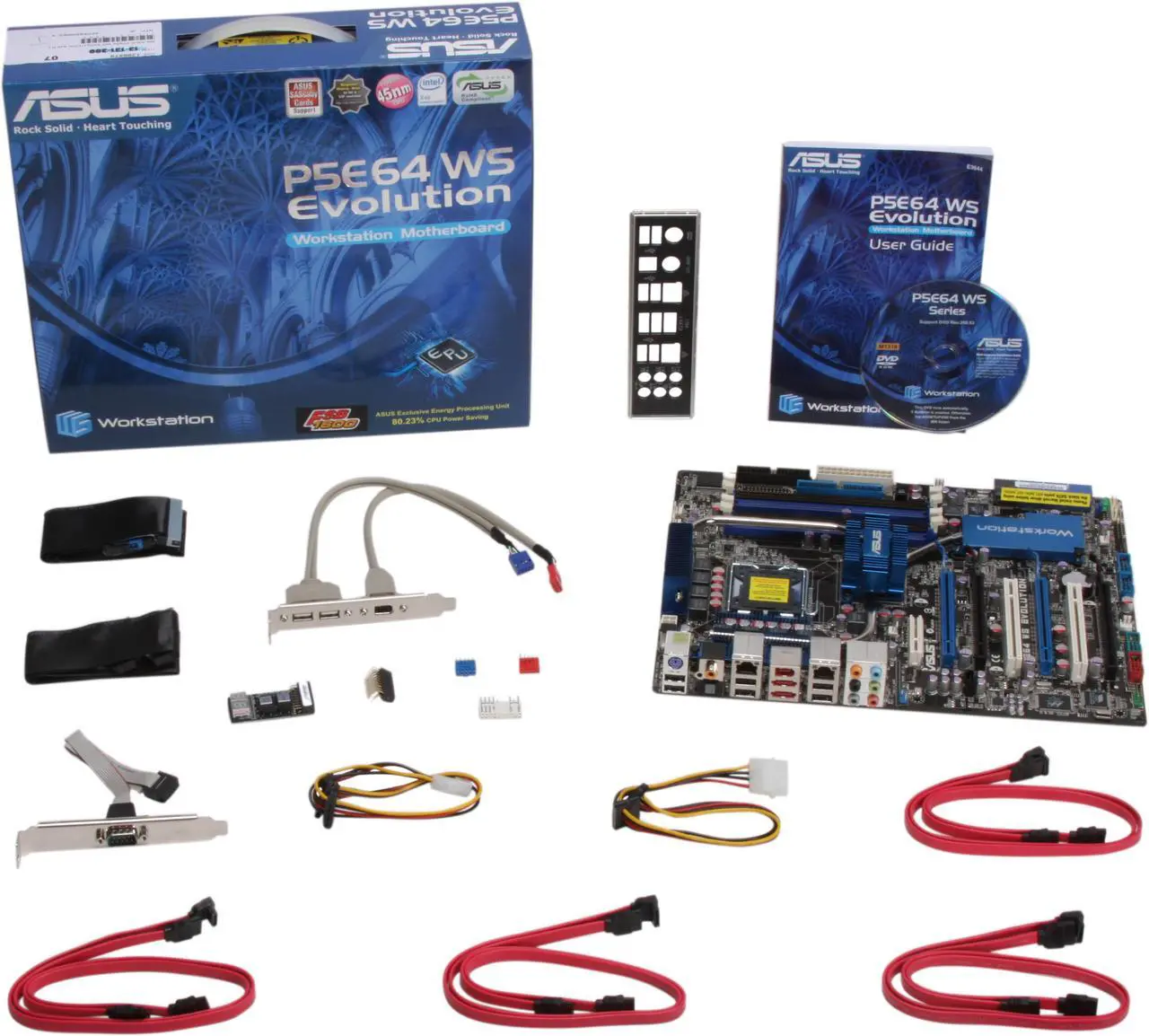

Package Contents
P5E64 WS EVOLUTION Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable COM Bracket IEEE 1394 & USB Bracket
