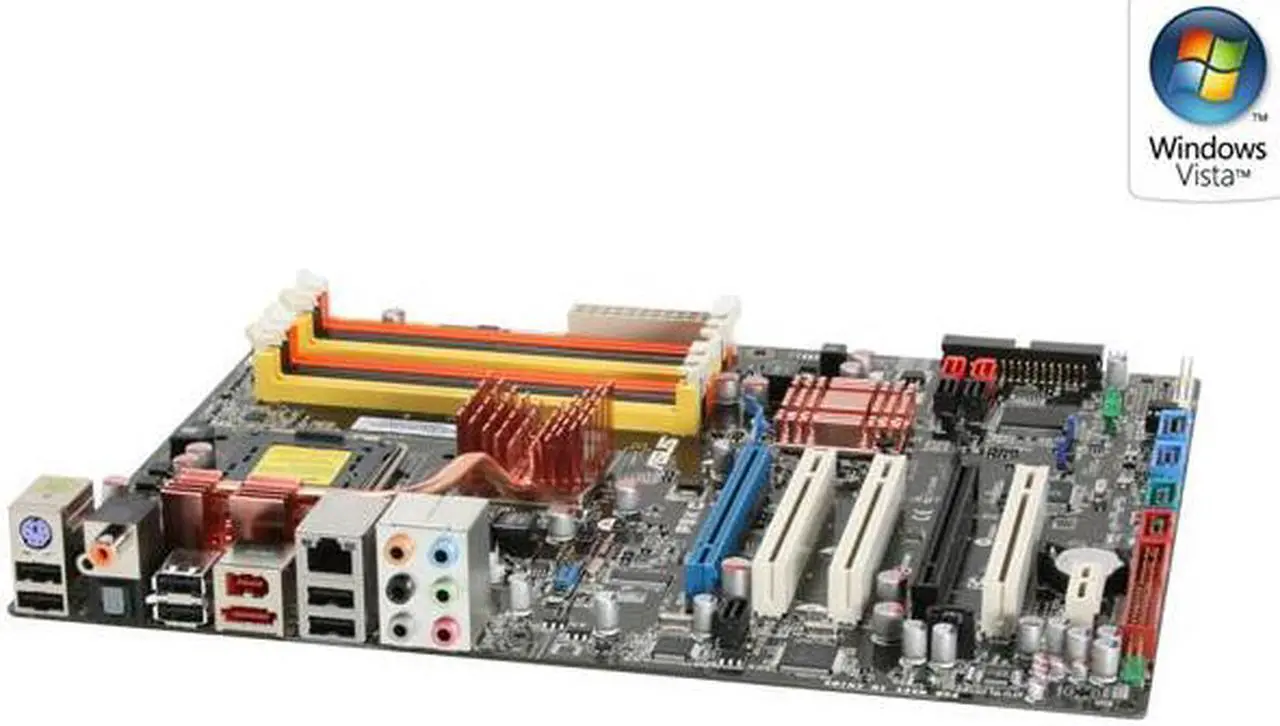

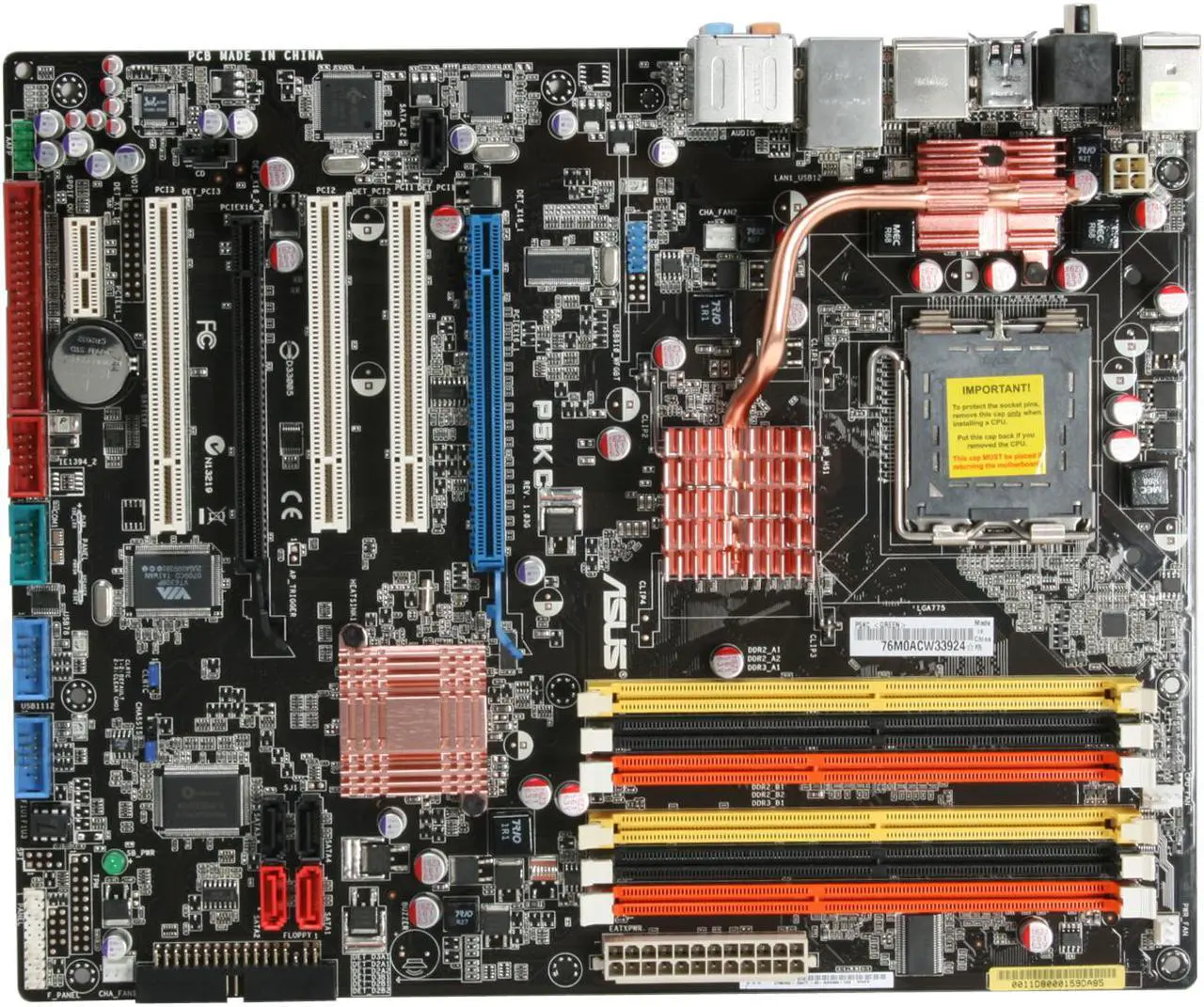

ASUS P5KC LGA 775 Intel P35 ATX Intel Motherboard

(98) Write a Review
  • Intel P35
  • Core 2 Quad / Core 2 Extreme / Core 2 Duo
  • 2 x DIMM, DDR3 1333/ 1066/ 800 MHz, non-ECC, un-buffered memory 4 x DIMM, DDR2 1066/ 800/ 667 MHz, non-ECC, un-buffered memory
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (98)

Learn more about the ASUS P5KC

Model
Brand ASUS
Model P5KC
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB 1333/1066 MHz
Chipsets
Chipset Intel P35
South Bridge Intel ICH9
Onboard Video
Onboard Video Chipset None
Memory
Number of Memory Slots 6x240pin
Memory Standard 2 x DIMM, DDR3 1333/ 1066/ 800 MHz, non-ECC, un-buffered memory
4 x DIMM, DDR2 1066/ 800/ 667 MHz, non-ECC, un-buffered memory
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI-E x16 (blue @ x16 mode, black @ x4 or x1 mode)
PCI Express x1 1 x PCI Express x1
PCI Slots 3 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1/JBOD
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps

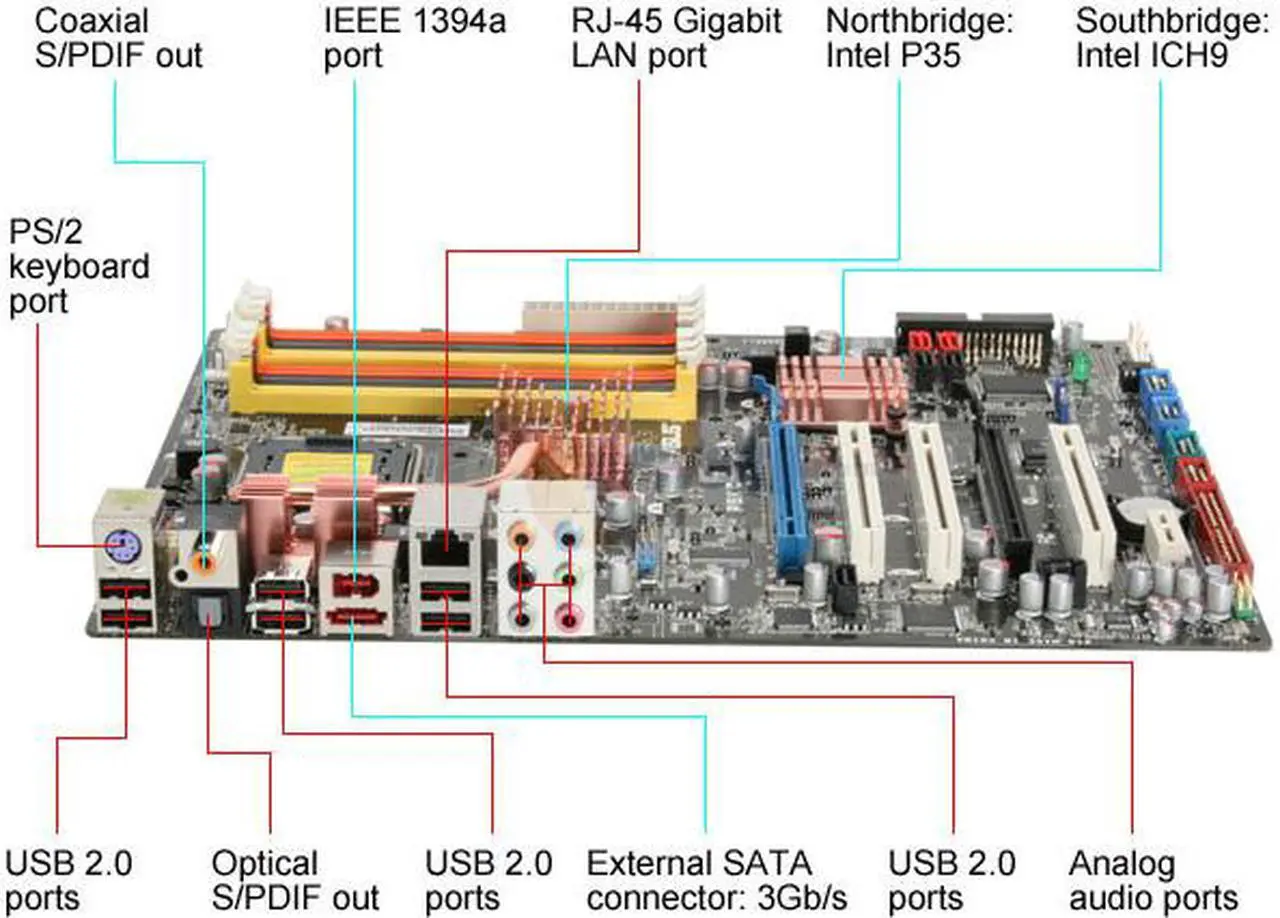

Rear Panel Ports
PS/2 1
USB 1.1/2.0 6 x USB 2.0
IEEE 1394 1 x IEEE 1394a
eSATA 1 x eSATA 3Gb/s
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 1 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Features
Features No expiration date
Native DDR3 1333 support
AI Gear 2
AI Slot Detector

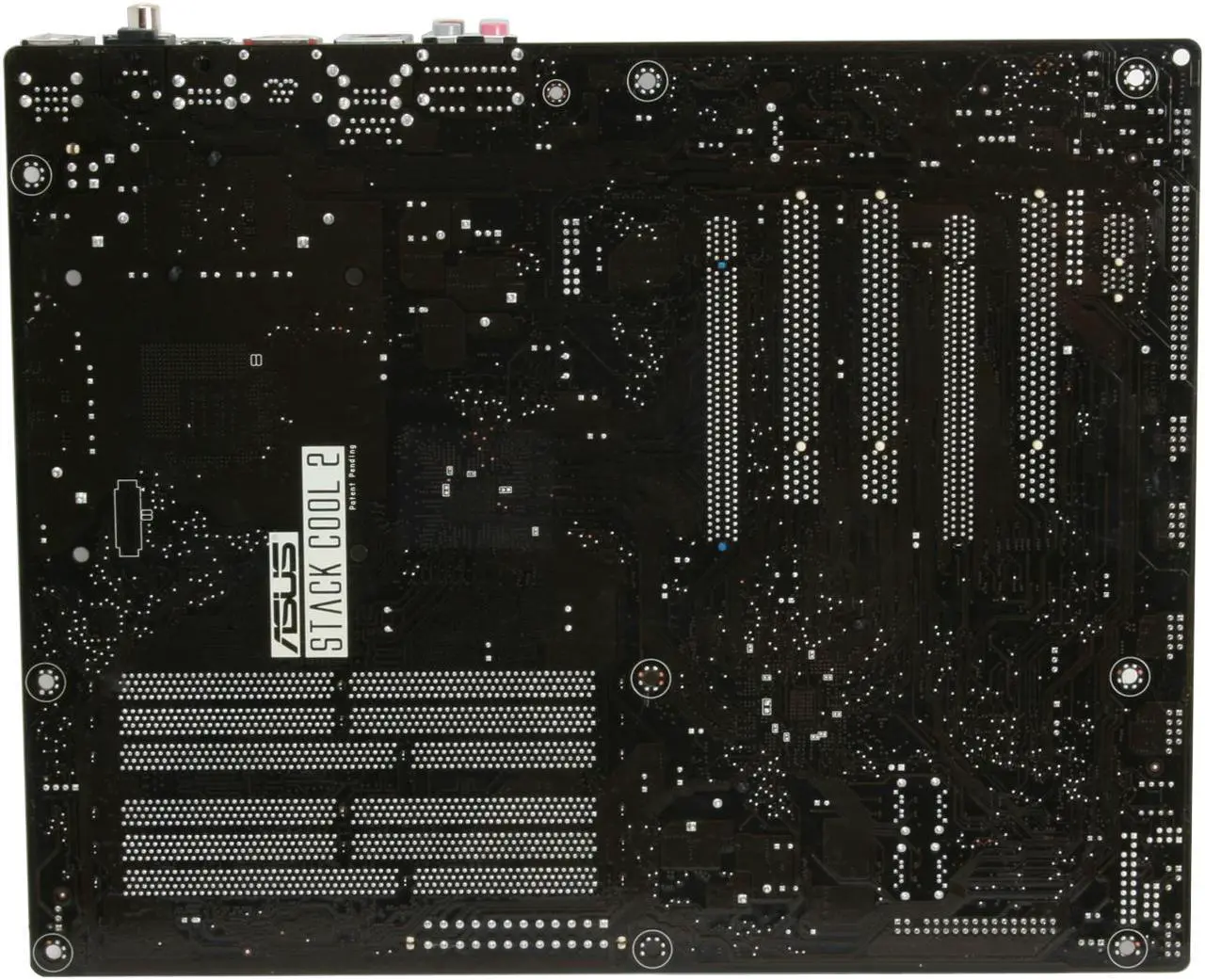

Stack Cool 2
EZ Flash 2 / Crash BIOS 3
Packaging

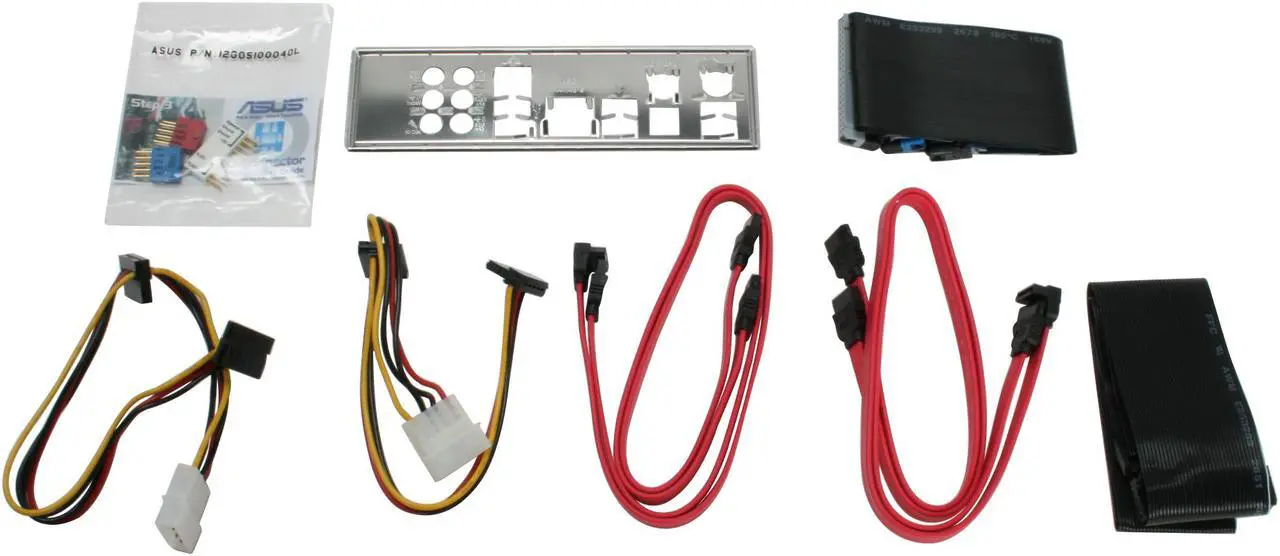

Package Contents P5KC
Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Details
Windows Vista Certified for Windows Vista
Additional Information
Date First Available July 11, 2007
