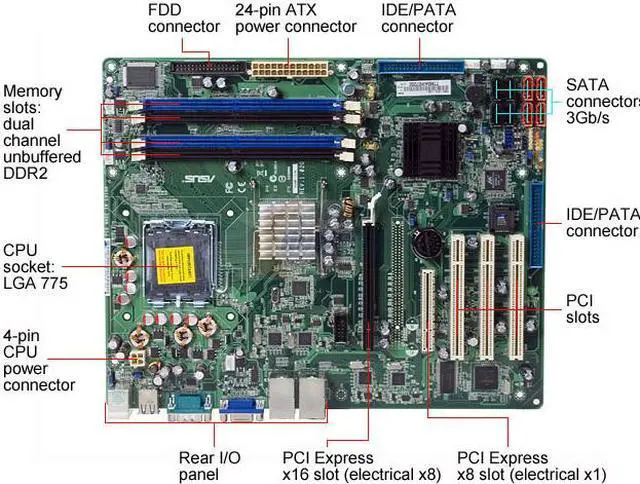

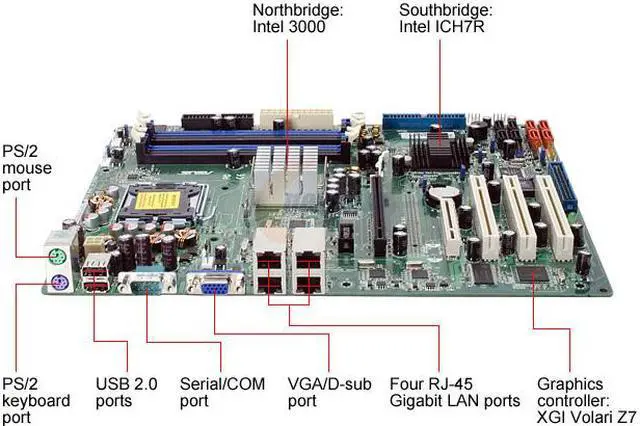

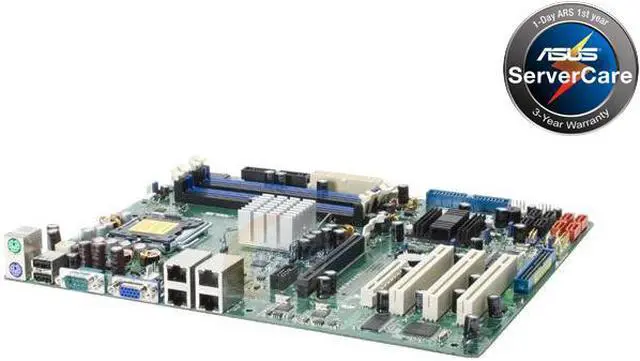

ASUS P5M2-E/4L ATX Server Motherboard LGA 775 Intel 3000 DDR2 667

(2) Write a Review
  • LGA 775
  • Intel 3000
  • 4 x 240Pin
Specs
Reviews (2)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASUS P5M2-E/4L

Model
Brand ASUS
Model P5M2-E/4L
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Xeon
Chipsets
North Bridge Intel 3000
South Bridge Intel ICH7R
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 8GB
Channel Supported Dual Channel
ECC Supported Yes
Expansion Slots
PCI Express x16 1 x PCI-E x16 slot (x8 link)
PCI Express x8 1 x PCI-E x8 slot (x1 link)
PCI Slots 3 x PCI Slots
Storage Devices
SATA 4 x SATA 3.0Gb/s
SATA RAID Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5 for Windows only
LSI MegaRAID driver supports software RAID 0, 1& 10 for Windows and Linux
Marvell 6145:
4 SATA2 300MB/s ports -
Support software RAID 0, 1& 10 for Windows and Linux
Onboard Video
Onboard Video Chipset XGI Volari Z7
Onboard LAN
LAN Chipset 4 x Marvell 8056
Max LAN Speed 4 x 1Gbps
Rear Panel Ports
PS/2 2
COM 1
Video Ports D-Sub
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Packaging
Package Contents P5M2-E/4L
8 x SATA Cable
2 x Power Cable
IDE/PATA Cable
FDD Cable
Rear I/O Panel Shield
User Manual
Driver Disk
Additional Information
First Listed on Newegg August 14, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
