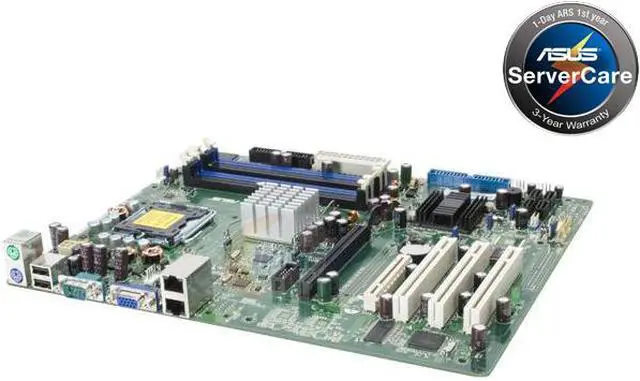

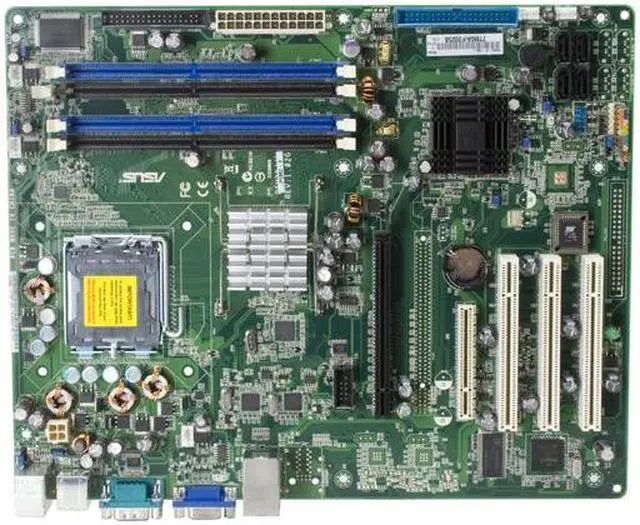

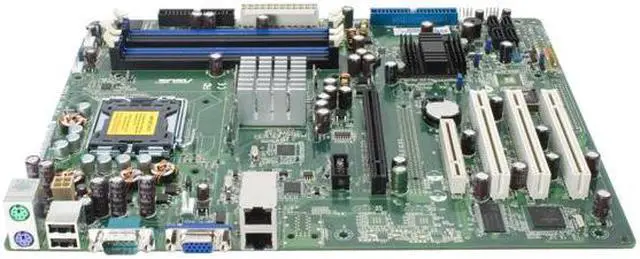

ASUS P5M2-E ATX Server Motherboard LGA 775 Intel 3000 DDR2 667
- LGA 775
- Intel 3000
- 4 x 240Pin
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5M2-E
| Brand | ASUS |
|---|---|
| Model | P5M2-E |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Xeon |
| System Bus | 1066/800/533 MHz |
| North Bridge | Intel 3000 |
|---|---|
| South Bridge | Intel ICH7R |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI-E x16 slot (x8 link) |
|---|---|
| PCI Express x8 | 1 x PCI-E x8 slot (x4 link) |
| PCI Slots | 3 x PCI Slots |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | Intel Matrix Storage (for Windows only) (Support software RAID 0, 1, 10 & 5) |
| Onboard Video Chipset | XGI Volari Z7 |
|---|
| LAN Chipset | Marvell 8056 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 8056 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

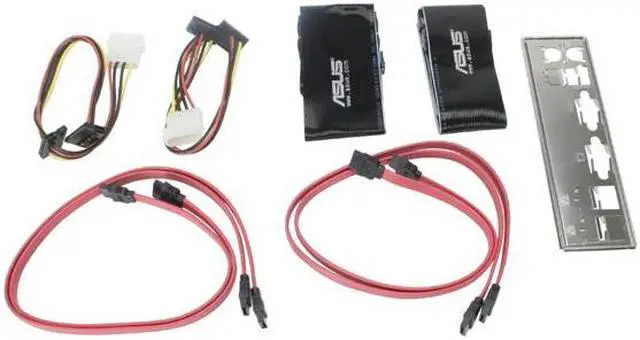

| Package Contents | P5M2-E User Manual Driver Disk 4 x SATA Cable IDE/PATA Cable FDD Cable Power Cable Rear I/O Panel Shield |
|---|
| First Listed on Newegg | August 14, 2007 |
|---|
