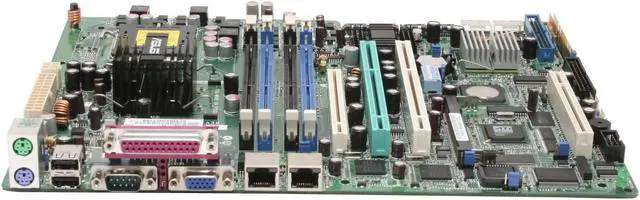

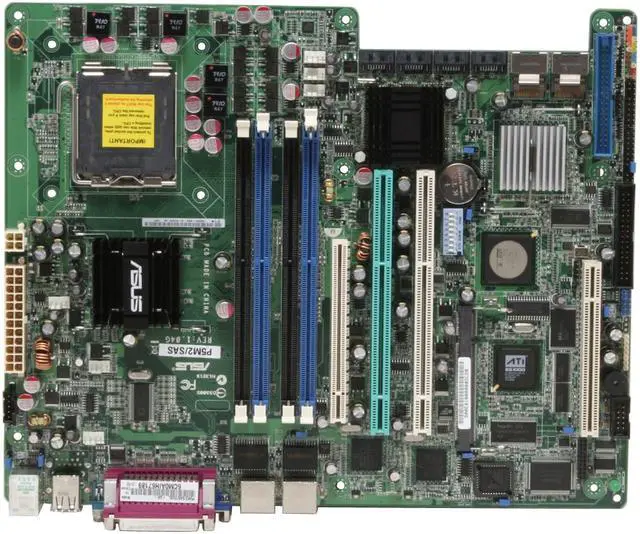

ASUS P5M2/SAS ATX Server Motherboard LGA 775 Intel 3000 DDR2 667
- LGA 775
- Intel 3000 Intel 6702 PXH 64-bit PCI Hub
- 4 x 240Pin
Specs
Reviews (3)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5M2/SAS
| Brand | ASUS |
|---|---|
| Model | P5M2/SAS |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Xeon processor 3000 sequence |
| North Bridge | Intel 3000 |
|---|---|
| South Bridge | Intel ICH7R |
| Other Chipset | Intel 6702 PXH 64-bit PCI Hub |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI-E x16 ( x 8 link) |
|---|---|
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x SODIMM socket for ASMB3-SOL |
| SATA | 4 x SATA 3.0Gb/s |
|---|---|
| SATA RAID | 0/1/0+1/5 |
| Onboard Video Chipset | ATI ES1000 |
|---|
| LAN Chipset | Broadcom BCM5721 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5721 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Features | SAS Controller: LSI 1068 PCI-X 8 ports SAS controller: SAS: 2 Mini-SAS x4 connectors support RAID 0, 1, 1E |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

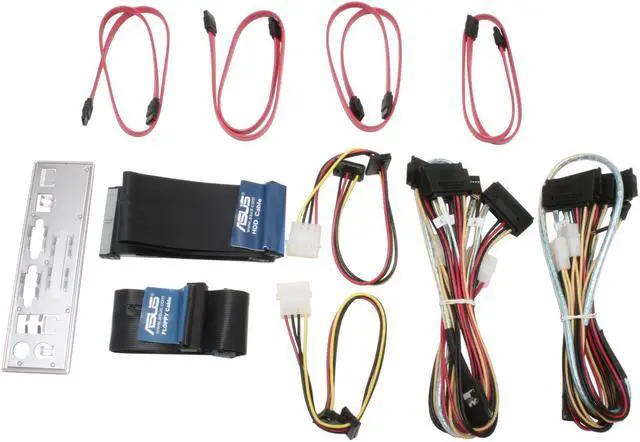

| Package Contents | P5M2/SAS User Manual Driver Disk 4 x SATA Cable Power Cables Rear I/O Panel Shield FDD Cable IDE/PATA Cable |
|---|
| First Listed on Newegg | February 08, 2007 |
|---|
