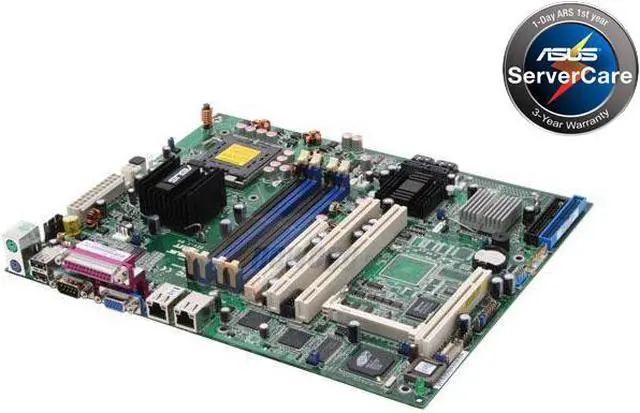

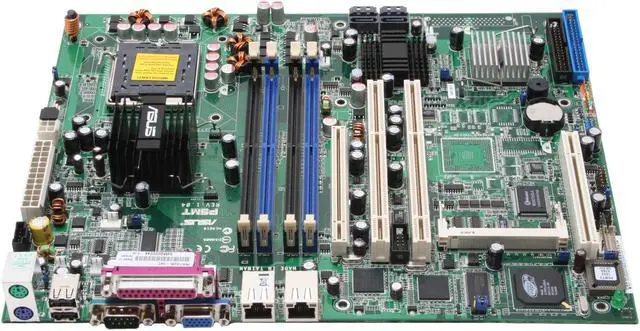

ASUS P5MT ATX Server Motherboard LGA 775 Intel E7230 DDR2 667
- LGA 775
- Intel E7230 Intel 6702 PXH
- 4 x 240Pin
Specs
Reviews (7)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5MT
| Brand | ASUS |
|---|---|
| Model | P5MT |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Pentium 4 |
| System Bus | 1066/800/533 MHz |
| North Bridge | Intel E7230 |
|---|---|
| South Bridge | Intel ICH7R |
| Other Chipset | Intel 6702 PXH |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 1 x PCI-E x16 slot (x8 link) |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI Slots | 1 x PCI Slot |
| Other Slots | Mini-PCI Socket for ASMB2 Card |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/0+1 |
| Onboard Video Chipset | ATI RAGE XL |
|---|
| LAN Chipset | Broadcom BCM5721 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Broadcom BCM5721 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | A PCI Express x16 graphics card inserted to the PCI Express x16 slot may run only at x1 speed (Intel spec). |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.8" |

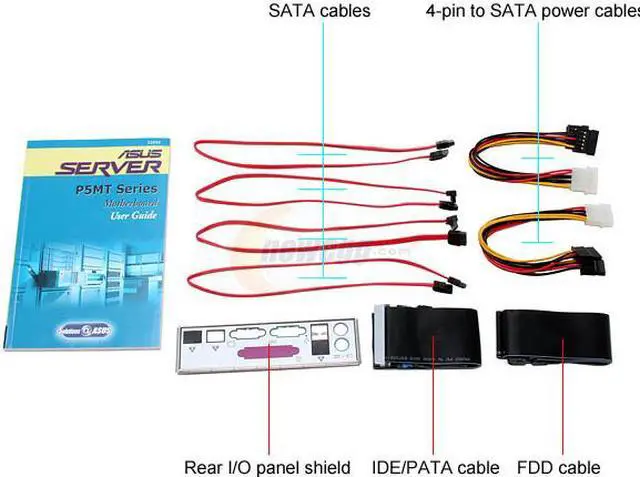

| Package Contents | P5MT User Manual Rear I/O Panel Shield IDE Cable 4 x SATA Cable 2 x Power Cable FDD Cable |
|---|
| First Listed on Newegg | October 07, 2005 |
|---|
