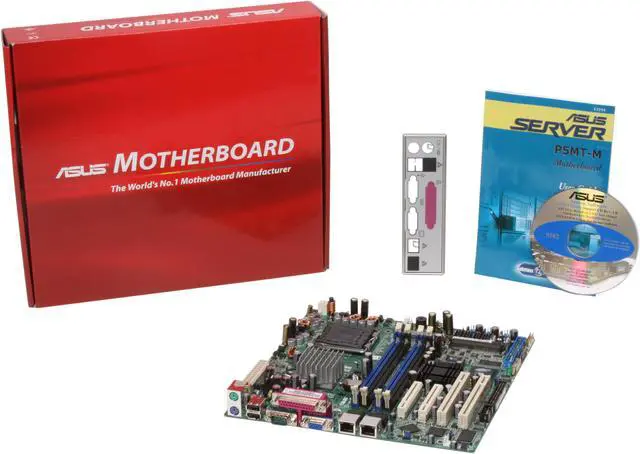

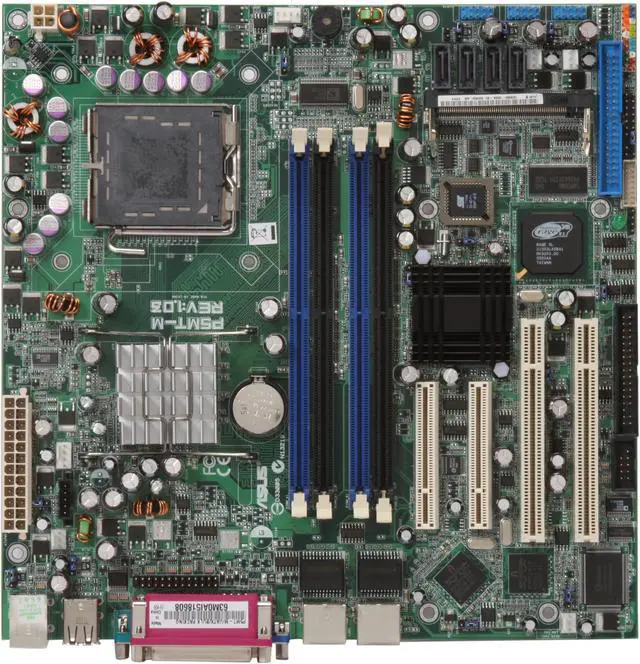

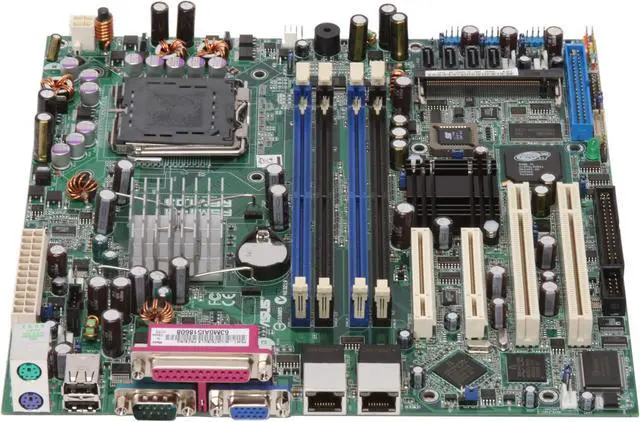

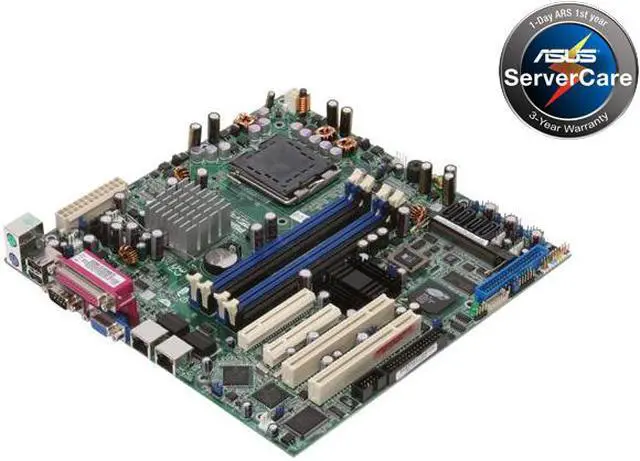

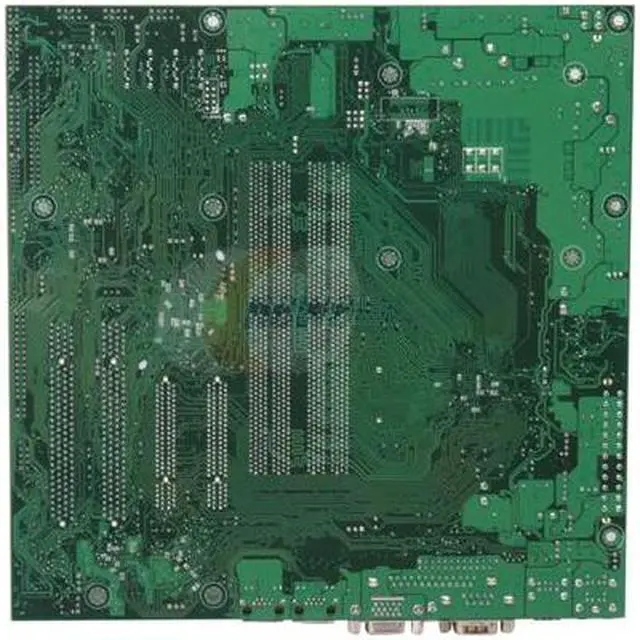

ASUS P5MT-M/UATX Micro ATX Server Motherboard LGA 775 Intel E7230 DDR2 667

  • LGA 775
  • Intel E7230
  • 4 x 240Pin
Specs
Reviews (3)
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the ASUS P5MT-M/UATX

Model
Brand ASUS
Model P5MT-M/UATX
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Pentium 4
System Bus 1066/800/533 MHz
Chipsets
North Bridge Intel E7230
South Bridge Intel ICH7R
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 667
Maximum Memory Supported 8GB
Channel Supported Dual Channel
ECC Supported Yes
Expansion Slots
PCI Express x8 1 x PCI-E x8 slot
1 x PCI-E x8 slot (x4 link)
PCI Slots 2 x PCI Slots
Other Slots Mini-PCI Socket for ASMB2 Card
Storage Devices
PATA 1 x ATA 100 2 Dev. Max
SATA 4 x SATA 3.0Gb/s
SATA RAID 0/1/0+1
Onboard Video
Onboard Video Chipset ATI RAGE XL
Onboard LAN
LAN Chipset Broadcom BCM5721
LAN Speed 10/100/1000Mbps
Second LAN Chipset Broadcom BCM5721
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
PS/2 2
Video Ports 1
USB 1.1/2.0 2 x USB 2.0
Dimensions
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 9.6"
Additional Information
First Listed on Newegg August 20, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
