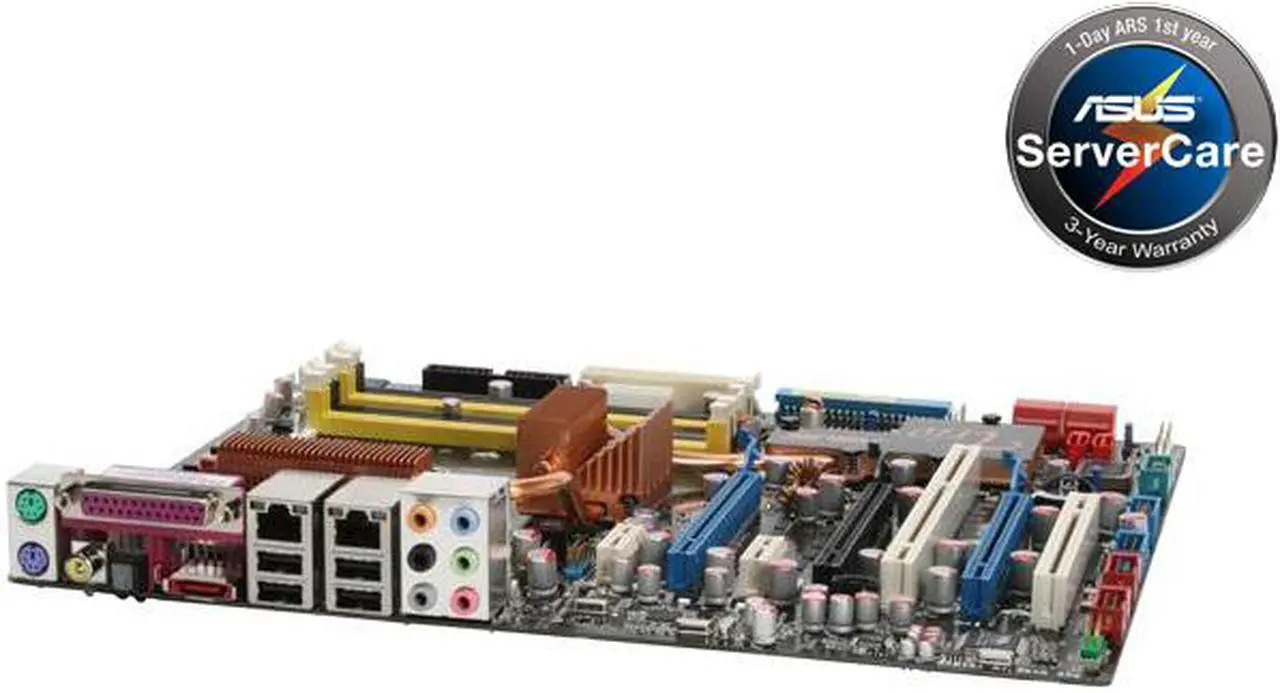

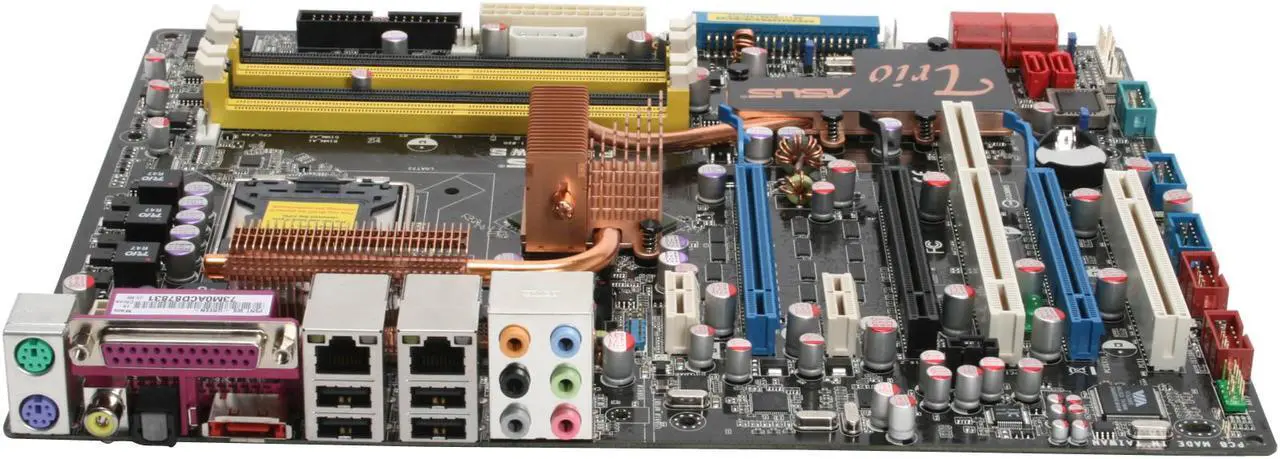

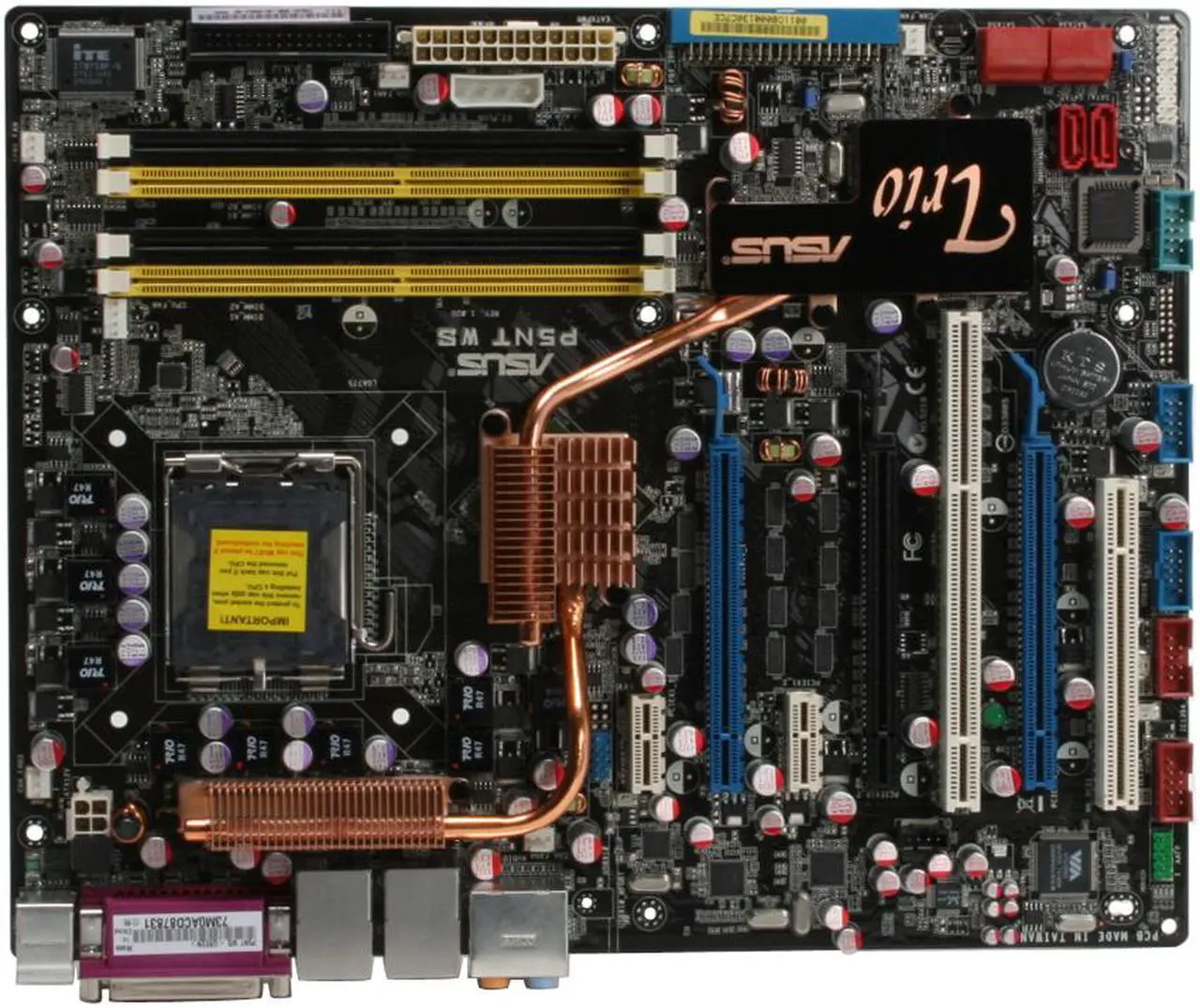

Main image of ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

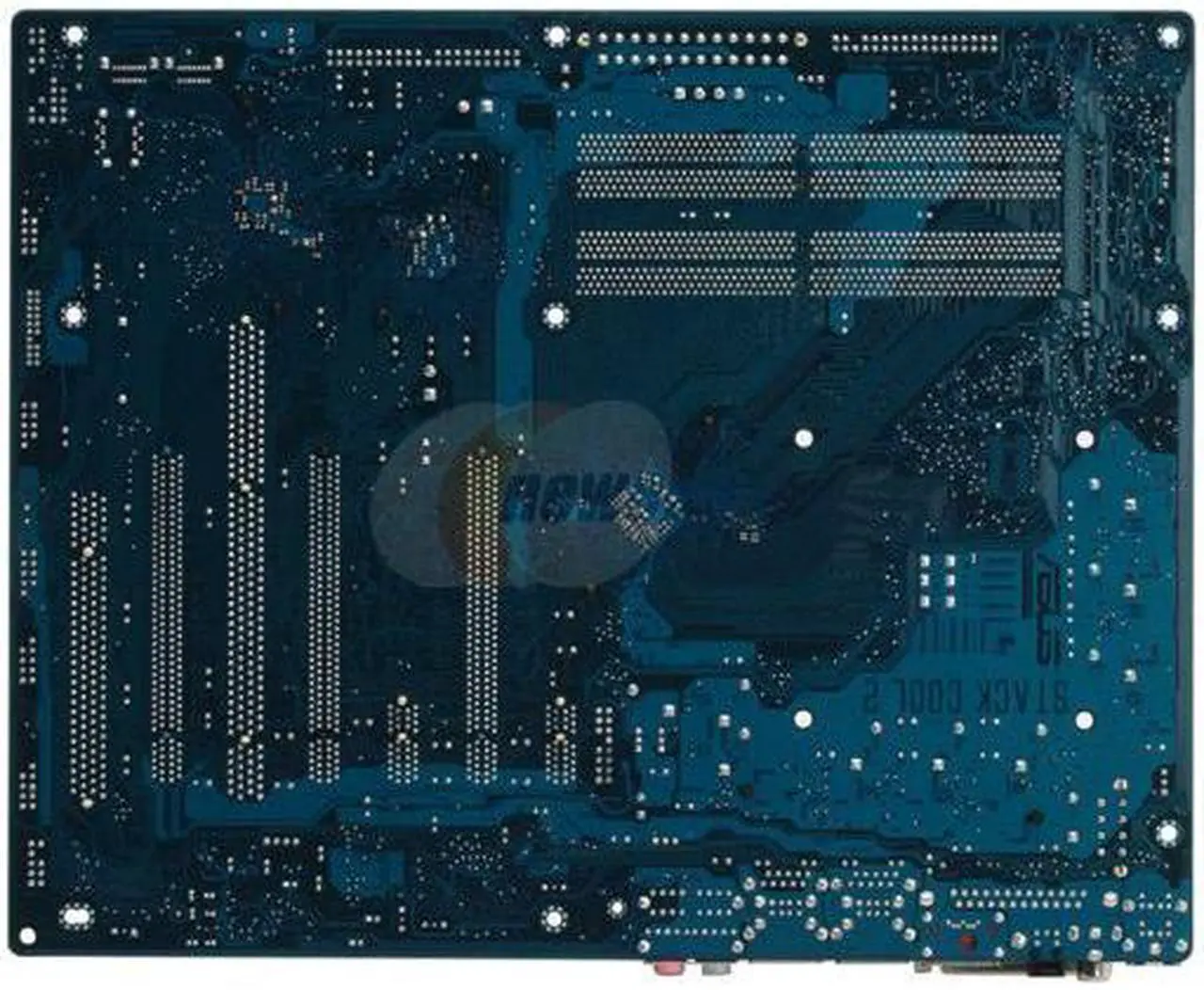

Alt view image 2 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Alt view image 3 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Alt view image 4 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Alt view image 5 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Alt view image 6 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Alt view image 7 of 7 - ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

Shop All ASUS Products

ASUS P5NT WS ATX Server Motherboard LGA 775 NVIDIA nForce Dual PCI-E x 16 DDR2 800

(20) Write a Review

LGA 775
NVIDIA nForce Dual PCI-E x 16
4 x 240Pin

Overview

Specs

Reviews (20)

Any questions? Our AI mode will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	P5NT WS

Supported CPU
CPU Socket Type	LGA 775
CPU Type	Intel Core 2 Extreme/Core 2 Duo/Pentium Extreme/Pentium D/Pentium 4/Celeron D Compatible with Intel 06/05B/05A

Chipsets
North Bridge	NVIDIA nForce Dual PCI-E x 16

Memory
Number of DDR2 Slots	4 x 240Pin
DDR2 Standard	DDR2 800
Maximum Memory Supported	8GB
Channel Supported	Dual Channel

Storage Devices
SATA	6 x SATA 3.0Gb/s
SATA RAID	0/1/0+1/5 JBOD

Onboard Audio
Audio Chipset	Realtek ALC888
Audio Channels	8 Channels

Onboard LAN
LAN Speed	10/100/1000Mbps
Second LAN Speed	10/100/1000Mbps
Max LAN Speed	2 x 1Gbps

Rear Panel Ports
PS/2	2
LPT	1
USB 1.1/2.0	4 x USB 2.0
S/PDIF Out	1 x Optical + 1 x Coaxial S/PDIF Output

Onboard Ports
Onboard USB	6 x USB 2.0
Onboard 1394	VIA6308S controller supports 2 x 1394a ports

Features
Features	Expansion Slots: 3 x PCI Express x16 slot, support NVIDIA SLI technology, at x8, x8, x16 or x16, x1, x16 speed 1 x PCI-X slot 2 x PCI Express x 1 slot 1 x PCI 2.2 slot 6 jacks audio I/O

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Packaging
Package Contents	P5NT WS User Manual Driver Disk 3 x Power Cable 6 x SATA cable USB Bracket IEEE1394a Bracket IDE/PATA Cable FDD Cable Rear I/O Panel Shield Other Accessories

Additional Information
First Listed on Newegg	March 28, 2007
