    ASUS P5Q-E LGA 775 Intel P45 ATX Intel Motherboard

    Used - Very Good Product Type
    Comes with motherboard and IO shield, no additional accessories.
    • Intel P45
    • Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual-Core
    • DDR2 1200
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASUS P5Q-E

    Model
    Brand ASUS
    Model P5Q-E
    Supported CPU
    CPU Socket Type LGA 775
    CPU Type Celeron / Celeron Dual-Core / Core 2 Duo / Core 2 Extreme / Core 2 Quad / Pentium 4 / Pentium D / Pentium Dual-Core
    Chipsets
    Chipset Intel P45
    South Bridge Intel ICH10R
    Onboard Video
    Onboard Video Chipset None
    Memory
    Number of Memory Slots 4x240pin
    Memory Standard DDR2 1200
    Maximum Memory Supported 16GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 2.0 x16 2 x PCI Express 2.0 x16 slots, support ATI CrossFireX technology, at x8 link
    (black at max. x8 link)
    PCI Express x4 1 x PCI Express x16 slot at max. x4 link(black)
    PCI Express x1 2 x PCI Express x1
    PCI Slots 2 x PCI Slots
    Storage Devices
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset ADI AD2000B
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Marvell 88E8056
    Second LAN Chipset Marvell 88E8001
    Max LAN Speed 2 x 1Gbps

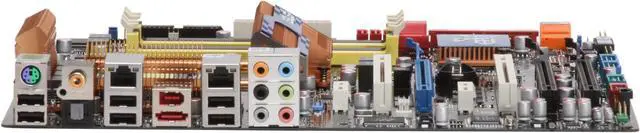

    Rear Panel Ports
    PS/2 1
    USB 1.1/2.0 6 x USB 2.0
    IEEE 1394 1 x IEEE 1394a
    eSATA 1 x eSATA 3Gb/s
    S/PDIF In 1 x Optical, 1 x Coaxial
    Audio Ports 6 Ports
    Internal I/O Connectors
    Onboard USB 3 x USB connectors support additional 6 USB ports
    Onboard 1394 1 x 1394a
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Features
    Features ATI CrossFireX Technology ~ Exceptional 3D Experience
    EPU-6 Engine ~ System Level Energy Saving
    Drive Xpert ~ Enhance Data Backup or HDD performance
    Express Gate ~ 5 Secs from Bootup to Online!
    100% Japan-made Solid Capacitor ~ Best Quality

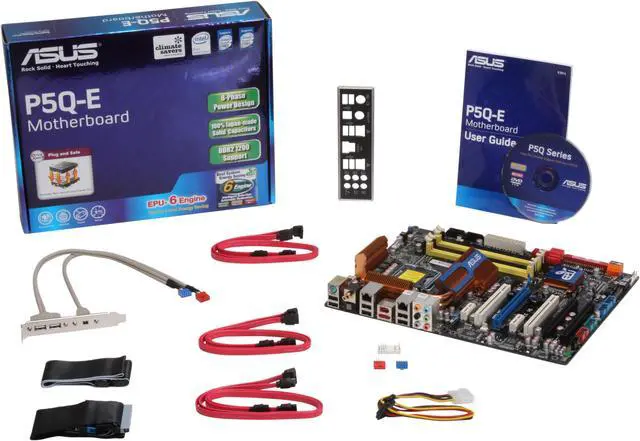

    Packaging
    Package Contents P5Q-E
    Driver Disk
    User Manual
    Rear I/O Panel Shield
    IDE/PATA Cable
    FDD Cable
    SATA Cable
    4-pin to SATA Power Cable
    IEEE 1394 & USB Bracket
