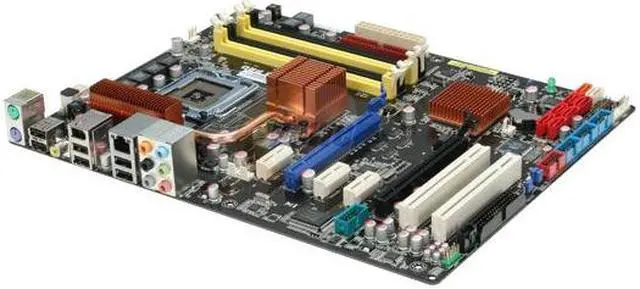

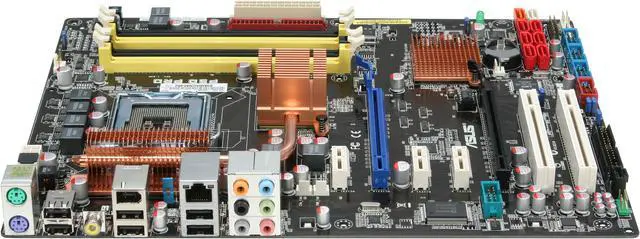

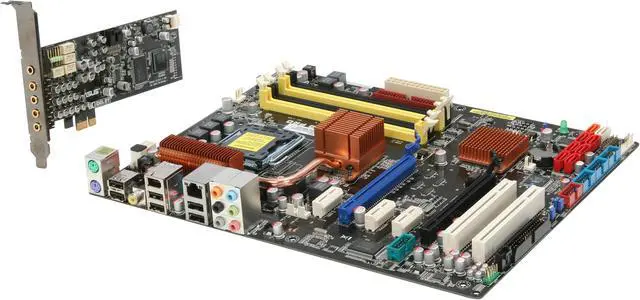

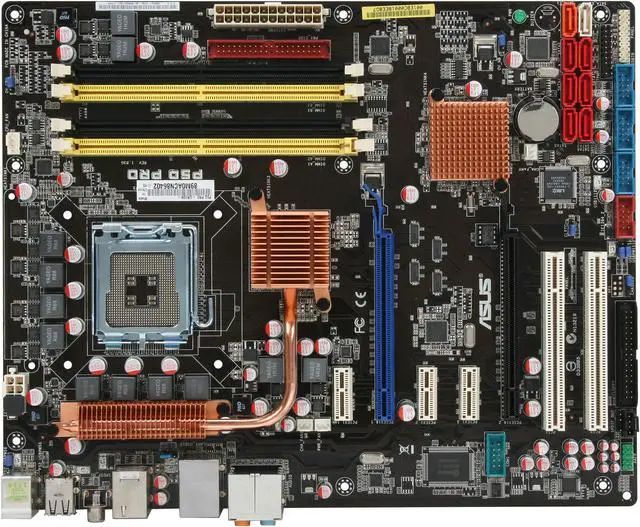

ASUS P5Q PRO + XONAR DX LGA 775 Intel P45 ATX Intel Motherboard Bundle
- Intel P45
- Core 2 Quad / Core 2 Extreme / Core 2 Duo
- DDR2 1200
Specs
Reviews (1)
Learn more about the ASUS P5Q PRO + XONAR DX
| Brand | ASUS |
|---|---|
| Model | P5Q PRO + XONAR DX |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Core 2 Quad / Core 2 Extreme / Core 2 Duo |
| Chipset | Intel P45 |
|---|---|
| South Bridge | Intel ICH10R |
| Onboard Video Chipset | None |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR2 1200 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express 2.0 x16 | 2 x PCI Express 2.0 x16 slots, support ATI CrossFireX technology at x8 link (black at max. x8 link) |
|---|---|
| PCI Express x1 | 3 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| SATA RAID | 0/1/5/10 Matrix RAID |
|---|
| Audio Chipset | Realtek ALC1200, 8-channel High Definition Audio CODEC Xonar DX |
|---|---|
| Audio Channels | 8 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| USB 1.1/2.0 | 6 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| S/PDIF Out | 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 3 x USB connectors support additional 6 USB ports |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |

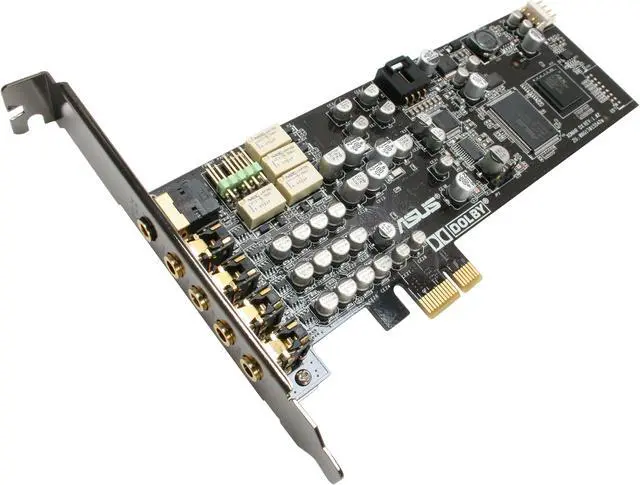

| Features | Bundle ASUS Xonar DX: - Powered by complete Dolby Home Theater technologies - Supports latest DS3D GX 2.0 for gaming on Vista & XP - VocalFX voice processing technologies to make gaming and online chat more lively and attractive - Delivers ~35 times cleaner audio quality (116dB SNR) than most motherboard audio (85dB SNR) |
|---|

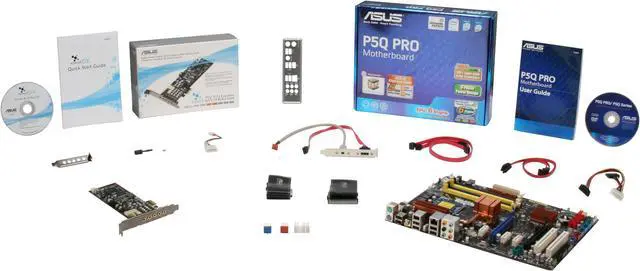

| Package Contents | P5Q Pro Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable IEEE 1394 & eSATA Bracket |
|---|
| First Listed on Newegg | October 31, 2008 |
|---|
