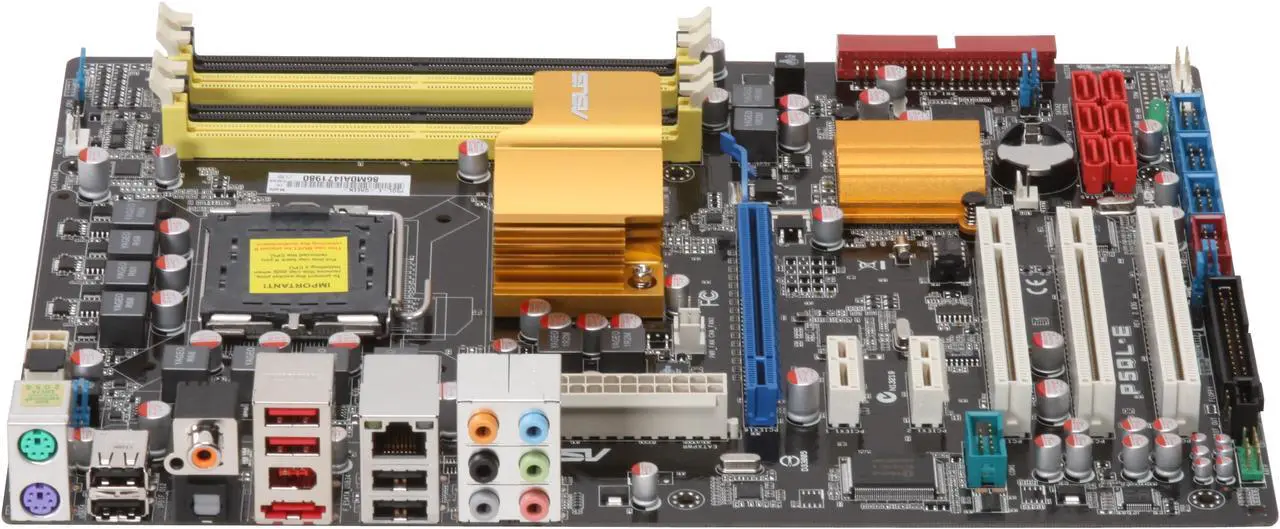

Main image of ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

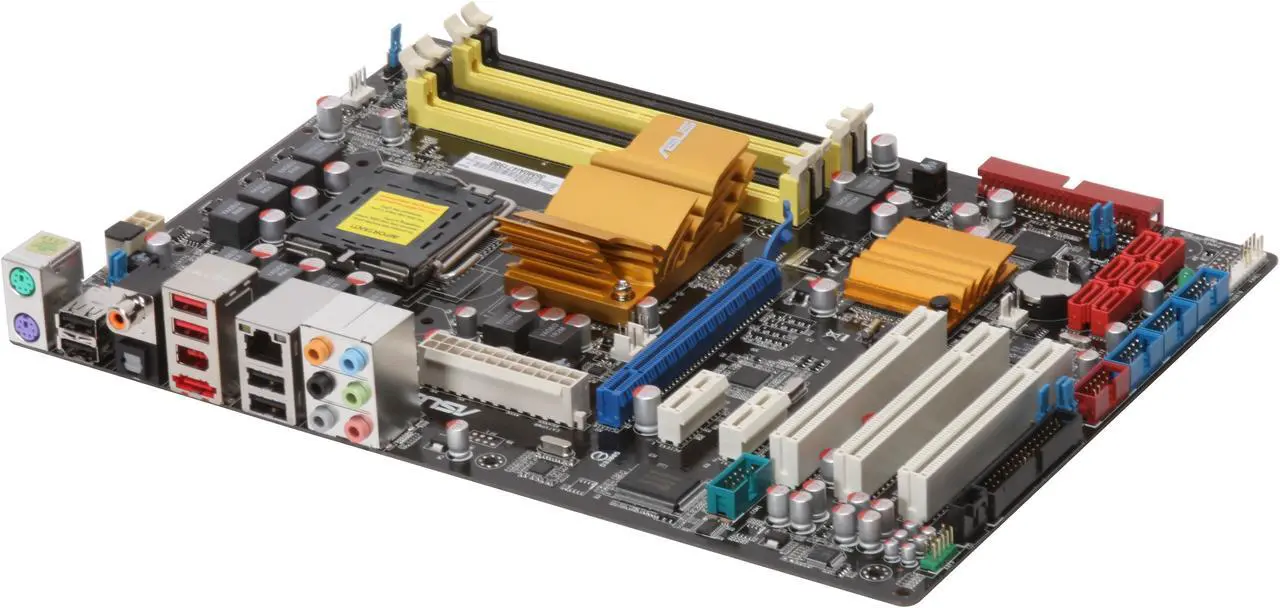

Alt view image 2 of 5 - ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

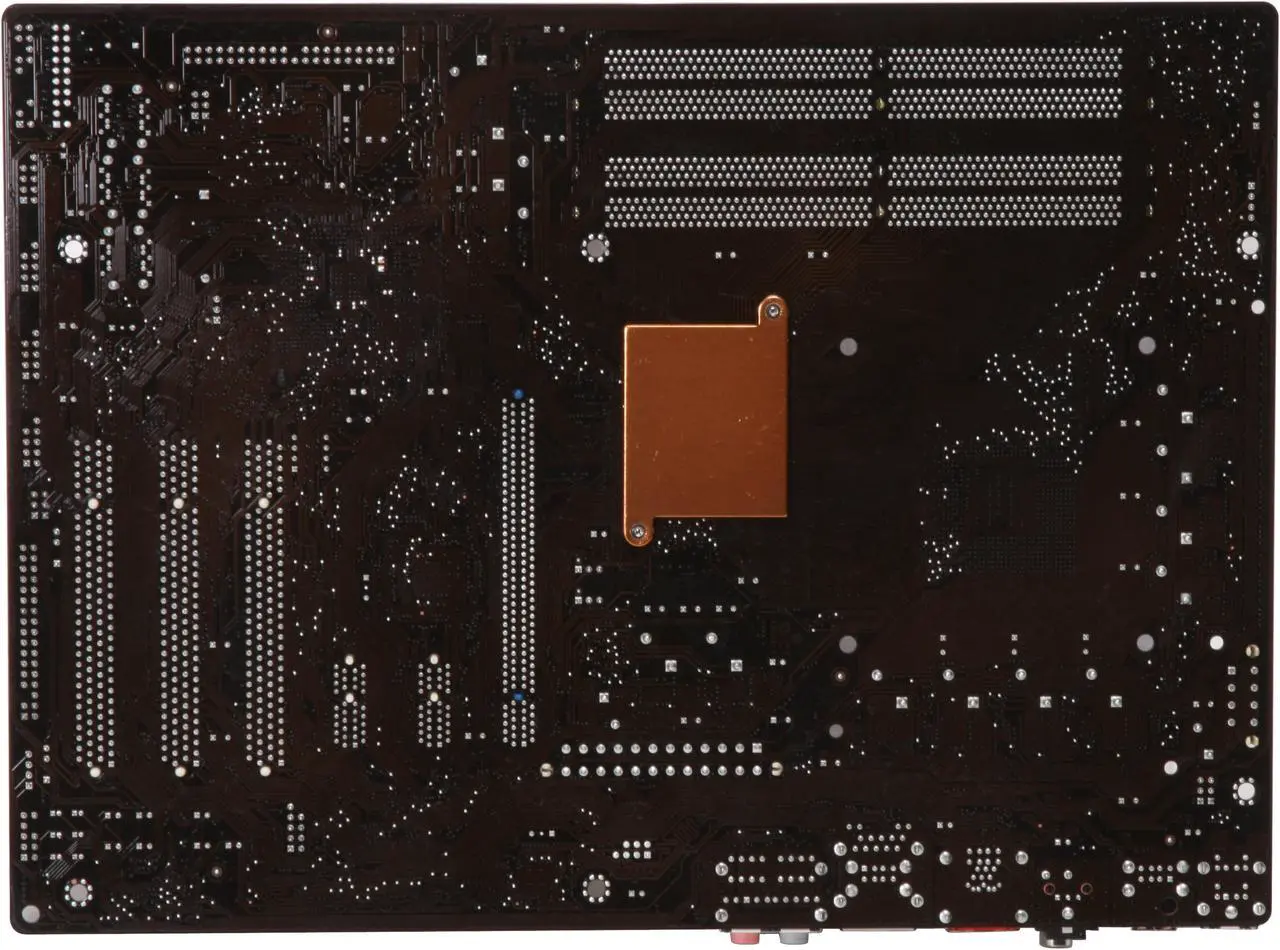

Alt view image 3 of 5 - ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

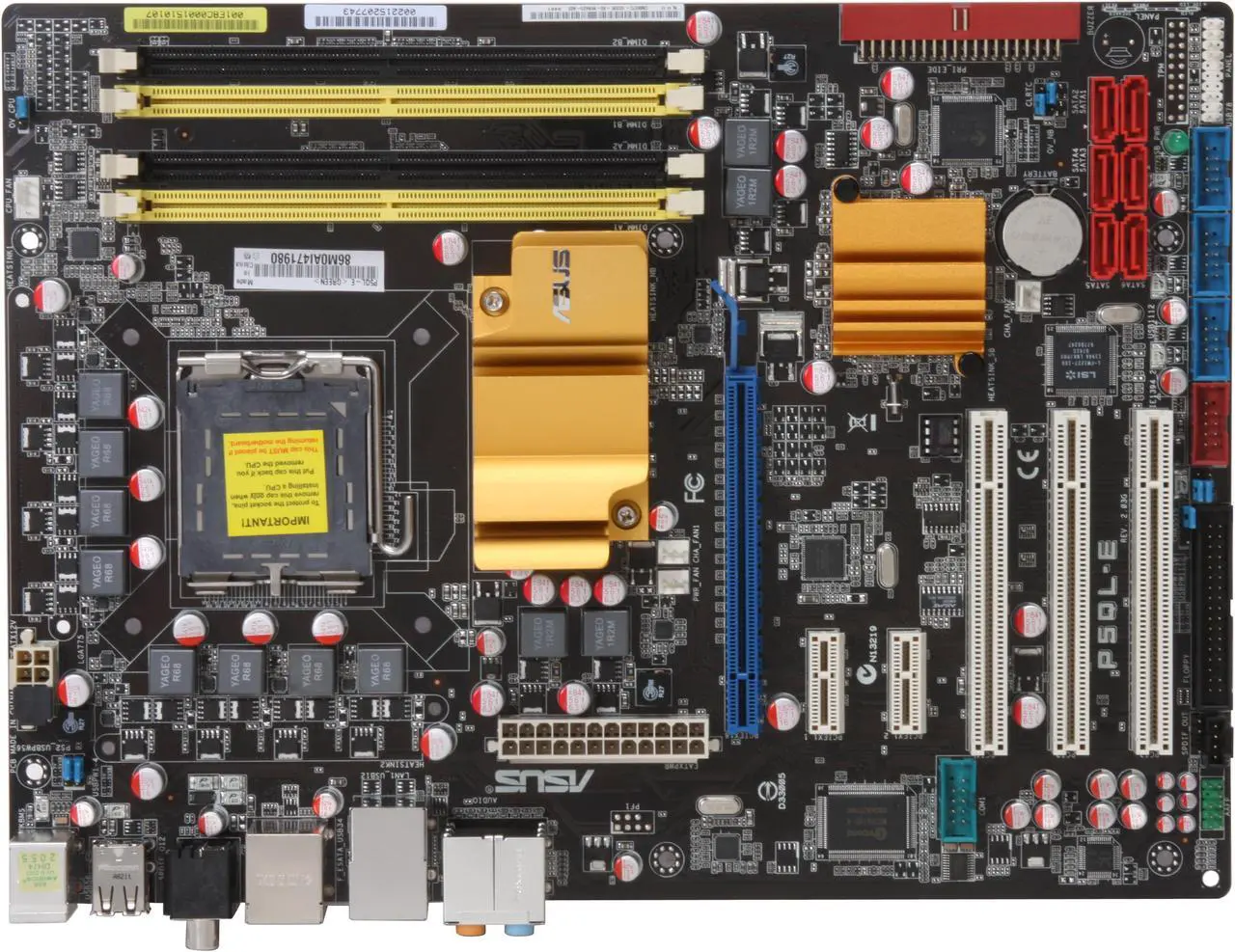

Alt view image 4 of 5 - ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

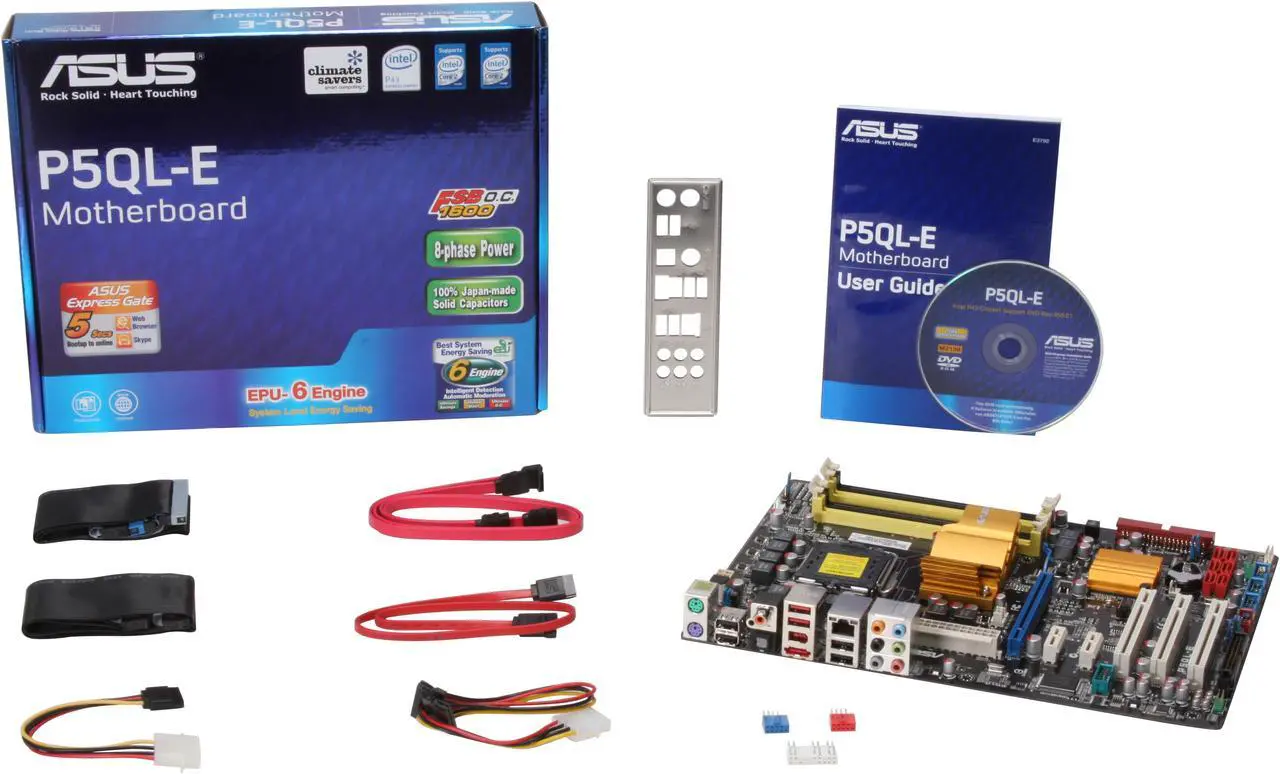

Alt view image 5 of 5 - ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

Shop All ASUS Products | Visit Smith's Computer Market Store

ASUS P5QL-E LGA 775 Intel P43 ATX Intel Motherboard

Used - Good

Intel P43
Core 2 Quad / Core 2 Extreme / Core 2 Duo
DDR2 1066

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by Smith's Computer Market Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 775
CPU Type	Core 2 Quad / Core 2 Extreme / Core 2 Duo
FSB	1600(O.C.)/1333

Chipset	Intel P43
South Bridge	Intel ICH10R

Number of Memory Slots	4x240pin
Memory Standard	DDR2 1066
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	1 x PCI Express 2.0 x16
PCI Express x1	2 x PCI Express x1
PCI Slots	3 x PCI Slots

PATA	1 x ATA100 2 Dev. Max
SATA RAID	0/1/5/10

Back I/O Ports	1 x eSATA 3GB/S / 1 x Optical S/PDIF Out / 1 x S/PDIF Coaxial Out / 2 x PS/2 / 6 x USB 2.0/1.1
PS/2	2
USB 1.1/2.0	6 x USB 2.0
IEEE 1394	1 x IEEE 1394a
eSATA	1 x eSATA 3Gb/s
S/PDIF Out	1 x Optical, 1 x Coaxial
Audio Ports	6 Ports

Onboard USB	3 x USB connectors support additional 6 USB ports
Onboard 1394	1 x 1394a

Model
Brand	ASUS
Model	P5QL-E

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Marvell 88E8056/88E8001
Max LAN Speed	1Gbps

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.8"
Power Pin	24 Pin

Item#: 9SIAWFGKDR3646
