ASUS P5WDG2-WS PRO ATX Server Motherboard LGA 775 Intel 975X DDR2 667/533 Native DDR2 800 Support

OUT OF STOCK.
  • LGA 775
  • Intel 975X PCI-X Bridge: Intel 6702 PXH
  • 4 x 240Pin
Specs
Reviews

Learn more about the ASUS P5WDG2-WS PRO

Model
Brand ASUS
Model P5WDG2-WS PRO
Supported CPU
CPU Socket Type LGA 775
CPU Type Intel Pentium EE/ Pentium D/ Pentium 4 / Celeron
System Bus 1066/800/533 MHz
Supported CPU Technologies Hyper-Threading Technology
Chipsets
North Bridge Intel 975X
South Bridge Intel ICH7R
Other Chipset PCI-X Bridge: Intel 6702 PXH
Memory
Number of DDR2 Slots 4 x 240Pin
DDR2 Standard DDR2 667/533
Native DDR2 800 Support
Maximum Memory Supported 8GB
Channel Supported Dual Channel
ECC Supported Yes
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI-X Slots (64-bit 133MHz) 2
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA 133 2 Dev. Max
SATA 4 x SATA 3.0Gb/s
SATA RAID 0/1/10/5
Additional SATA 4 x SATA 3.0Gb/s
Onboard Audio
Audio Chipset ADI AD1988B
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E8052
LAN Speed 10/100/1000Mbps
Second LAN Chipset Marvell 88E8001
Second LAN Speed 10/100/1000Mbps
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
PS/2 2
LPT 1
USB 1.1/2.0 4 x USB 2.0
S/PDIF Out 1 x Optical, 1 x Coaxial
Audio Ports 6 Ports
Onboard Ports
Onboard USB 4 x USB 2.0
Onboard 1394 1 x 1394a
Features
Features Intel Quad-core CPU Ready
Support Intel 65nm, Core 2 Extreme / Core 2 Duo
Compatible with Intel 06B, 05B/ 05A and 04B/04A processors
Intel EM64T and Hyper-Threading Technology ready

LAN Support Teaming function
Please update the latest BIOS to support Intel Quad-core CPU
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Packaging
Package Contents P5WDG2-WS PRO
2 x User Manual
Driver Disk
COM Port Bracket
USB Bracket
IEEE 1394 Bracket

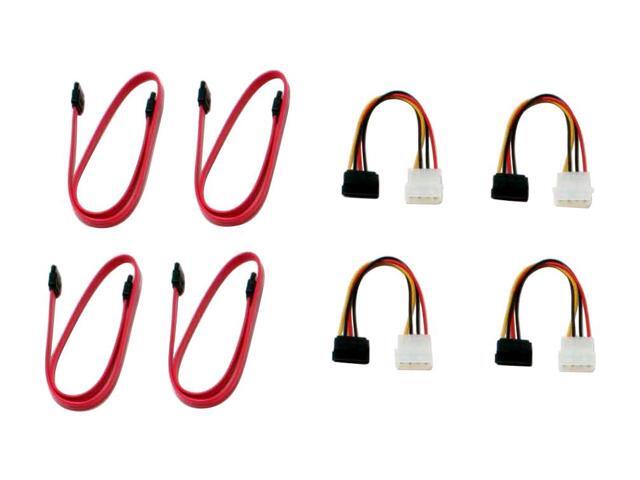

4 x SATA Cable
4 x Power Cable
Rear I/O Panel Shield
IDE Cable
FDD Cable
ASUS Q-Connector Kit
Additional Information
Date First Available August 24, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
