ASUS P5WDG2-WS PRO ATX Server Motherboard LGA 775 Intel 975X DDR2 667/533 Native DDR2 800 Support
- LGA 775
- Intel 975X PCI-X Bridge: Intel 6702 PXH
- 4 x 240Pin
Specs
Reviews (46)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASUS P5WDG2-WS PRO
| Brand | ASUS |
|---|---|
| Model | P5WDG2-WS PRO |
| CPU Socket Type | LGA 775 |
|---|---|
| CPU Type | Intel Pentium EE/ Pentium D/ Pentium 4 / Celeron |
| System Bus | 1066/800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| North Bridge | Intel 975X |
|---|---|
| South Bridge | Intel ICH7R |
| Other Chipset | PCI-X Bridge: Intel 6702 PXH |
| Number of DDR2 Slots | 4 x 240Pin |
|---|---|
| DDR2 Standard | DDR2 667/533 Native DDR2 800 Support |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express x16 | 2 x PCI Express x16 |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 2 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 4 x SATA 3.0Gb/s |
| SATA RAID | 0/1/10/5 |
| Additional SATA | 4 x SATA 3.0Gb/s |
| Audio Chipset | ADI AD1988B |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Marvell 88E8052 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Marvell 88E8001 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 2 |
|---|---|
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| S/PDIF Out | 1 x Optical, 1 x Coaxial |
| Audio Ports | 6 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|---|
| Onboard 1394 | 1 x 1394a |
| Features | Intel Quad-core CPU Ready Support Intel 65nm, Core 2 Extreme / Core 2 Duo Compatible with Intel 06B, 05B/ 05A and 04B/04A processors Intel EM64T and Hyper-Threading Technology ready LAN Support Teaming function Please update the latest BIOS to support Intel Quad-core CPU |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |

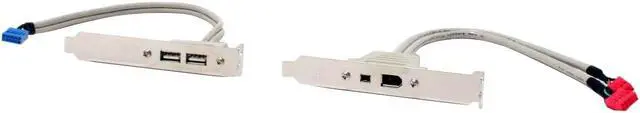

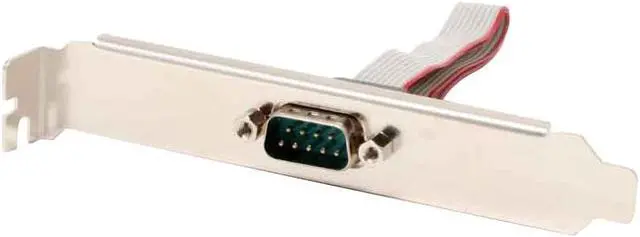

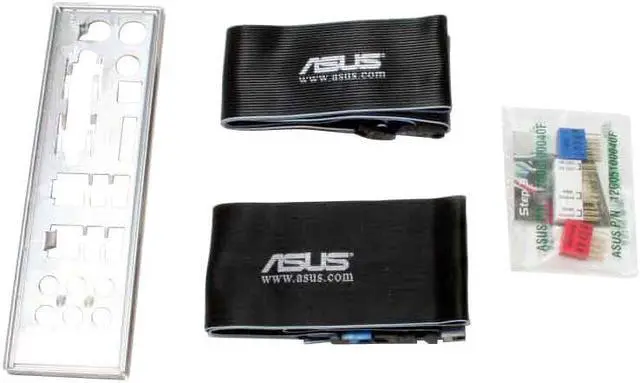

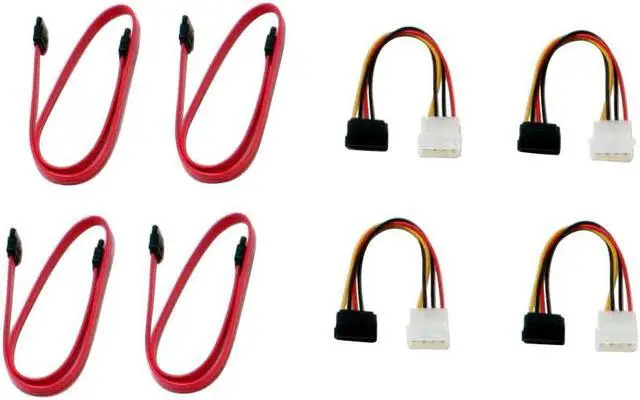

| Package Contents | P5WDG2-WS PRO 2 x User Manual Driver Disk COM Port Bracket USB Bracket IEEE 1394 Bracket 4 x SATA Cable 4 x Power Cable Rear I/O Panel Shield IDE Cable FDD Cable ASUS Q-Connector Kit |
|---|
| Date First Available | August 24, 2006 |
|---|
