This means that the product has been opened, may show slight signs of use and cosmetic blemish, and may be missing minor accessories, but remain in excellent condition. Product does not come with warranty unless stated otherwise in product description.
DDR3 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066 (Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.)
DDR3 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600 / 1333 / 1066 (Due to CPU behavior, DDR3 2200/2000/1800 MHz memory module will run at DDR3 2133/1866/1600 MHz frequency as default.)
Maximum Memory Supported
32GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 2.0 x16
2 (x16, x4)
PCI Express x1
2 x PCI Express x1
PCI Slots
3 x PCI Slots
Storage Devices
Serial ATA (SATA)
2 xSATA 6.0 Gb/s ports (gray) by P67 2 xSATA 6.0 Gb/s ports (navy blue) by Marvell
SATA RAID
SATA 6.0 Gb/s ports (gray) and SATA 3.0 Gb/s ports (blue) support RAID 0,1,5,10
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111E
Max LAN Speed
1Gbps
Bluetooth
Bluetooth v2.1 + EDR

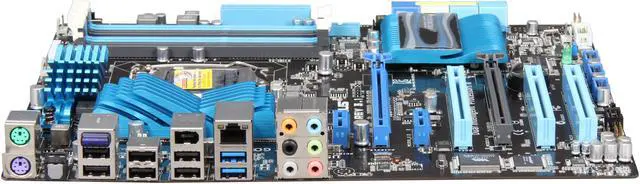

Rear Panel Ports
Back I/O Ports
1 x Optical S/PDIF Out / 2 x PS/2 / 2 x USB 3.0 / 6 x USB 2.0/1.1
PS/2
2
USB 3.0
2 x USB 3.0
USB 1.1/2.0
6 x USB 2.0
IEEE 1394
1 x IEEE 1394a
S/PDIF Out
1 x Optical
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.0 + 6 x USB 2.0
Onboard 1394
1 x 1394a
Other Connectors
1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (4 -pin) 2 x Chassis Fan connector(s) (1 x 4 -pin, 1 x 3 -pin) 1 x Power Fan connector(s) (3 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Q-Connector) 1 x MemOK! button(s) 1 x TPU switch(es) 1 x EPU switch(es)
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
Dual Intelligent Processors 2 with DIGI+ VRM
BT GO! (Bluetooth) - Diverse BT Enjoyment, New Technology Lifestyle
EFI BIOS (EZ Mode) - Flexible & Easy BIOS Interface
Quad USB 3.0/SATA 6Gb/s Support - Double Access, Double Convenience
Quad-GPU CrossFireX Support!
REV 3.1 – ASMedia USB 3.0 controllers
Additional Information
First Listed on Newegg
April 13, 2025
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
