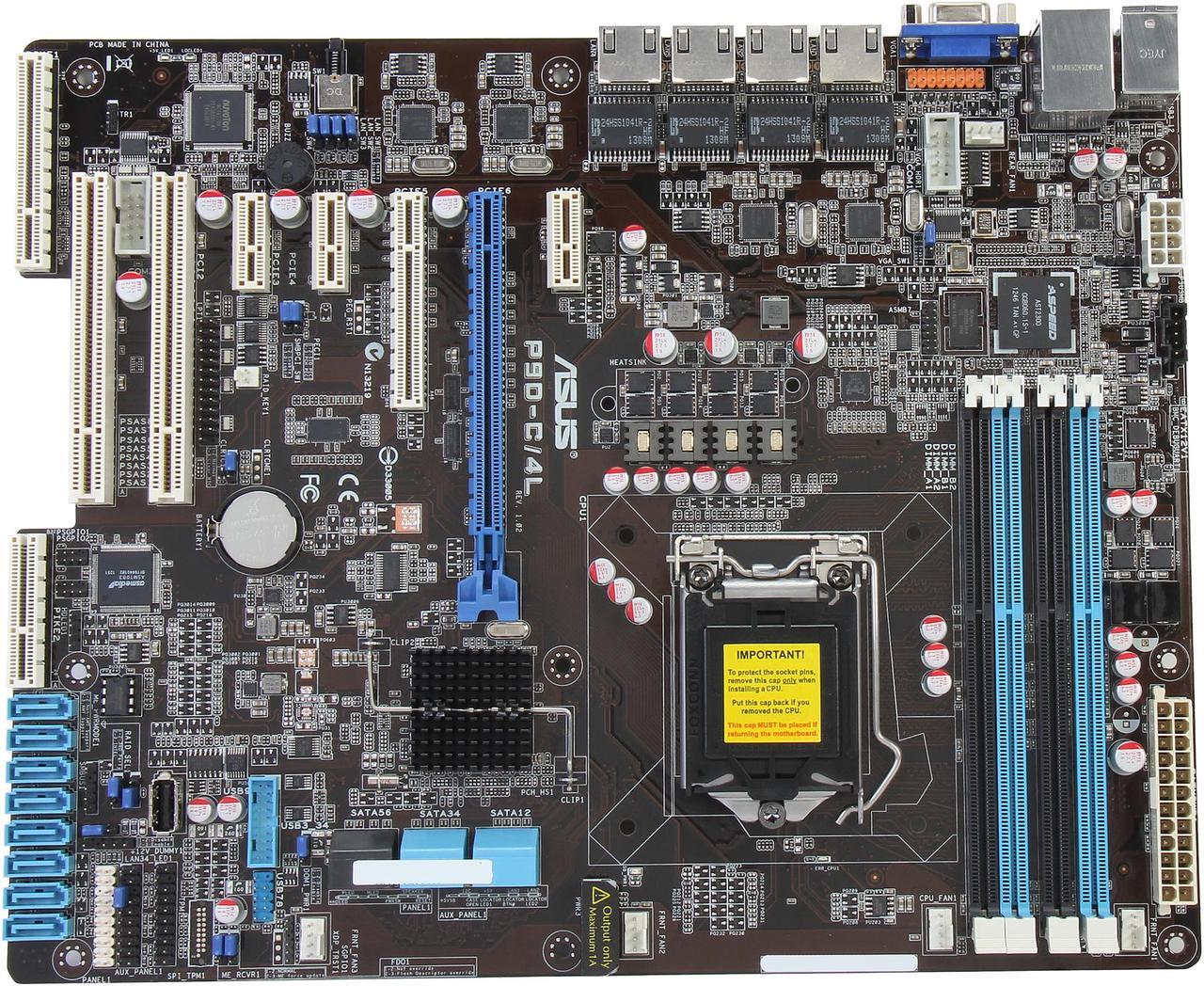

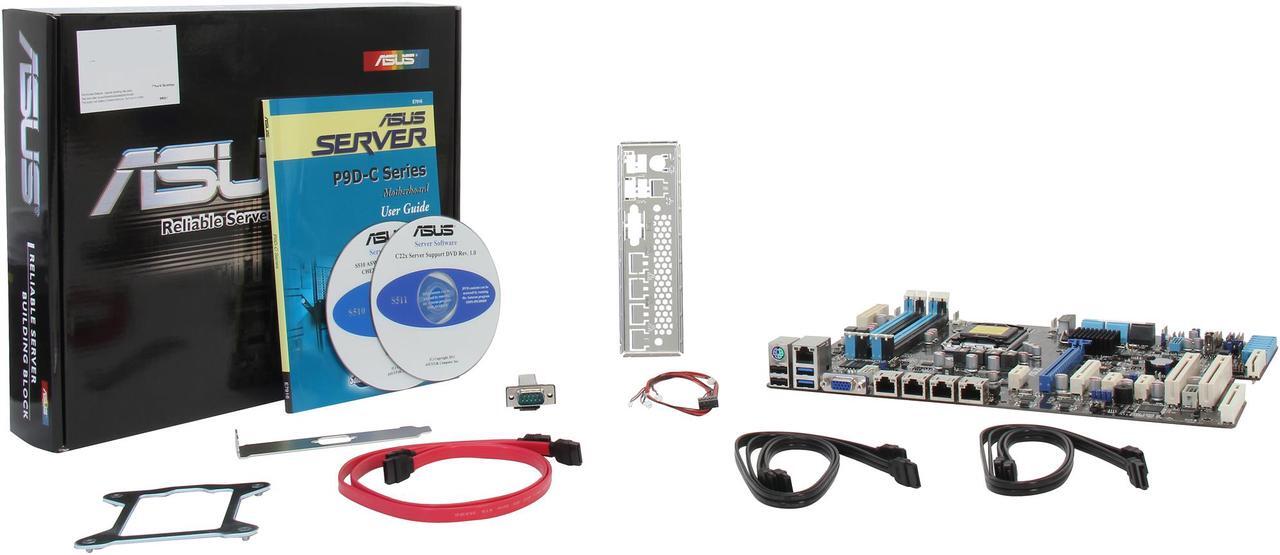

Main image of ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

100%

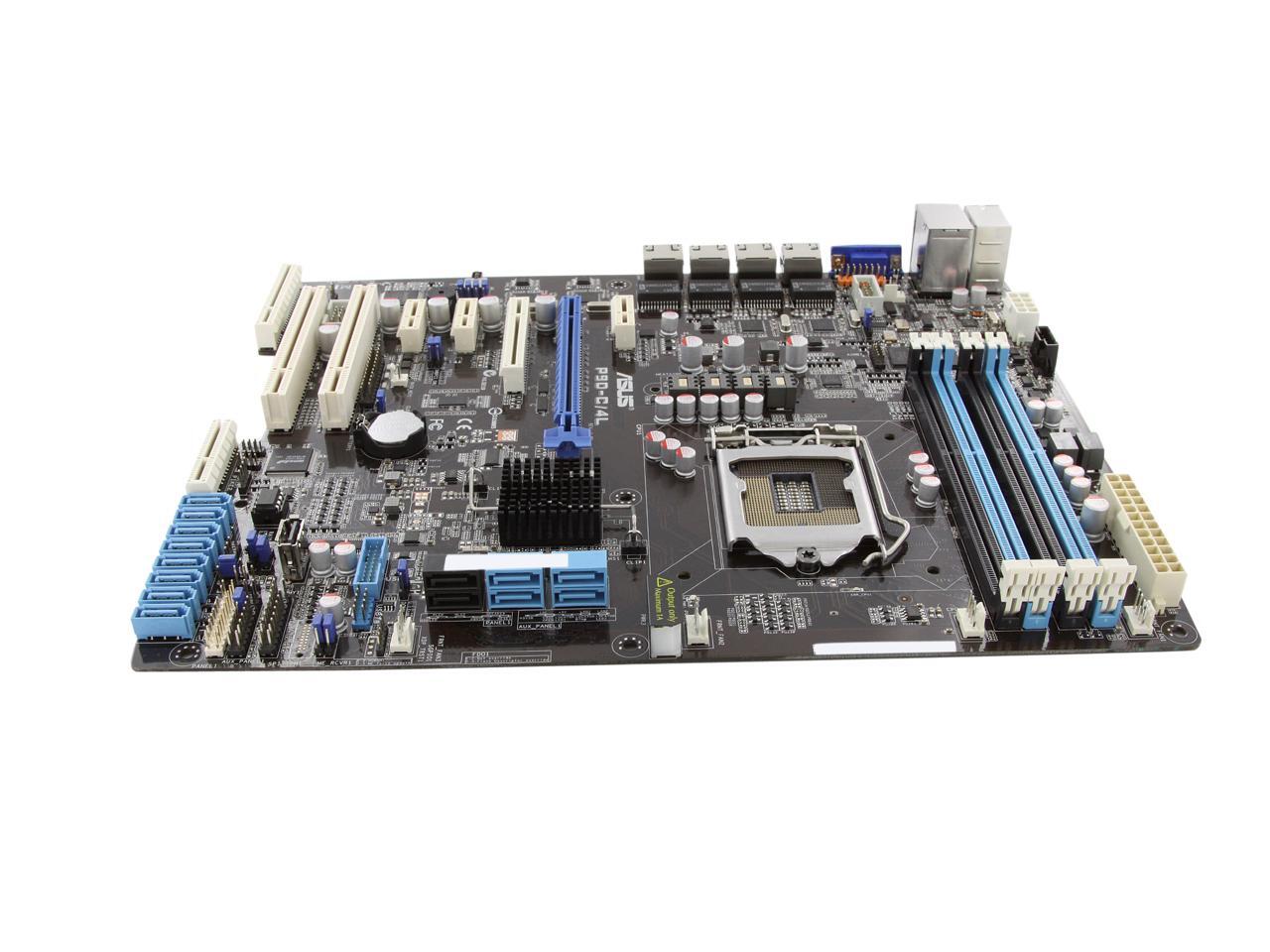

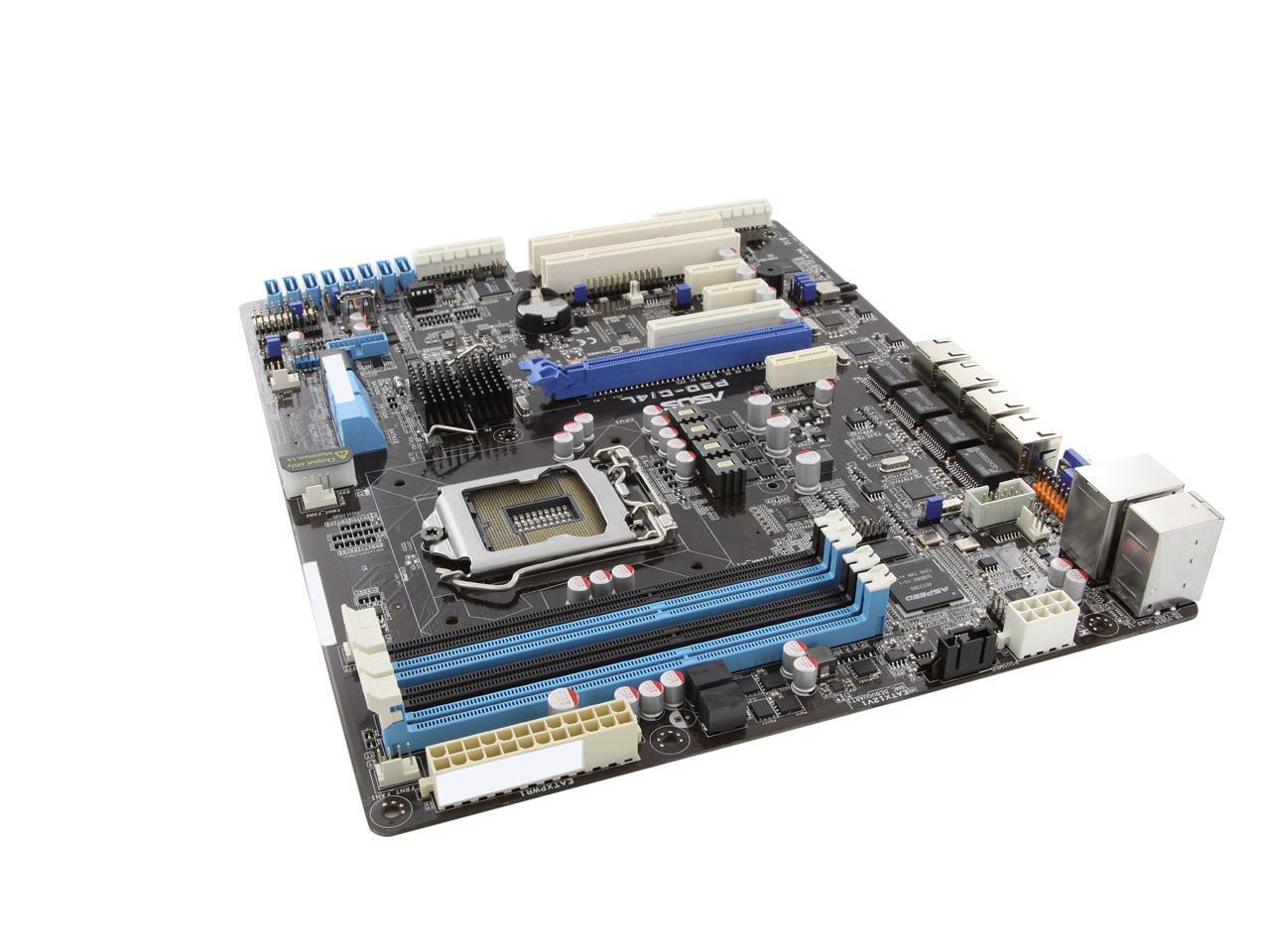

Alt view image 2 of 5 - ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

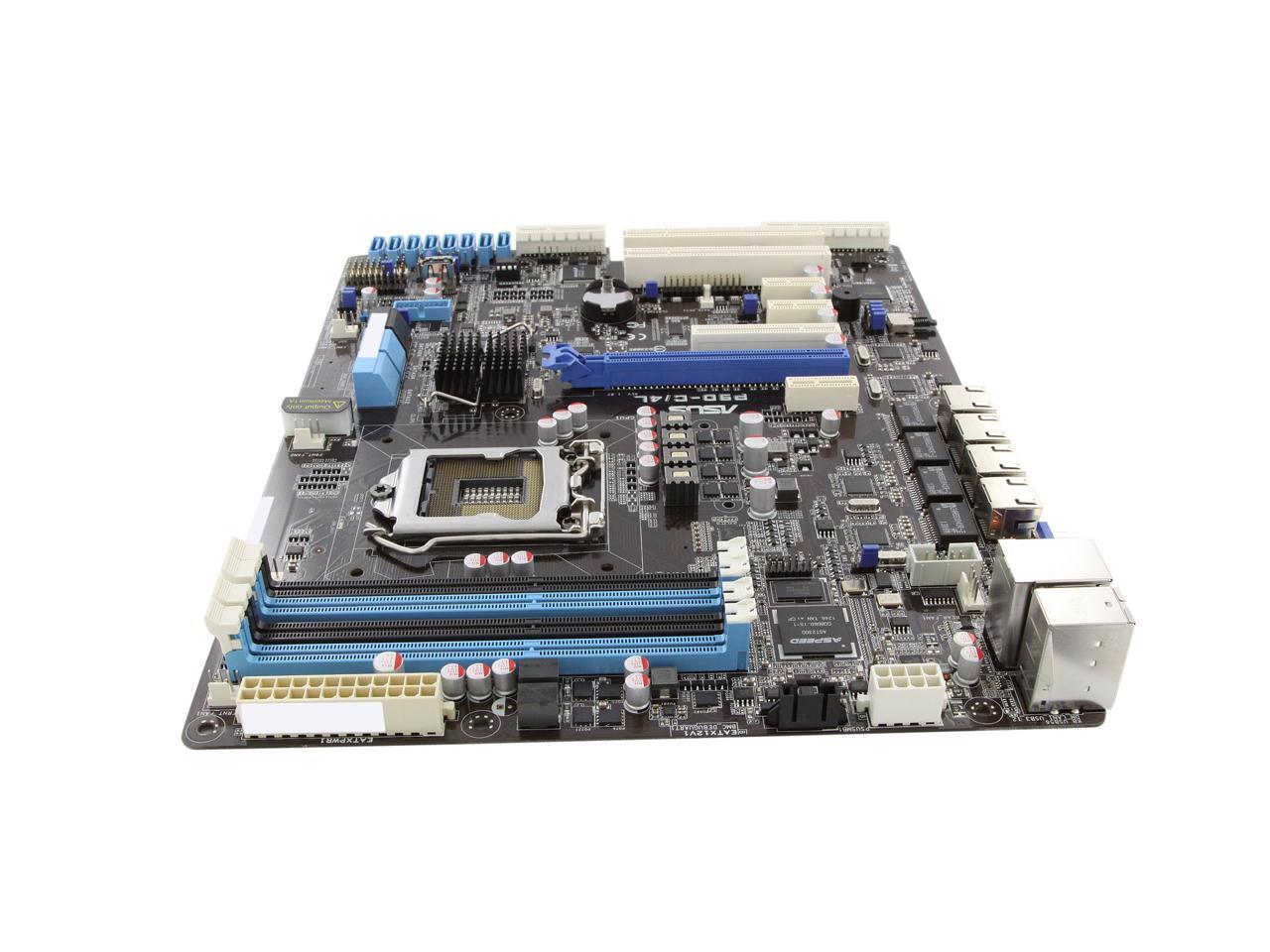

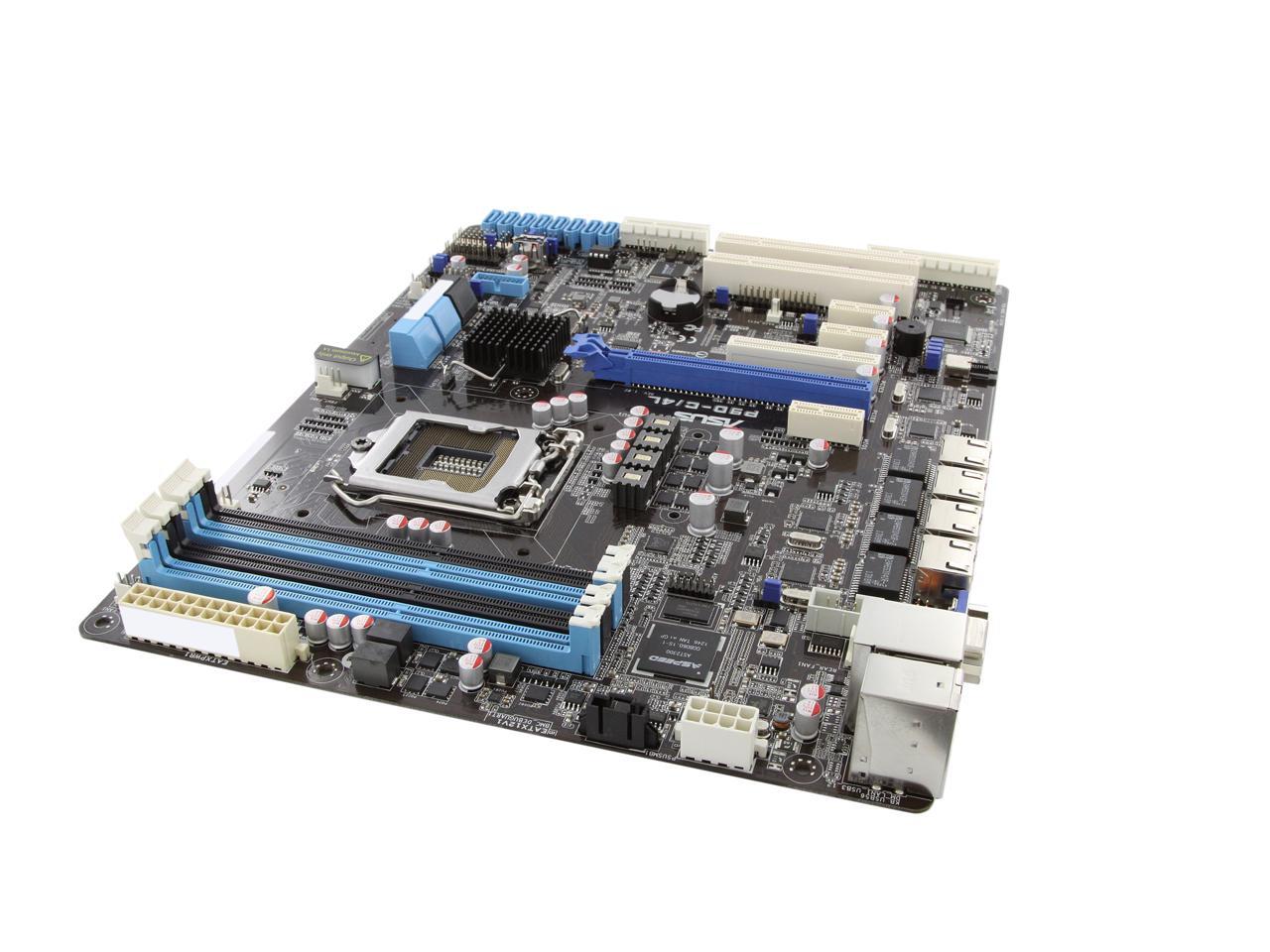

Alt view image 3 of 5 - ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

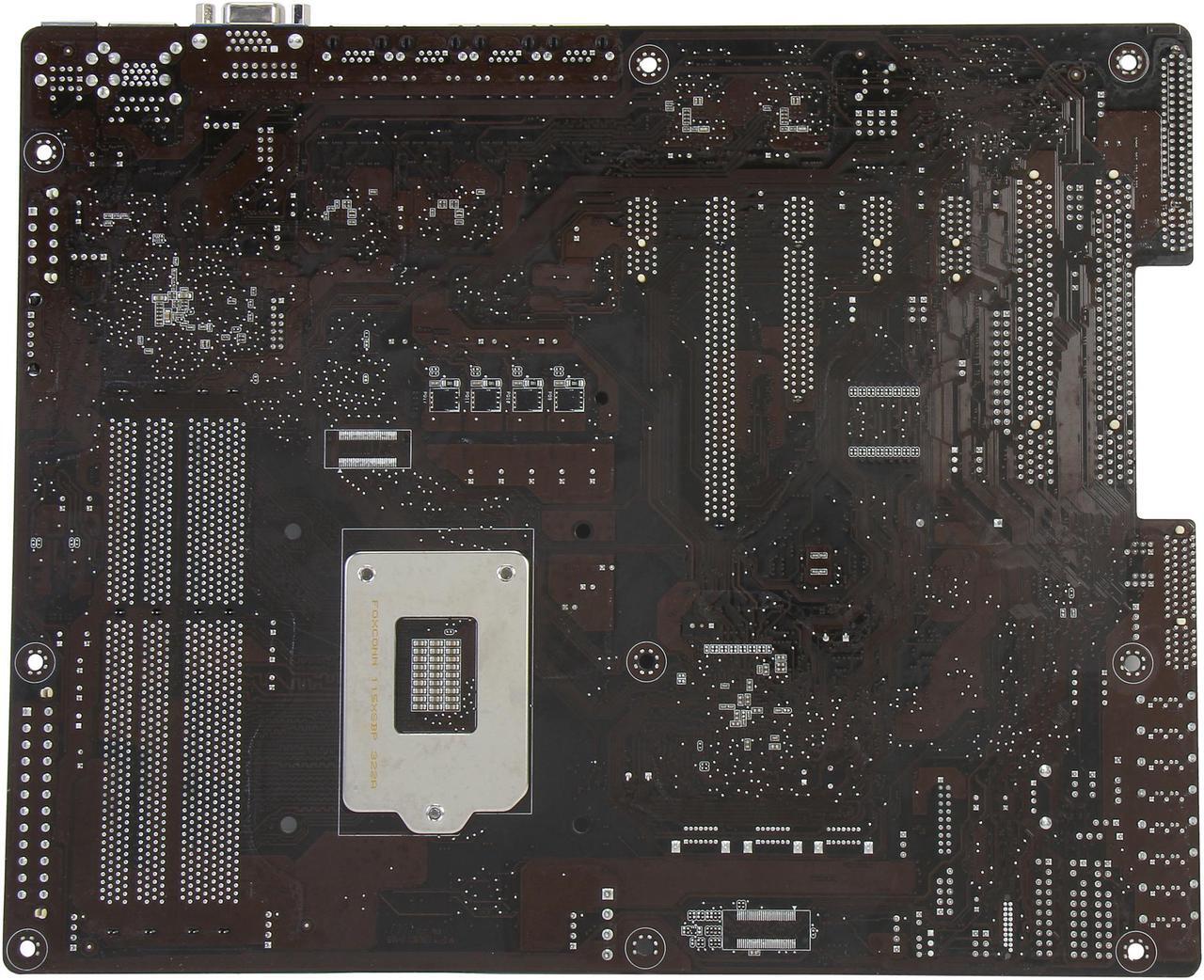

Alt view image 4 of 5 - ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

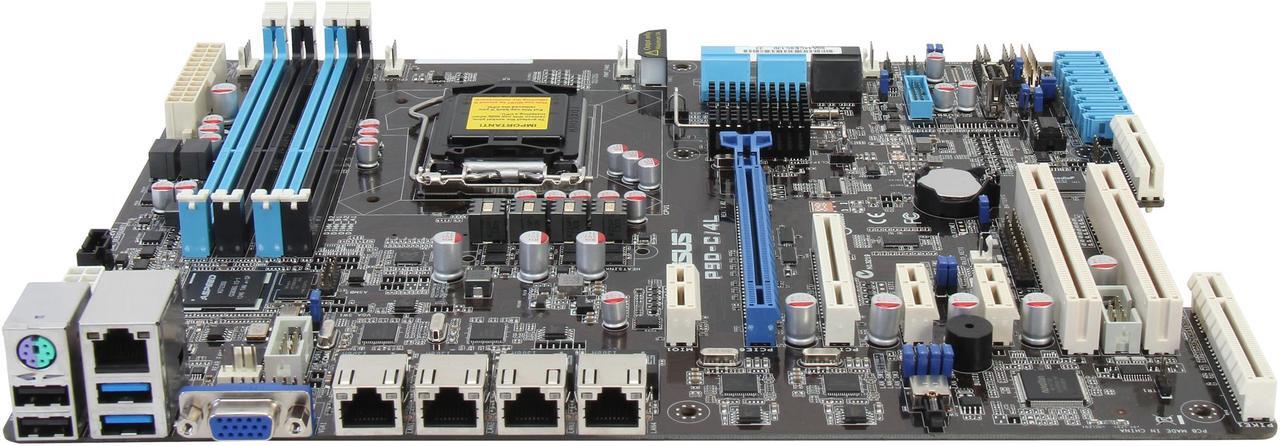

Alt view image 5 of 5 - ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

360^°

Shop All ASUS Products | Visit ProTek Store

ASUS P9D-C/4L ATX Server Motherboard LGA 1150 DDR3 1600 / 1333

Used - Very Good

1 x Socket LGA1150
Supports Intel Xeon E3-1200 v3 & 4th Gen Intel Core i3 processors
DDR3 1600 / 1333 UDIMM with ECC
4 x SATA3 & 2 x SATA2 ports
4 x RJ-45 + 1 x Mgmt LAN

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	P9D-C/4L

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	Intel Xeon processor E3-1200 v3 product family 4th Gen Intel Core i3 processors Intel Pentium processors Intel Celeron processors

Chipsets
North Bridge	Intel C224

Memory
Number of DDR3 Slots	4 x 240pin
DDR3 Standard	DDR3 1600 / 1333
Maximum Memory Supported	32GB
Channel Supported	Dual Channel
ECC Supported	Yes

Expansion Slots
PCI Express 3.0 x16	Slot Location 6: PCI-E x16 (Gen3 X8 Link)
PCI Express x8	Slot Location 5: PCI-E x8 (Gen3 X4 Link)
PCI Express x1	Slot Location 3: PCI-E x1 (Gen2 X1 Link) Slot Location 4: PCI-E x1 (Gen2 X1 Link)
PCI Slots	Slot Location 1: PCI 32-bit/33 MHz Slot Location 2: PCI 32-bit/33 MHz
Other Slots	Slot Location 7: MIO Slot for Audio card

Storage Devices
SATA	2 x SATA 3.0Gb/s + 4 x SATA 6.0Gb/s
SATA RAID	Intel Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI MegaRAID (For Linux / Windows) (Support Software RAID 0, 1, 10 )

Onboard Video
Onboard Video Chipset	Aspeed AST2300 32MB

Onboard LAN
Number of LAN	4 x Intel I210AT + 1 x Mgmt LAN
LAN Chipset	Intel I210-AT
LAN Speed	10/100/1000Mbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x VGA Port
RJ45	4 x RJ-45 + 1 x Mgmt LAN
USB 1.1/2.0	2 x USB 2.0
USB 3.0	2 x USB 3.1

Features
Features	The ASUS P9D-C/4L provides a cost-efficient serverboard without compromising on performance and scalability. It supports the latest Intel Xeon E3-1200 v3 processor family, PCI Express 3.0, and legacy PCI for diverse applications. With all these features, the P9D-C/4L fits great as part of a firewall, gateway, web / printer / mail server, and more.

Dimensions
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Additional Information
First Listed on Newegg	January 17, 2025
