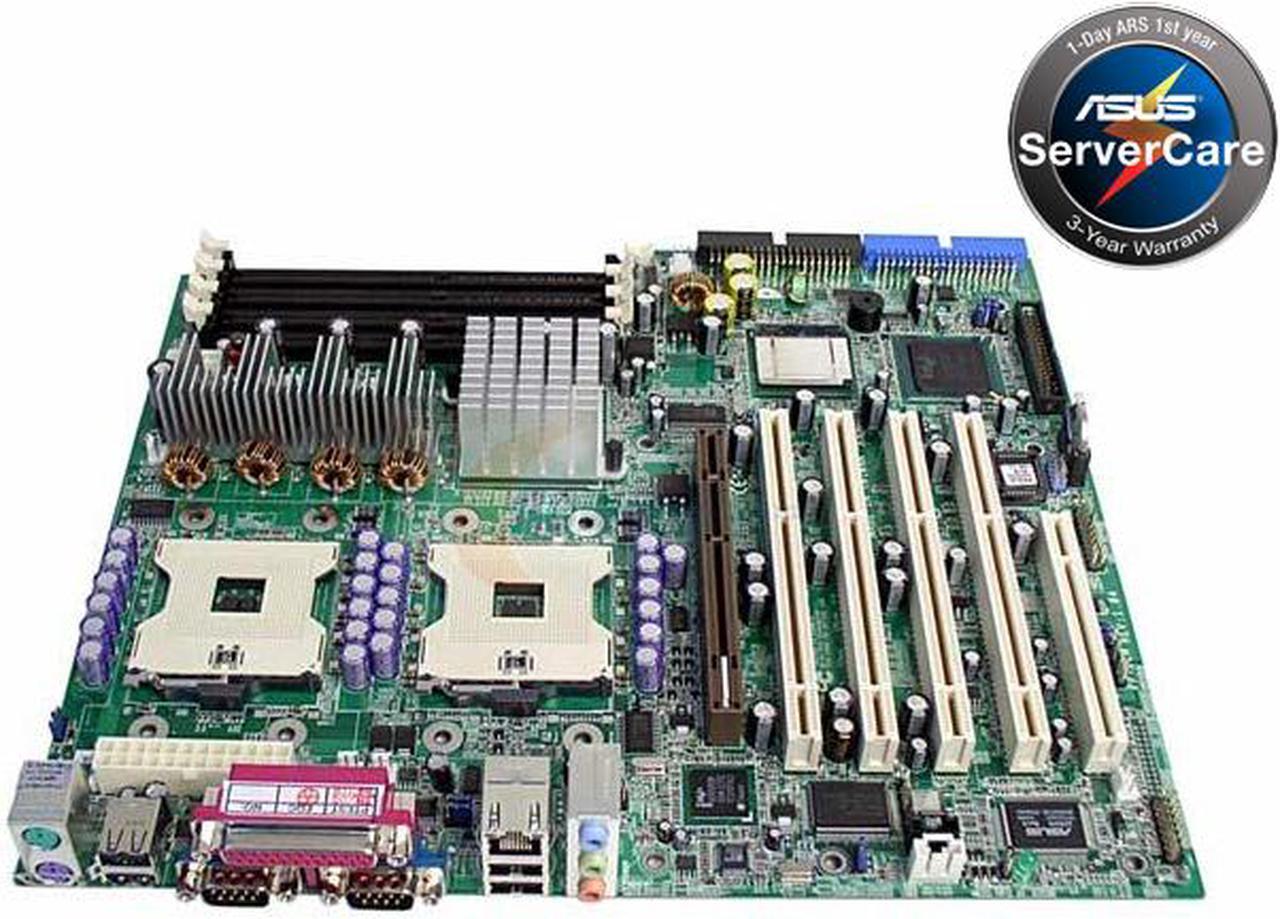

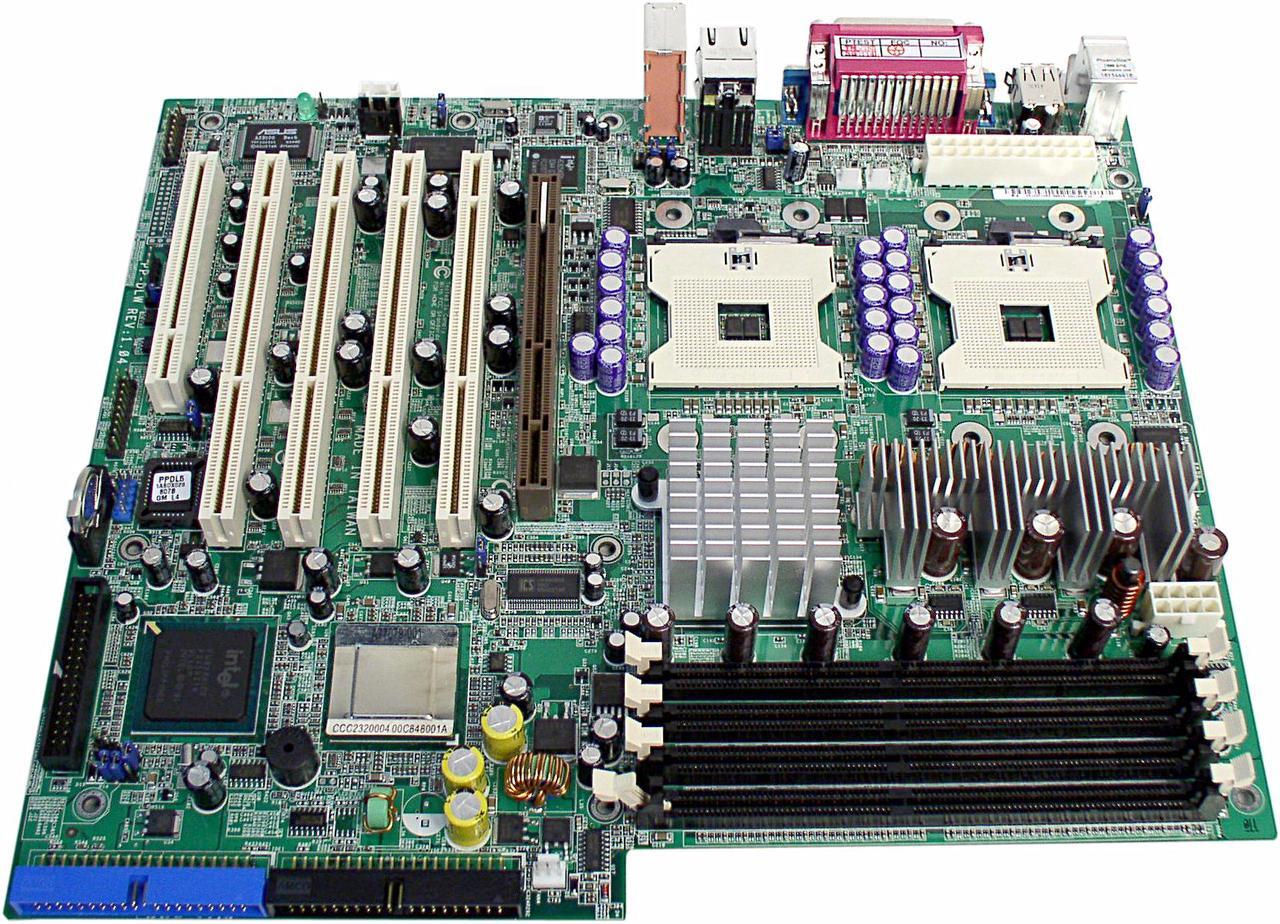

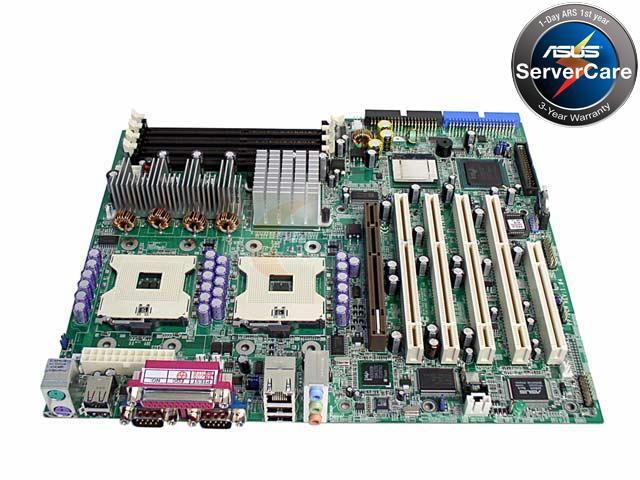

ASUS PP-DLW ATX Server Motherboard Dual 603/604 Intel E7505
- Dual 603/604
- Intel E7505 P64H2
- 4 x 184Pin
Specs
Reviews
Learn more about the ASUS PP-DLW
| Brand | ASUS |
|---|---|
| Model | PP-DLW |
| CPU Socket Type | Dual 603/604 |
|---|---|
| CPU Type | Dual Intel Xeon |
| System Bus | 533/400 MHz |
| North Bridge | Intel E7505 |
|---|---|
| South Bridge | Intel ICH4 |
| Other Chipset | P64H2 |
| Number of DDR Slots | 4 x 184Pin |
|---|---|
| DDR Standard | DDR 266 (PC 2100) |
| Maximum Memory Supported | 8GB |
| ECC Supported | Yes |
| Registered | Yes |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI-X Slots (64-bit 133MHz) | 1 |
| PCI-X Slots (64-bit 66MHz) | 3 |
| PCI Slots | 1 x PCI Slot |
| PATA | 2 x ATA 100 4 Dev. Max |
|---|
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Intel 82540EM |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| PS/2 | 2 |
|---|---|
| COM | 2 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Features | Throttling mode support (System will automatically speed down while CPU is overheat) Temperature, fan and voltage monitoring Dual fuction power switch Wake-Up support ACPI ready Concurrent PCI Chassis intrusion detection Smart BIOS |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12" x 10.5" |
| Date First Available | February 02, 2004 |
|---|
