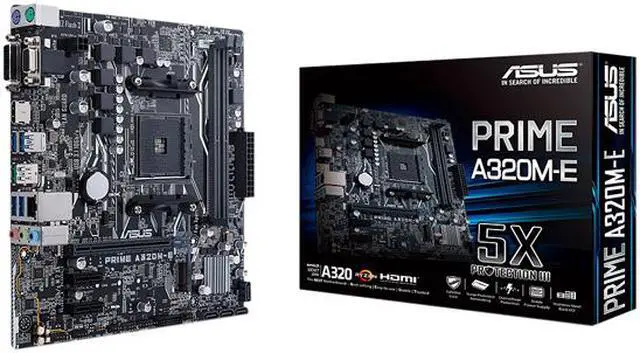

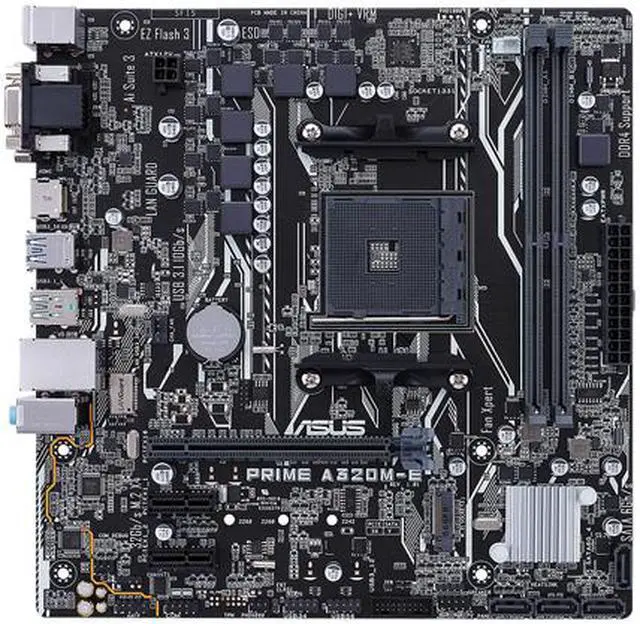

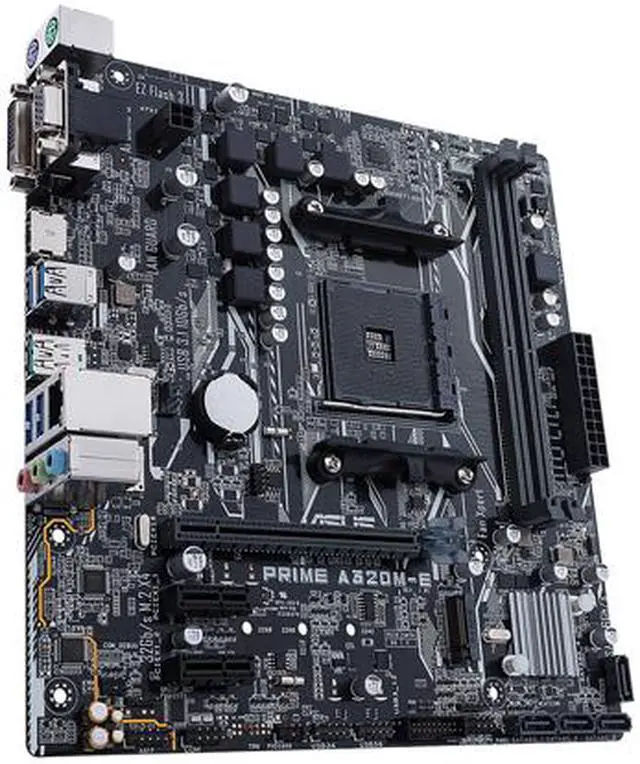

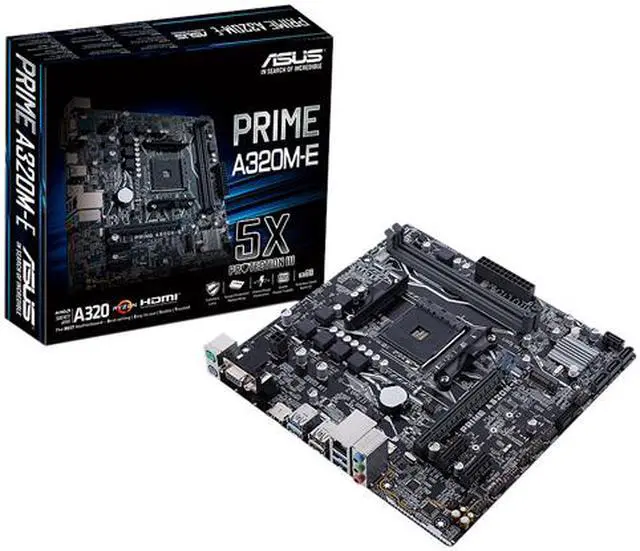

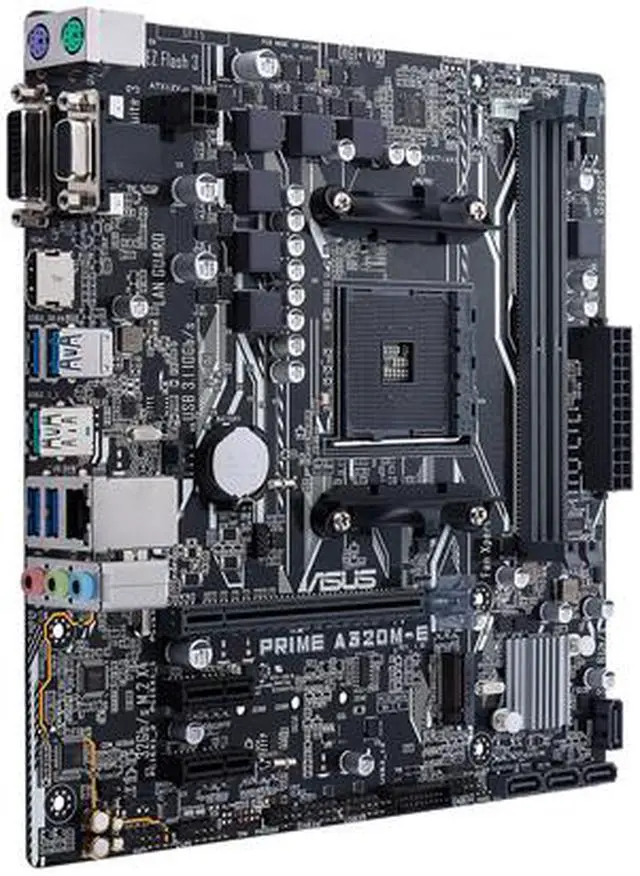

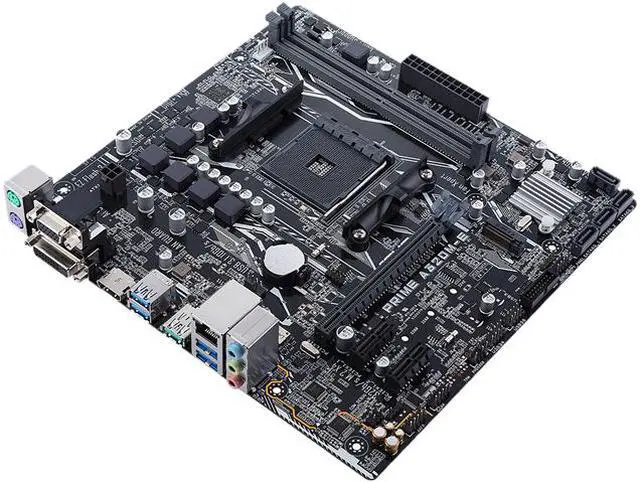

    ASUS PRIME A320M-E AM4 AMD A320 SATA 6Gb/s USB 3.1 HDMI Micro ATX AMD Motherboard

    Used - Very Good Product Type
    • AMD A320
    • AMD AM4 Socket for AMD Ryzen/ 7th Generation A-series/Athlon Processors
    • AMD Ryzen Processors
    • DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133
    • AMD 7th Generation A-series/ Athlon Processors
    • DDR4 2400/ 2133
    • * Hyper DIMM support is subject to the physical characteristics of individual CPUs
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASUS PRIME A320M-E

    Model
    Brand ASUS
    Model PRIME A320M-E
    Supported CPU
    CPU Socket Type AM4
    CPU Type AMD AM4 Socket for AMD Ryzen/ 7th Generation A-series/Athlon Processors
    Chipsets
    Chipset AMD A320
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard AMD Ryzen Processors
    DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133

    AMD 7th Generation A-series/ Athlon Processors
    DDR4 2400/ 2133

    * Hyper DIMM support is subject to the physical characteristics of individual CPUs
    Maximum Memory Supported 32GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 AMD Ryzen Processors
    1 x PCIe 3.0/2.0 x16 (x16 mode)

    AMD 7th Generation A-series/Athlon Processors
    1 x PCIe 3.0/2.0 x16 (x8 mode)
    PCI Express x1 2 x PCIe 2.0 x1
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s port(s), gray
    M.2 AMD Ryzen Processors:
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)

    AMD 7th Generation A-series/Athlon Processors:
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
    SATA RAID 0/1/10
    Onboard Video
    Onboard Video Chipset Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU *1
    Multi-VGA output support: HDMI/DVI-D/RGB ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 2048MB

    *1: AMD Ryzen Processor does not support
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 8 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8111H
    Max LAN Speed 1Gbps

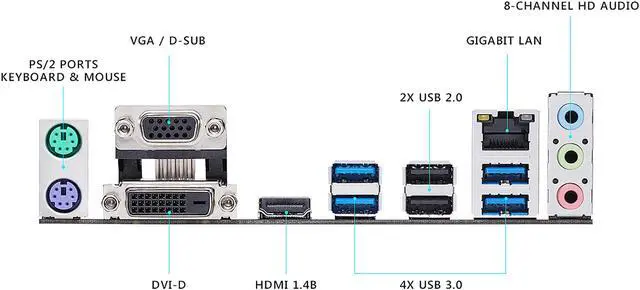

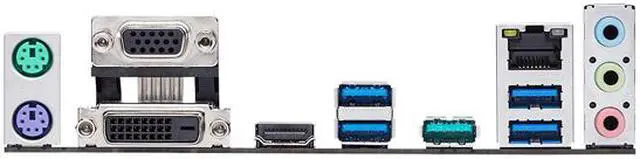

    Rear Panel Ports
    PS/2 1 x PS/2 keyboard (purple)
    1 x PS/2 mouse (green)
    Video Ports 1 x DVI-D
    1 x D-Sub
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.1 1 x USB 3.1 Gen 2 (teal blue)
    4 x USB 3.1 Gen 1 (blue)
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    Other Connectors 1 x COM port(s) connector(s)

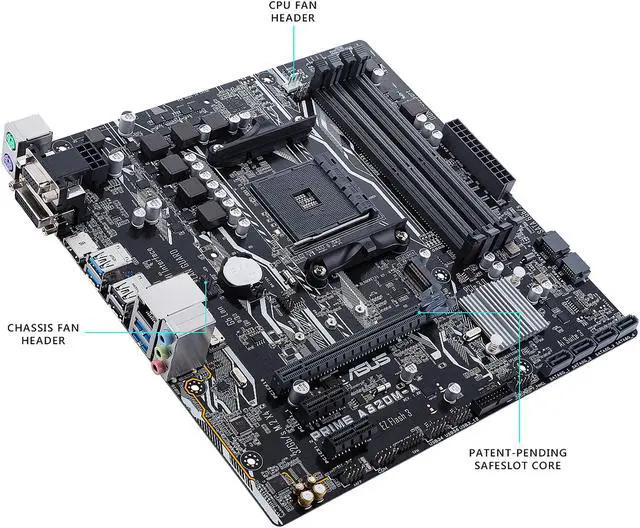

    1 x CPU Fan connector(s) (1 x 4-pin)
    1 x Chassis Fan connector(s) (1 x 4-pin)
    1 x S/PDIF out header(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)
    1 x Clear CMOS jumper(s)
    1 x Speaker connector
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 8.9" x 8.7"
    Power Pin 1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    Features
    Features Special Features:
    ASUS 5X Protection III:
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 6 Phase digital power design
    ASUS Exclusive Features:
    - AI Suite 3
    - Ai Charger
    ASUS Quiet Thermal Solution:
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert
    ASUS EZ DIY:
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    ASUS Q-Design:
    - ASUS Q-Slot
    - ASUS Q-DIMM

    Operating System Support:
    Windows 10, 64-bit

    BIOS:
    128MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
    Packaging
    Package Contents Accessories:
    User's manual
    I/O Shield
    2 x SATA 6Gb/s cable(s)
    1 x M.2 Anchor
    1 x Supporting DVD
