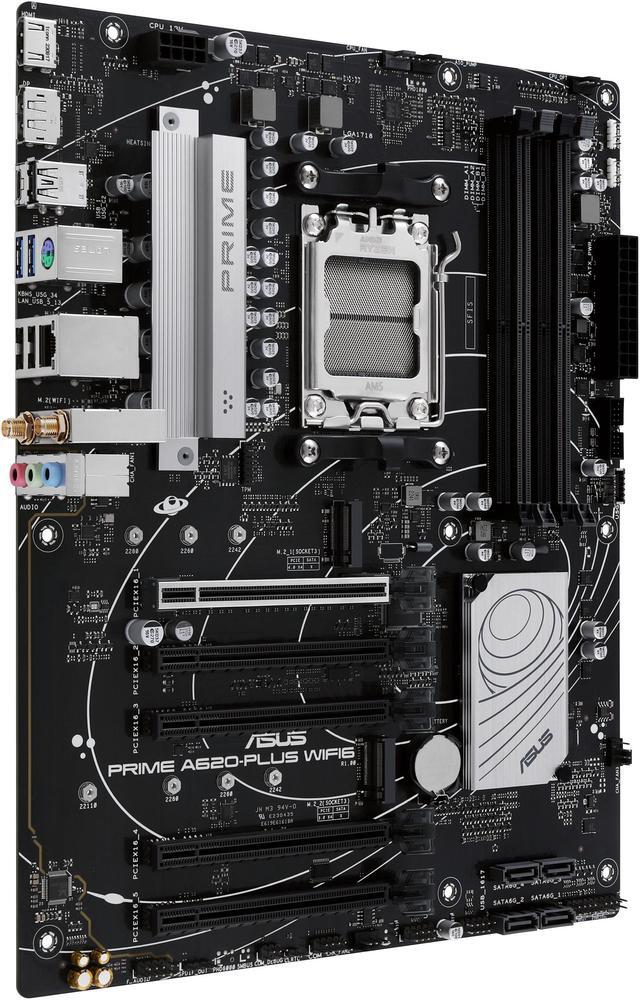

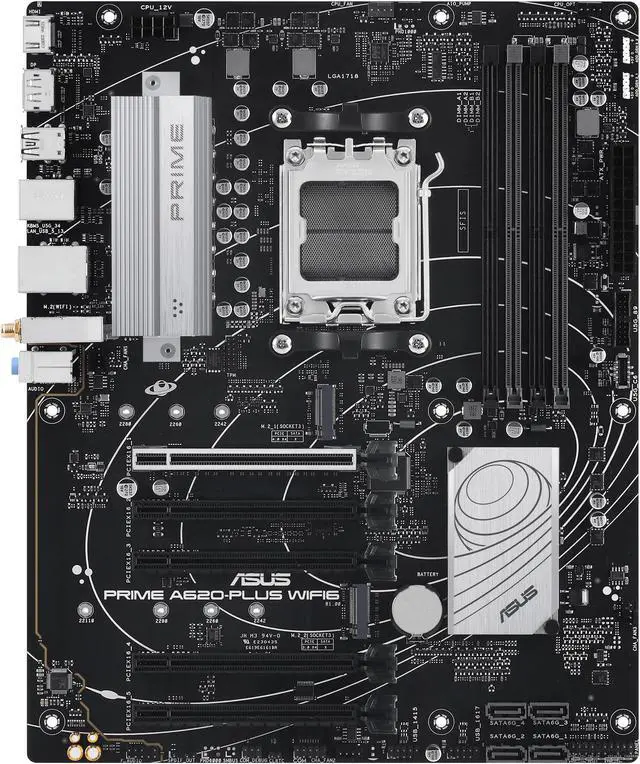

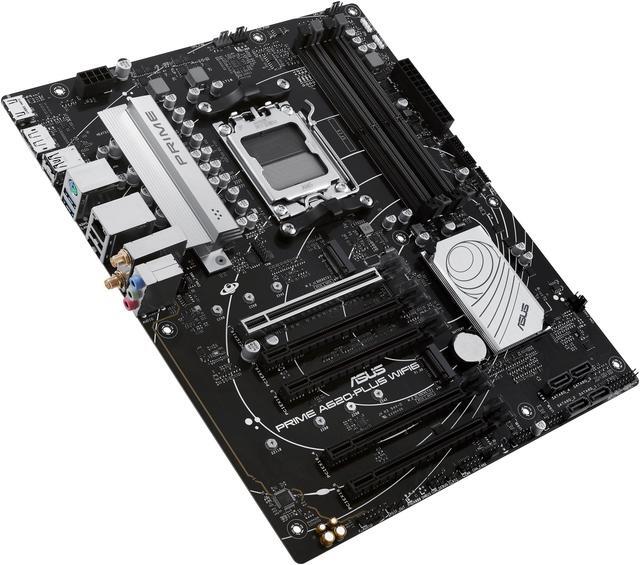

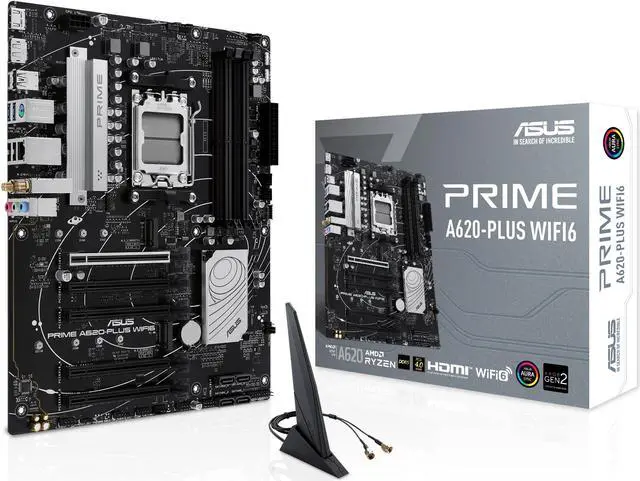

Main image of PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Alt view image 2 of 6 - PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Alt view image 3 of 6 - PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Alt view image 4 of 6 - PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Alt view image 5 of 6 - PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Alt view image 6 of 6 - PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Shop All ASUS Products

PRIME A620-PLUS WIFI6 AMD A620 AM5 ATX motherboard, DDR5, PCIe 4.0 support, dual M.2 slots, WiFi 6, DisplayPort/HDMI™, Rear & Front USB 5Gbps Type-C®, SATA 6 Gbps, Two-Way AI Noise Cancelation, Aura Sync

Be the first to review this product...

AM5 Socket for AMD Ryzen Desktop Processors
Ultrafast Connectivity: PCIe 4.0, dual M.2 slots, WiFi 6, Realtek 1Gb Ethernet, Rear & Front USB 5Gbps Type-C
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
CEC Tier II Ready

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	PRIME A620-PLUS WIFI6
Part Number	90MB1HS0-MVAAY0

Supported CPU
CPU Socket Type	AM5
CPU Type	AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Chipsets
Chipset	AMD A620 Chipset

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16
PCI Express 3.0 x16	3 x PCI Express 3.0 x16
PCI Express x16	AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) 2 x PCIe 3.0 x16 slots (support x1 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* 2 x PCIe 3.0 x16 slots (support x1 mode)*** AMD A620 Chipset 2 x PCIe 3.0 x16 slots (support x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). PCIe x16_2 and PCIe x16_3 share bandwidth with M.2_2. * Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. M.2_2 shares bandwidth with PCIe x16_2 and PCIe x16_3. M.2_2 will run x2 mode when either of the PCIE x16_2/3 slots is occupied. * Specifications vary by CPU types.
M.2	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4/x2 mode)*
SATA RAID	AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Onboard Audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
Max LAN Speed	1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless LAN	Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band
Bluetooth	Bluetooth® v5.3* * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Rear Panel Ports

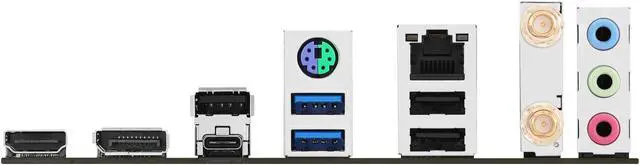

Back I/O Ports	1 x USB 5Gbps port (1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 20-3 pin System Panel header with chassis intrude function

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Software Feature
Windows 11	Windows® 11, Windows® 10 64-bit

Features
Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Additional Information
Date First Available	May 07, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
